316 316L Duplex Stainless Steel Sheet , Brushed Hot Rolled Steel Panels

316 316L Duplex Stainless Steel Sheet , Brushed Hot Rolled Steel Panels
316 316L Duplex Stainless Steel Sheet , Brushed Hot Rolled Steel Panels 316 316L Duplex Stainless Steel Sheet , Brushed Hot Rolled Steel Panels 316 316L Duplex Stainless Steel Sheet , Brushed Hot Rolled Steel Panels

Large Image :  316 316L Duplex Stainless Steel Sheet , Brushed Hot Rolled Steel Panels

Product Details:
Place of Origin: Shanghai ,Shanxi
Brand Name: BAOSTEEL , TISCO ,HONGWANG ,LISCO
Certification: ISO ,SGS,BV
Model Number: 300 Series 316 316L
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Export Package
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 T/Month
Detailed Product Description
Name: Duplex Stainless Steel Sheet Grade: 316 316L
Width: 1000mm,1219mm,1250mm,1500mm Color: Brushed
Standard: ASTM/JIS/GB Length: 6m Or As Customized
High Light:

mirror finish stainless steel sheet

,

hairline finish stainless steel sheet

316 316L Duplex Stainless Steel Sheet , Brushed Hot Rolled Steel Panels​



Duplex Stainless Steel Sheet Manufacturing technique

2B
After cold rolled, the products are treated by heat treatment, pickling or similiar methods, skin passing to obtain proper surface brightness.
2D
After cold rolled, the products are treated by heat treatment, pickling or similiar methods, skin passing with rough roll to obtain surface with certain roughness.
HL
Products are treated by polishing with proper abrasive substance to obtain continuous lines.
No.4
Products are treated by polishing with proper abrasive substance(grain size 150-320) according to GB2477.
BA
After cold rolled, the products are treated by bright annealing method to obtain surface brightness.
No.8
Products are treated by polishing with proper abrasive substance. The product have excellent brightness and prefer reflexivity can to be the mirror.
No.1
After hot rolled, the products are treated by heat treatment, pickling or similiar methods, skin passing to obtain proper surface brightness.

Duplex Stainless Steel Sheet Chemical Properties:

  C Mn Si P S Cr Mo Ni N
316
(S31600)
0.08
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max
316L
(S31603)
0.03
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max

Duplex Stainless Steel Sheet Mechanical Properties:

Grade Tensile Strength
ksi (min)
Yield Strength
0.2% ksi (min)
Elongation % Hardness (Brinell) MAX Hardness
(Rockwell B) MAX
316
(S31600)
75 30 40 217 95
316L
(S31603)
70 25 40 217 95



Duplex Stainless Steel Sheet Applications:



Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim
Heat exchangers

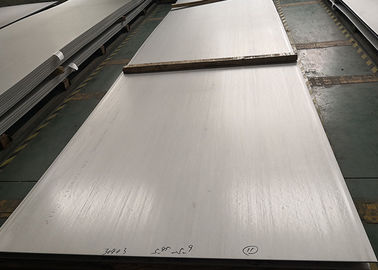

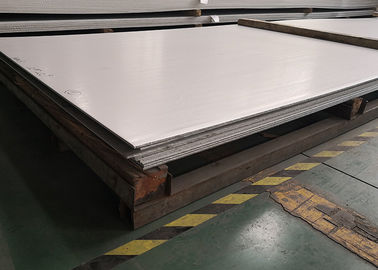

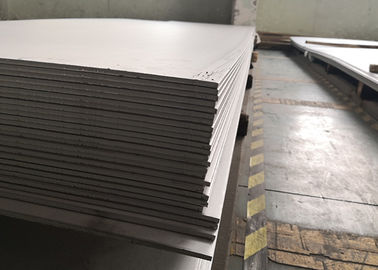

Duplex Stainless Steel Sheet Pictures
