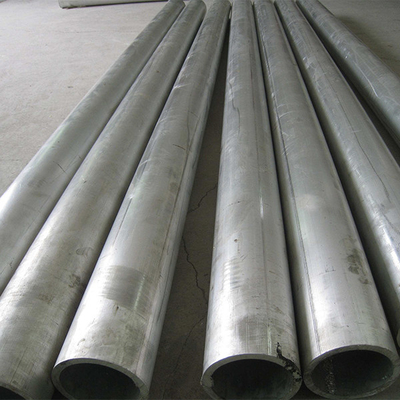

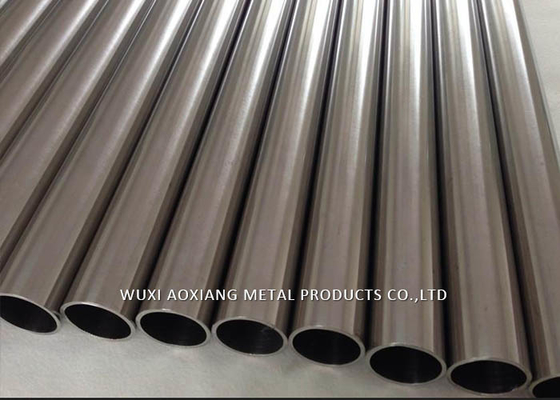

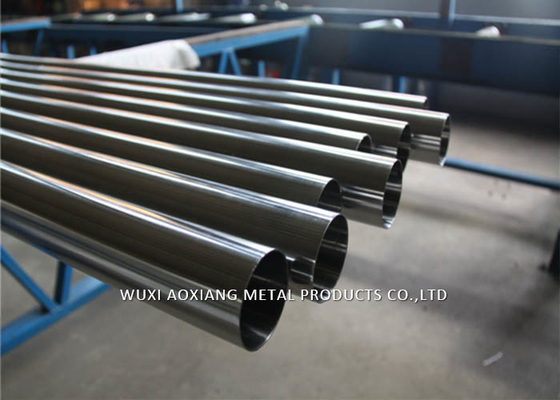

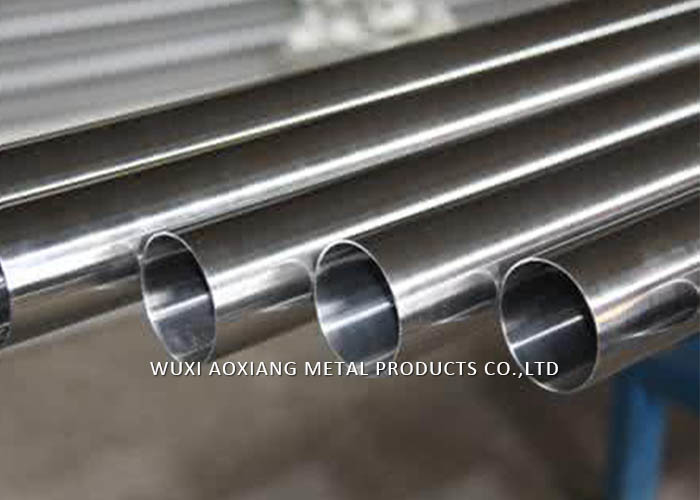

Polished Stainless Steel Welded Tube Thickness 0.3 - 4.5MM Sanitary Pipe

Polished Stainless Steel Welded Tube Thickness 0.3 - 4.5MM Sanitary Pipe

Large Image :  Polished Stainless Steel Welded Tube Thickness 0.3 - 4.5MM Sanitary Pipe

Product Details:
Place of Origin: WUXI,WENZHOU
Brand Name: AOXIANG
Certification: BV,SGS
Model Number: 201 304 316
Payment & Shipping Terms:
Minimum Order Quantity: 2 ton
Price: Negotiation
Packaging Details: Plastic bags
Delivery Time: 5-10 working days
Payment Terms: D/A, L/C, T/T
Supply Ability: 1500ton/Month
Detailed Product Description
Technolgy: Welded Thickness: 0.16-3.0mm
OD: 8-140mm Length: 6m Or As Customized
Grade: 201 304 316 Finish: Bright
High Light:

welded stainless steel pipe

,

duplex stainless steel pipe

Sanitary Pipe 201 304 316 Erw Welding Line Type Color Stainless Steel Tube



Products Details



Stainles steel is a production which not easy rust,acid resistance and corrosion resistance,so it is widely used in light industry,heavy industry,daily necessities and the decoration industry.my company long-term supply stainless steel porducts including:stainless steel sheet,stainless steel coil and stainless steel tube



Chemical composition(WT%)



Material C Si Mn P S Cr Ni
201 ≤0.12 ≤0.75 9.5-12.5 ≤0.045 ≤0.03 13-16 0.8-1.5
304 ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤0.03 18-19 8-10.5
316 ≤0.08 ≤1.00 ≤2.0 ≤0.035 ≤0.03 10-14 16-18.5





Type stainless steel pipe
Thinckness 0.3-4.5mm
Outer diameter 12-220mm
Length 6m or as customer's requirement
Finish Polished, Pickled
Technology welded
Standard JIS, AISI, ASTM, GB, DIN, EN ,etc.
MOQ 1 Ton
Application decoration, industry, etc.
Certificate SGS
Packaging Standard exporting packing
Trade terms FOB,CFR,CIF,CNF
Delivery time Within 10 working days after receiving your deposit
Payment terms 1. 30%T/T in advance, the balance against the B/L copy
2. 30%T/T in advance, the balance against L/C original at sight
3. 100%L/C at sight



DIMENSION



Specifications of stainless steel decorative pipe (mirror)
Standard 0.6 0.7 0.8 0.9 1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0 4.5
Actual 0.32 0.40 0.50 0.60 0.70 0.90 1.10 1.40 1.90 2.40 2.90 3.40 3.90
Φ 12.3 0.57 0.71 0.88 1.05 1.21 1.53 1.84
Φ 12.7 0.59 0.74 0.91 1.09 1.26 1.91 1.91
Φ 15.3 0.72 0.89 1.11 1.32 1.53 2.33 2.33
Φ 16.0 0.75 0.93 1.16 1.38 1.60 2.45 2.45 3.06
Φ 17.2 0.81 1.00 1.25 1.49 1.73 2.19 2.65 3.31
Φ 18 0.85 1.05 1.31 1.56 1.81 2.30 2.78 3.47
Φ 19 0.89 1.11 1.38 1.65 1.91 2.43 2.94 3.68 4.86
Φ 20.2 0.95 1.18 1.47 1.76 2.04 2.60 3.14 3.93 5.20
Φ 22 1.04 1.29 1.61 1.92 2.23 2.84 3.43 4.31 5.71
Φ 25 1.18 1.47 1.83 2.19 2.54 3.24 3.93 4.94 6.56
Φ 28 1.32 1.65 2.06 2.46 2.86 3.65 4.42 5.57 7.41
Φ 29.2 1.38 1.72 2.14 2.57 2.98 3.81 4.62 5.82 7.75
Φ 31.8 1.51 1.88 2.34 2.80 3.25 4.16 5.04 6.36 8.49 10.55 12.53
Φ 35.8 1.70 2.12 2.64 3.16 3.67 4.69 5.70 7.20 9.63 11.98 14.26
Φ 38 1.80 2.25 2.80 3.35 3.90 4.99 6.07 7.66 10.25 12.77 15.22
Φ 42   2.49 3.10 3.71 4.32 5.52 6.72 8.50 11.39 14.21 16.95
Φ 48   2.85 3.55 4.25 4.95 6.34 7.71 9.75 13.09 16.36 19.55
Φ 50.8   3.01 3.76 4.50 5.24 6.71 8.17 10.34 13.89 17.36 20.76 24.09
Φ 60   3.56 4.45 5.33 6.20 7.95 9.68 12.26 16.50 20.66 24.75 28.77
Φ 63     4.67 5.60 6.52 8.35 10.18 12.89 17.35 21.74 26.05 30.29
Φ 70       6.22 7.25 9.29 11.32 14.36 19.34 24.25 29.09 33.85
Φ 76       6.76 7.88 10.10 12.31 15.61 21.04 26.40 31.69 36.90 42.03
Φ 80       7.12 8.30 10.64 12.97 16.45 22.18 27.84 33.42 38.93 44.36
Φ 85       7.57 8.82 11.31 13.79 17.49 23.60 29.63 35.59 41.47 47.28
Φ 88.9       7.92 9.23 11.84 14.43 18.31 24.71 31.03 37.28 43.45 49.55
Φ 101.6       9.06 10.56 13.55 16.52 20.97 28.32 35.59 42.78 49.91 56.96
Φ 108         11.23 14.41 17.58 22.31 30.13 37.88 45.56 53.16 60.69
Φ 114         11.86 15.21 18.56 23.56 31.84 40.04 48.16 56.21 64.18
Φ 127           16.96 20.70 26.28 35.53 44.70 53.80 62.82 71.76
Φ 133           17.77 21.69 27.54 37.23 46.85 56.40 65.87 75.26
Φ 141           18.85 23.00 29.21 39.51 49.72 59.86 69.93 79.92
Φ 159             25.96 32.98 44.62 56.18 67.67 79.08 90.42
Φ 168               34.86 47.17 59.41 71.57 83.65 95.66
Φ 219               45.54 61.66 77.70 93.68 109.57 125.39
Standard 0.6 0.7 0.8 0.9 1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0 4.5
Actual 0.32 0.40 0.50 0.60 0.70 0.90 1.10 1.40 1.90 2.40 2.90 3.40 3.90
