| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | TISCO ,BAOSTEEL |
| Certification: | ISO,BV |
| Model Number: | 2507/1.4410 |
| Minimum Order Quantity: | 2 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement. |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 1000 ton/ Month |
| Technology: | Cold And Hot Rolled | Type: | Sheet,Rod,Pipe,Coil |
|---|---|---|---|
| Item: | Stainless Steel | Color: | Natural |
| Shipping: | Air,Sea | Market: | USA ,AUE,ZA Etc |
| High Light: | seamless square steel tubing,ss 304 seamless pipe |
||

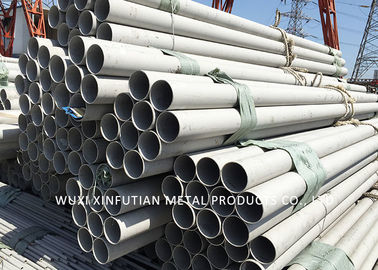

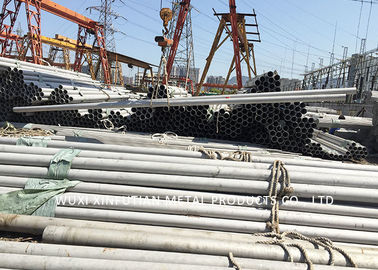

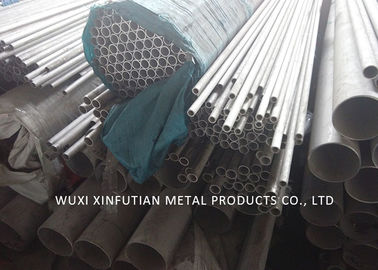

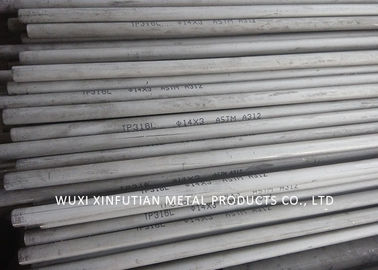

Duplex Stainless Steel Seamless Industrial Pipe Diameter 3.0-500mm 2507
Standards
ASTM/ASME:A240 - UNS S32750
EURONORM:1.4410 - X2 Cr Ni MoN 25.7.4
AFNOR:Z3 CN 25.06 Az
DIN/EN 1.4410,ASME SA-240
1. Products Details
WUXI XINFUTIAN METAL PRODUCTS CO., LTD inventory now includes Duplex 2507, which is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel. This alloy is designed for applications which require exceptional strength and corrosion resistance; examples include applications in chemical processing, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity and a low coefficient of thermal expansion. The high chromium, molybdenum, and nickel levels provide excellent resistance to pitting, crevice, and general corrosion.
Chemical Properties
| C | Cr | Ni | Mo | N | Others |
|---|---|---|---|---|---|
| 0.020 | 25 | 7 | 4.0 | .27 | S=0.001 |
Mechanical Properties
1.2507 duplex stainless steel pipe mechanical properties at room temperature
Pipe:thickness≤20mm ；δb/MPa:800-1000 ,δ0.2/MPa:≥550 ,δ5/%:≥25 ,(HV):290
2.2507 duplex stainless steel plate in the mechanical properties of room temperature of -200 ℃ :
/℃ δb/MPa
Room Temperature ≥530
Sheet 100 ≥450
200 ≥400
3.Mechanical properties of 2507 large-diameter seamless tube
Dia*thickness δb/MPa δ0.2/MPa δ5/% (HV)
273.0mm×4.19mm 894 644 40 284
323.9mm×4.57mm 858 662 45 270
406.4mm×4.74mm 854 657 41 272
2. Corrosion
General Corrosion
1). high chromium and molybdenum content of 2507 makes it extremely resistant to uniform corrosion by organic acids like formic and acetic acid.
2). provides excellent resistance to inorganic acids, especially those containing chlorides.
3). can be used in dilute hydrochloric acid.
4). Pitting need not be a risk in the zone below the borderline in this figure, but crevices must be avoided.
Intergranural Corrosion
1). Low carbon content greatly lowers the risk of carbide precipitation at the grain boundaries during heat treatment.
2). Is highly resistant to carbide-related intergranular corrosion.
Stress Corrosion Cracking
1). Duplex structure of 2507 provides excellent resistance to chloride stress corrosion cracking (SCC).
2). Superior to 2205 in corrosion resistance and strength.
3). 2507 is especially useful in offshore oil and gas applications and in wells with either naturally high brine levels or where brine has been injected to enhance recovery
3. Payment ,Shipping
| MOQ | 1 Ton |
| Price Term | FOB |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 20-30 days after receiving deposit by T/T or L/C. |
| Sample | Samples free and express charges bear by you |
