| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | TISCO ,BAOSTEEL |
| Certification: | ISO,BV |
| Model Number: | 904L /1.4539 |
| Minimum Order Quantity: | 2 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement. |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 2000 Ton /Month |
| Technology: | Cold And Hot Rolled | Type: | Sheet,Rod,Pipe,Coil |
|---|---|---|---|
| Item: | Stainless Steel | Color: | Natural |
| Shipping: | Sea | Material: | 904L/ 1.4539 |
| High Light: | 316 stainless steel strip,polished stainless steel strips |
||

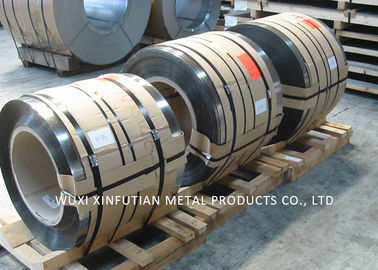

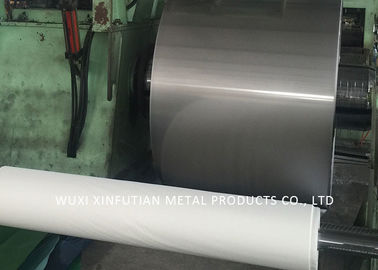

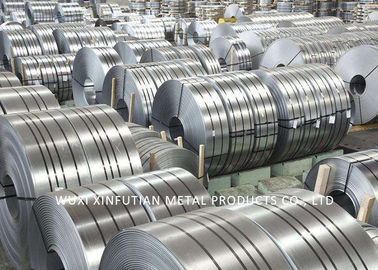

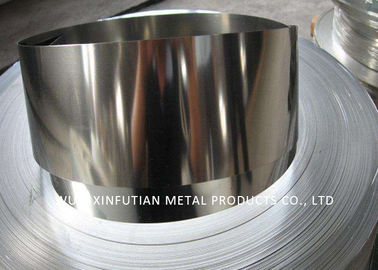

904L / 1.4539 Austenite SS Strip Coil Thickness1.5mm For Automotive Systems
1. Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| 904L |
min. max. |
- 0.02 |
- 2 |
- 1 |
- 0.045 |
- 0.035 |
19 23 |
4 5 |
23 28 |
1 2 |
Proprerties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 904L | 490 | 220 | 36 | 70-90 typical | 150 |
2. Features
Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.
3. Fabrication
Grade 904L stainless steels are high purity steels with low sulphur content. They can be machined using any standard methods. These grades can be readily bent to a small radius under cold conditions. Although subsequent annealing is not required in most cases, it should be carried out when the fabrication is performed under severe stress corrosion cracking conditions.
4. Application
* Petroleum, petrochemical equipment, such as petrochemical equipment in the reactor.
* Power plant flue gas desulfurization equipment, the main parts are: tower tower, flue, file door
* Seawater treatment plant, seawater heat exchanger, paper industry equipment, sulfuric acid, nitric acid equipment, acid, pharmaceutical industry
* Pharmaceuticals: centrifuges, reactors and more.
* Plant foods: soy sauce cans, cooking wine, salt shakers, equipment and dressings.
