200 / 300 Series Grade Stainless Steel Welded Tubes Railing End 3 Inch

China 200 / 300 Series Grade Stainless Steel Welded Tubes Railing End 3 Inch supplier
200 / 300 Series Grade Stainless Steel Welded Tubes Railing End 3 Inch supplier 200 / 300 Series Grade Stainless Steel Welded Tubes Railing End 3 Inch supplier

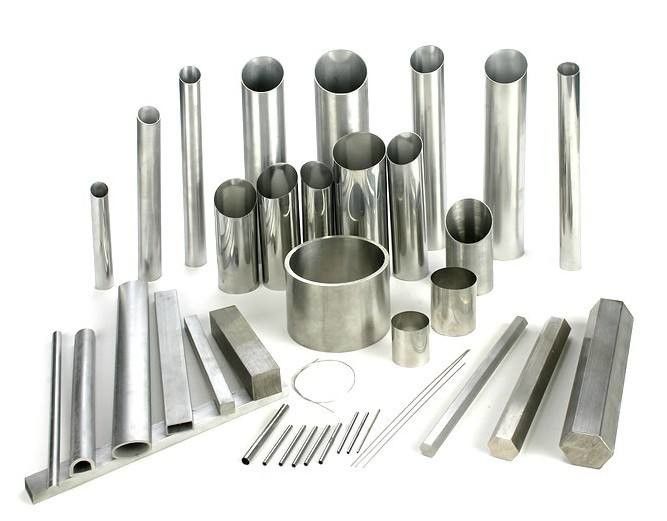

Large Image :  200 / 300 Series Grade Stainless Steel Welded Tubes Railing End 3 Inch

Product Details:

Place of Origin: WUXI,WENZHOU
Brand Name: XINFUTIAN
Certification: BV,SGS
Model Number: 200,300

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Price: Negotiation
Packaging Details: Plastic bags
Delivery Time: 5-7 working days
Payment Terms: D/A, L/C, T/T
Supply Ability: 1000 ton/Month
Contact Now
Detailed Product Description
Packing: Standard Sea-worthy Packing Name: Large Diameter Stainless Steel Welded Tube Railing End 3 Inch
Finish: Brush Polish,2B BA Matte Mirror Grade: 200/300series
Shape: Round Section,Round / Square / Rectangular / Oval Etc Surface: BA,HL,2B,8K,Black Pickled HL Brushed Polished



Large Diameter Stainless Steel Welded Tube Railing End 3 Inch





Article
Cold Draw Seamless Stainless Steel Pipe Tube 304 304L 316 316L
Type
Seamless
Grade
304, 316L, 321, 310S, 1.4301, 1.4307, 1.4404, S31803, S32750, 904L, Monel 400, Inconel 800
Standard
AISI, ASTM, EN, GB, JIS
Outer diameter
6mm above
Thickness
0.25 above
Application
Petroleum, Auto
Packing
Bundles, seaworthy wooden pallets or wooden cases.
With or without edge protector, steel hoop and seals, in 20' or 40' container ,or as your needs.
Payment
Small quantity (within total $20000.00): T/T at sight,
30% in advance ,
70% after receiving the B/L
Large quantity : L/C at sight






What is the details specfiction and size of Stainless steel pipe?



Normal Pipe Size
Outside Diameter

Normal Wall Thickness
NPS
DN
OD

SCH10s
SCH40s
STD
SCH40
XS
SCH80s
1/8
6
10.3
-
1.24
1.73
1.73
1.73
2.41
2.41
1/4
8
13.7
-
1.65
2.24
2.24
2.24
3.02
3.02
3/8
10
17.1
-
1.65
2.31
2.31
2.31
3.2
3.2
1/2
15
21.3
1.65
2.11
2.77
2.77
2.77
3.73
3.73
3/4
20
26.7
1.65
2.11
2.87
2.87
2.87
3.91
3.91
1
25



33.4
1.65
2.77
3.38
3.38
3.38
4.55
4.55
1 1/4
32
42.2
1.65
2.77
3.53
3.53
3.53
4.85
4.85
1 1/2
40
48.3
1.65
2.77
3.68
3.68
3.68
5.08
5.08
2
50
60.3
1.65
2.77
3.91
3.91
3.91
5.54
5.54
2 1/2
65
73
2.11
3.05
5.16
5.16
5.16
7.01
7.01
3
80
88.9
2.11
3.05
5.49
5.49
5.49
7.62
7.62
3 1/2
90
101.6
2.11
3.05
5.74
5.74
5.74
8.08
8.08
4
100
114.3
2.11
3.05
6.02
6.02
6.02
8.56
8.56
5
125
141.3
2.77
3.4
6.55
6.55
6.55
9.53
9.53
6
150
168.3
2.77
3.4
7.11
7.11
7.11
10.97
10.97

200 / 300 Series Grade Stainless Steel Welded Tubes Railing End 3 Inch
