Application: | Sanitory ,Food Industry,medical | Steel Grade: | 300 Series,200 Series,400 Series |
---|---|---|---|
Standard: | ASTM,JIS,AISI,DIN,EN | Certification: | ISO,BV,CE,CO |
Welding Line Type: | Round ,square,rectangle | Product Name: | Sanitory Grade Welded Pipe TP316l |
High Light: | stainless steel rectangular tubing,duplex stainless steel pipe |

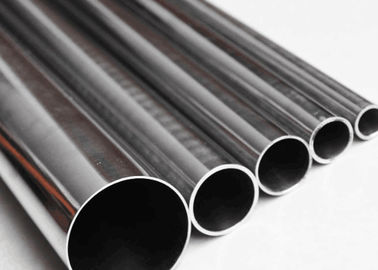

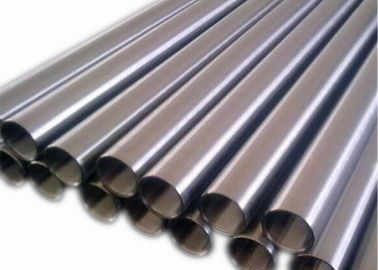

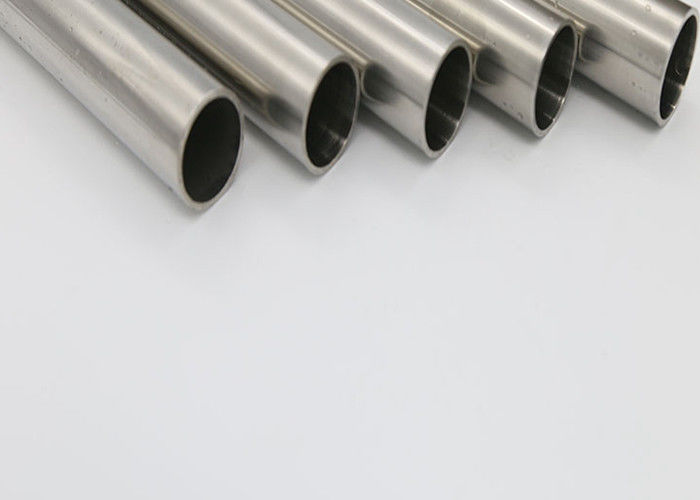

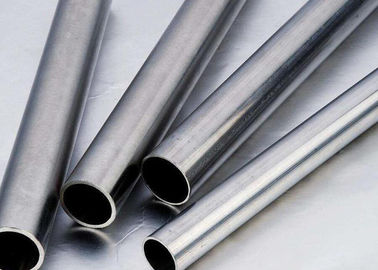

TP316L Welded Stainless Steel Tubes Sanitory Grade Diameter 2"
Weight % | C | Mn | P | S | Si | Cr | Ni | Mo |
---|---|---|---|---|---|---|---|---|
316 | .08 | 2.00 | .045 | .030 | 1.00 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
316L | .035 | 2.00 | .045 | .030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Grade | Tensile | ||||
---|---|---|---|---|---|
Ultimate/Min | Yield/Min | Elongation/Min | |||
KSI | MPA | KSI | MPA | % | |
316 | 75 | 515 | 30 | 205 | 35 |
316L | 70 | 485 | 25 | 170 | 35 |
Size(round pipe) |
9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 31.8, 35, 60, 63.5, 73, 76.2, 88.9, 101.6, 114.3, 127, 133, 159, 168, 219 mm or customized |
Size (square pipe) |
10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,36×23, 40×20,50×20,60×15,75×45,80×60,95×45,100×60,150×100 mm or customized |
Size (oval pipe) | 30×15,80×40 mm or customized |
Thickness | 0.24-3 mm |
Length | 6m or according to customer’s request |
Outer diameter | 6.35-219mm |
Tolerance | Outer diameter :±0.2mm |
Thickness :±0.02mm | |
Length :±0.5mm | |
Process method | Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished |
Finishing |
A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing for one pipe) |
1) Please provide details products information you need.
2) If price acceptable and sample needed, sample can be customized via customers' requirement and be sent immediately.
3) If sample approved and bulk production required for order,proforma Invoice will be sent and products fabricating will be arranged at once when 30% deposit received.
4) Products photos, packing details, and will be sent to customers after products finished. Shipment will be arranged after the balance payment paid.
