| Place of Origin: | China |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO,BV |
| Model Number: | 65#,70#,82b,72b，72A |
| Minimum Order Quantity: | 5 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 5-10 working days |
| Supply Ability: | 1000 Ton Per Month |
| Material: | 50# 70# 65# 72b 82b | Shipping: | By Sea |
|---|---|---|---|
| Type: | Round Wire，black | Application: | Kitchen，Industry Mesh |
| Wire Gauge: | 6mm, 6.5mm, 1-50MM, 5.5-16mm, 14mm | Steel Grade: | Q195-Q235, Q195/Q235/SAE1006/SAE1008, Stainless Steel Wire, 60# 65# 70# 72# 80#, Low Carbon Steel |
| Alloy Or Not: | Non-alloy And Alloy | ||
| High Light: | 304 stainless steel wire,stainless steel wire roll |
||

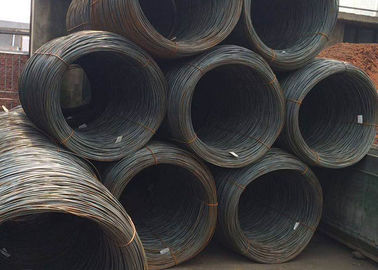

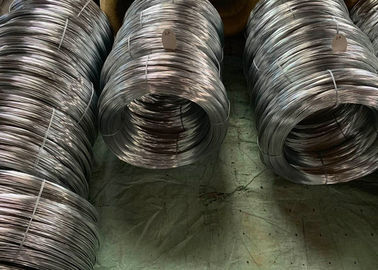

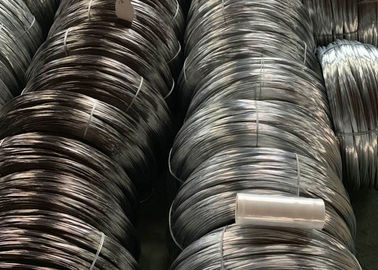

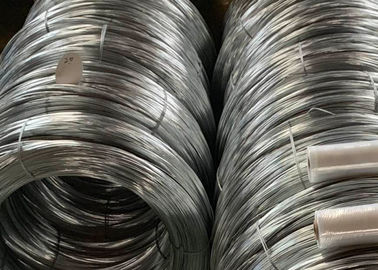

72b / 82b / 72A 6mm Hot Rolled Spring Wire Coil Grade For Mesh Production
1.Specifications
The common wire diam is from 1mm to 5.5mm.The thinner or thicker ones are also available for customers' requirements.
2.Zinc coating:30-290g/m2 T/S:1200-1800 mpa
3.Wide applications
Mainly used in construction,fenceing mesh of Express way,making brushes,binding wire,package products etc.
| Diameter (mm) | Tensile strength (mpa) | Zinc coating(g/m2) |
| 1.24-2.25 | 1340-1620 | 185-215 |
| 2.25-3.00 | 1310-1590 | 230 |
| 3.00-3.50 | 1290-1550 | 245 |
| 3.50-4.25 | 1290-1520 | 260 |
| 4.25-4.75 | 1290-1520 | 275 |
| 4.75-5.50 | 1290-1520 | 290 |
Hot dipped/Electro Zinc plated wire have following: Varies specification Stable Zinc coating and kinds packages, Wide usage
Our Hot dipped/Electro Zinc plated wire have following advantages:
| Grade |
C |
Si |
Chemical Mn |
P |
S |
Ni |
Cr |
Cu |
|
| 35 | 0.32-0.39 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.30 | <=0.25 | <=0.25 | |
| 40 | 0.37-0.44 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.30 | <=0.25 | <=0.25 | |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.30 | <=0.25 | <=0.25 | |
| 50 | GB | 0.52-0.60 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.30 | <=0.25 | <=0.25 |
| 60 | T4354 | 0.57-0.65 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.30 | <=0.25 | <=0.25 |
| 70 | -2008 | 0.62-0.70 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.30 | <=0.25 | <=0.25 |
| 80 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.30 | <=0.25 | <=0.25 | |
| 85 | 0.72-0.80 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.25 | <=0.30 | <=0.25 | |
| 90 | 0.77-0.85 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | <=0.25 | <=0.30 | <=0.25 |
How to order?
A: Please send us your purchase order by email or fax .or you can ask us to send you a proforma invoice for your order .We need to know the following information for your order.
1) Shipping information-company name, street address, phone number, fax number, destination sea port
2) Product information – Quantity, Specification (steel type, thickness, width, surface finish)
3) Delivery time required
Sheets / Plates, Stainless Steel Circles.
Package
in bulk or retail packing (transparent plastic bag, printed plastic bag, printed cardboard, blister card, PP bag, hang bag, colorful carton, display carton, common carton etc).
Progress of Wire
