0.4-30mm Stainless Steel Channel / 316 316L Stainless Steel Square Bar

Name: 0.4-30mm Stainless Steel Channel / 316 316L Stainless Steel Square Bar
Brand: WUXI XINFUTIAN METAL PRODUCTS CO., LTD
SKU: 316 316L
Price: 2,500.00 USD
Availability: InStock

Brand Name:	XINFUTIAN
Model Number:	316 316L
MOQ:	1 ton
Price:	Negotiation
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	1500 Ton Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu

Certification:

CO CCPIT

Name:

Stainless Steel Channel

Application:

Decoration,Steel Structure Building,Supporting System,industry

Standard:

ASTM,AISI,JIS,DIN,GB

Shape:

U Channel

Type:

Stainless Steel Square Bar

Thickness:

0.4-30mm

Packaging Details:

Standard Seaworthy package or as the customer's requirement

Supply Ability:

1500 Ton Per Month

Highlight:

u channel stainless steel

stainless steel angle bar

Product Description

0.4-30mm Stainless Steel Channel / 316 316L Stainless Steel Square Bar

Stainless Steel Channel Standard Parameter

Table of c channel standard dimensions, thinkness and weight(kg/meter)
W*H/Thinkness	1.5mm	2.0mm	2.5mm	2.75mm	3mm
41*41	1.68	2.22	2.78	3.07	3.35
41*25	1.29	1.72	2.14	2.36	2.57
41*21	1.18	1.59	1.98	2.2	2.37
41*72	2.42	3.22	4.03	4.43	4.82
41*82	2.65	3.53	4.4	4.85	5.28

Lenghth: Maximum 3000mm

Finishes&materials :HDG, Pre-galvanized, Stainless steel 304/316, GI, Electronic-polish, Electronic-zinc

Inspection Item		Standard	Inspection Value
Appearance		No corrosion, no damage, no black speckle and no pock points	Pass
Both surface galvanization		≥100g/m²	115g/m²
Load Channel	Dimension difference A	Dimension A:±0.4mm	-0.3——0.2mm
Load Channel	Dimension difference B	Dimension B: ±1.0mm	-0.5——0.5mm
Cover Channel	Dimension difference A	Dimension A:±1.0mm	-0.4——0.1mm
Cover Channel	Dimension difference B	Dimension B:±0.4mm	-0.3——0.1mm
Side flatness		≤1.5mm/1000mm	0.6mm/1000mm
Underside flatness		≤1.5mm/1000mm	0.5mm/1000mm
Angle difference		≤1°15′	1° 5′
Load Channel	Load test	Strengthen flexibility limitation 5.0mm	Strengthen flexibility 4.2mm
Load Channel	Load test	Remainder distortion limitation2.0mm	Remainder distortion1.4mm
Cover Channel	Load test	Strengthen flexibility limitation10.0mm	Strengthen flexibility 8.9mm
Cover Channel	Load test	Remainder distortion limitation 2.0mm	Remainder distortion 1.5mm
Test table above ,load keel is 50151.2mm, cover channel is 50190.5mm

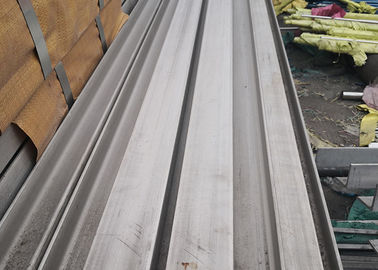

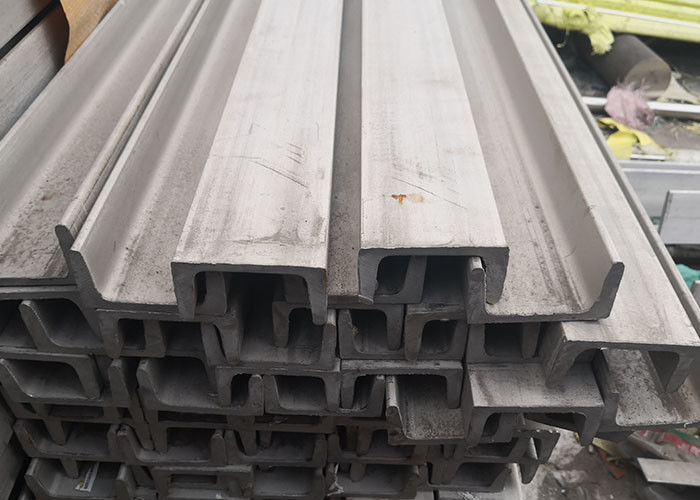

Stainless Steel Channel Details
