| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Baosteel |
| Certification: | ROHS |
| Model Number: | 347H |
| Minimum Order Quantity: | negotiation |
| Price: | Negotiation |
| Packaging Details: | Each Hairline finished stainless steel 201 square pipe will be sleeved in the plastic bags, then packed as a bundle. then Iron box, wooden box and plywood box can be customized, which is seaworthy. or Pack as your request. |
| Delivery Time: | 7-20 Working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Ton Per Month |
| Type:: | Seamless Stainless Steel Pipe | Polish: | 400# / 600# / 800# |
|---|---|---|---|
| Thickness: | 1-30MM | Length: | 5.8mm--6m Or As Customer's Request |
| Outer Diameter: | 6-350MM | Technology: | Cold Drawn / Cold Rolled |
| Sample: | Provided | ||
| High Light: | seamless stainless steel tubing,ss 304 seamless pipe |
||

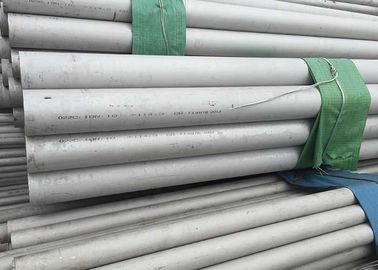

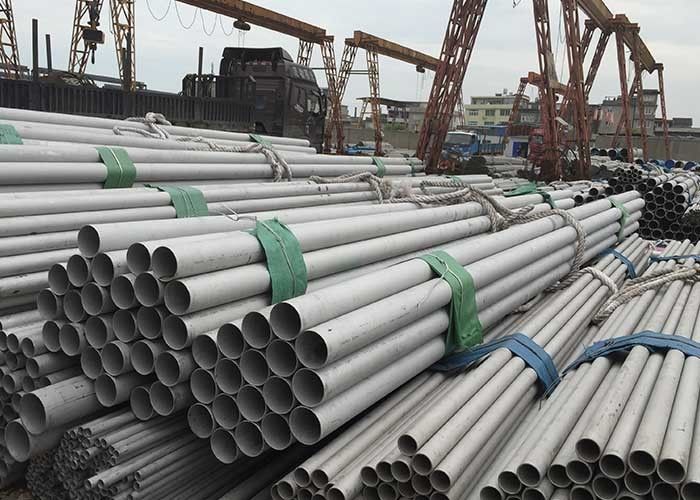

Customized Size Seamless Stainless Steel Pipe Cold Drawn / Cold Rolled
Seamless Stainless Steel Pipe Introduction
ASTM A312/DIN17456/JIS G3459 stainless steel seamless pipe, cold drawn/cold rolled ASTM A312/A213 TP310,TP310S,TP347,TP347H,TP321H seamless pipe / tubing with butt weld ends SIZE
SIZE RANGE:
| STEEL TYPES | SIZE RANGE |
| Stainless steel seamless pipe&tube | OD: 6-830mm WT: 0.6-60mm |
| U-Tube | OD: 12-38mm WT: 0.6-4mm |
MAIN STEEL TYPE AND GRADE :
|
PRODUCTS
|
TYPICAL STEEL GRADE |
| Austenitic |
TP304,TP304L,TP304H,TP316,TP316L,TP316H,TP316Ti TP321,TP321H,TP347H,904L,TP310H,TP310S,TP317,TP317L
|
| Duplex / Super Duplex |
S31803, S32205, S32750
|
MAIN PRODUCTION STANDARDS:
|
STANDARD TYPE
|
STANDARD |
|
EN |
EN10216-5 , EN10216-2 |
|
DIN
|
DIN 17456 , DIN 17458 |
|
ASTM
|
ASTM A312, A213, A269, A511, A789, A790 ETC |
|
GOST |
GOST 9941 , GOST 5632 |
|
JIS
|
JIS G3459 , JIS G3463 |
|
GB
|
GB/T14975,GB/T14975, GB13296, GB5310, GB9948 |
1. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
