Round Seamless Stainless Steel Pipe 347H For Sanitary And Water Piping

Basic Information
Place of Origin: Shanghai
Brand Name: Baosteel
Certification: ROHS
Model Number: 347H
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Each Hairline finished stainless steel 201 square pipe will be sleeved in the plastic bags, then packed as a bundle. then Iron box, wooden box and plywood box can be customized, which is seaworthy. or Pack as your request.
Delivery Time: 7-20 Working days
Payment Terms: L/C, T/T
Supply Ability: 500 Ton Per Month
Detail Information
Type:: Seamless Stainless Steel Pipe Material:: Stainless Steel 347H
Shape: Round Polish: 400# / 600# / 800#
Thickness: 1-30MM Application: Sanitary And Water Piping
Outer Diameter: 6-350MM Standard: ASTM, EN, JIS
Sample: Provided
High Light:

seamless stainless steel tubing

,

ss 304 seamless pipe


Product Description

Round Seamless Stainless Steel Pipe 347H For Sanitary And Water Piping



Seamless Stainless Steel Pipe Application



Pertrochemicai industy;aviation and aerospace industry;
pharmaceuticalindustry;gasExhaust;
power plant;ship building;water treatment;etc



Seamless Stainless Steel Pipe Quick Detail:




Model Number



  Seamless Stainless Steel Pipe 347H 1 Inch - 15 Inch For Industrial



Size



  OD 6mm to 530mm , Wall: 1mm to 36.0mm or custom made



 Length



  6M or 5.8M or as request



Minimum Order Quantity



  500Kgs/ one size



Price



  Negotiation



Payment Terms



  T/T, L/C at sight



 Delivery Time



  7-25 days



Packaging Details



  Plastic bag in bundle,Wooden box,etc.



Supply Ability



  600Tons/Month



Production process



  Hot-Rolled, Cold Drawn



ASTM A312/DIN17456/JIS G3459 stainless steel seamless pipe, cold drawn/cold rolled ASTM A312/A213 TP310,TP310S,TP347,TP347H,TP321H seamless pipe / tubing with butt weld ends SIZE

SIZE RANGE:



STEEL TYPES SIZE RANGE
Stainless steel seamless pipe&tube OD: 6-830mm WT: 0.6-60mm
U-Tube OD: 12-38mm WT: 0.6-4mm



MAIN STEEL TYPE AND GRADE :





PRODUCTS



TYPICAL STEEL GRADE
Austenitic



TP304,TP304L,TP304H,TP316,TP316L,TP316H,TP316Ti

TP321,TP321H,TP347H,904L,TP310H,TP310S,TP317,TP317L



Duplex / Super Duplex



S31803, S32205, S32750







MAIN PRODUCTION STANDARDS:





STANDARD TYPE



 STANDARD



EN

EN10216-5 , EN10216-2



DIN



DIN 17456 , DIN 17458



ASTM



ASTM A312, A213, A269, A511, A789, A790 ETC





GOST

GOST 9941 , GOST 5632



JIS



JIS G3459 , JIS G3463



GB



GB/T14975,GB/T14975, GB13296, GB5310, GB9948



1. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.



2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.



3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M



4. Butt Weld End: According to ANSI B 16.25



5. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”



6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.



Seamless Stainless Steel Pipe Details

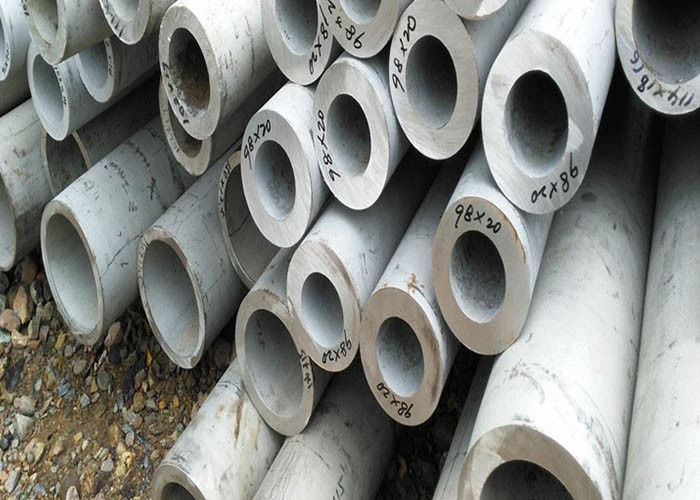

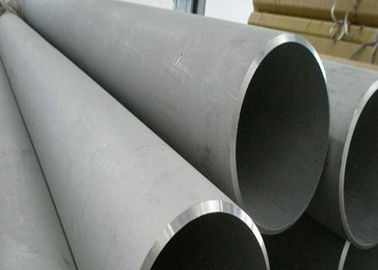

Round Seamless Stainless Steel Pipe 347H For Sanitary And Water Piping 0
