Place of Origin: | Jiangsu |
---|---|
Brand Name: | AOXIANG |
Certification: | ISO |
Model Number: | 300 Series316L |
Minimum Order Quantity: | Negotiate |
Price: | Negotiation |
Packaging Details: | Standard Seaworthy package or as the customer's requirement |
Delivery Time: | 5-10 working days |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 1500 Ton Per Month |
Finish: | Polished | Name: | 316L Stainless Steel Round Bar |
---|---|---|---|
Type: | Round | Length: | 6m Or As Customized |
Technology: | Hot Rolled | Standard: | Aisi |
High Light: | u channel stainless steel,stainless steel channel |

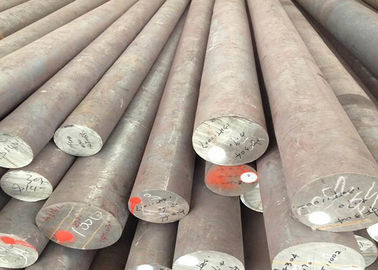

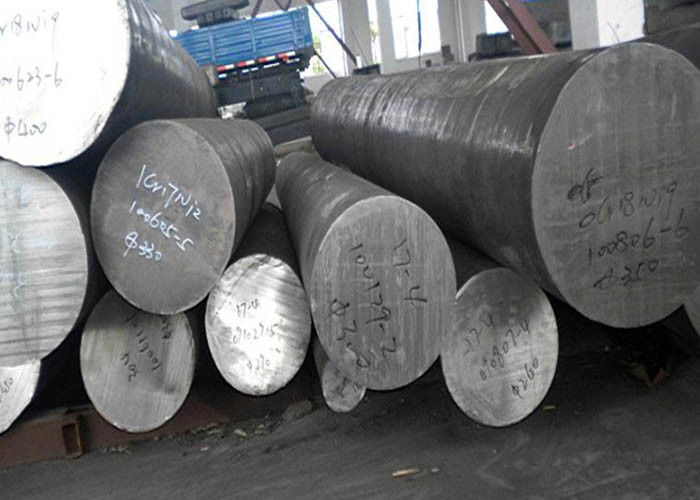

Aisi 316L Stainless Steel Round Bar / ASTM Polished Stainless Steel Rod
316L Stainless Steel Round Bar Details
Type | 316L Stainless Steel Round Bar |
Length | 6m or as customer's requirement |
Standard | JIS, AISI, ASTM, GB, DIN, EN ,etc. |
MOQ | 1 Ton |
Application | decoration, industry, etc. |
Certificate | SGS |
Packaging | Standard exporting packing |
Trade terms | FOB,CFR,CIF,CNF |
Delivery time | Within 10 working days after receiving your deposit |
Payment terms | 1. 30%T/T in advance, the balance against the B/L copy |
2. 30%T/T in advance, the balance against L/C original at sight |
Grade | Chemical Composition (%) | |||||||
C | Si | Mn | P | S | Ni | Cr | Mo | |
201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.030 | 3.50~5.50 | 16.00~18.00 | |
301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 6.00~8.00 | 16.00~18.00 | |
302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.00 | 17.00~19.00 | |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - |
304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00~13.50 | 18.00~20.00 | - |
316 | ≤0.045 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
316 (S31600) |
75 | 30 | 40 | 217 | 95 |
316L (S31603) |
70 | 25 | 40 | 217 | 95 |
201/202/304/321/316 etc Stainless Steel Round Bar Specifications In Stock
Diameter (mm) |
Weight(kg/m) |
Diameter (mm) |
Weight(kg/m) |
Diameter (mm) |
Weight(kg/m) |
2 | 0.025 | 11 | 0.754 | 24 | 3.558 |
3 | 0.056 | 12 | 0.897 | 25 | 3.894 |
4 | 0.1 | 14 | 1.221 | 27 | 4.542 |
5 | 0.156 | 15 | 1.402 | 28 | 4.884 |
6 | 0.224 | 16 | 1.595 | 30 | 5.607 |
7 | 0.305 | 18 | 2.019 | 32 | 6.380 |
8 | 0.399 | 19 | 2.249 | 34 | 7.202 |
9 | 0.505 | 20 | 2.492 | 36 | 8.074 |
10 | 0.623 | 22 | 3.015 | 38 | 8.996 |
316L Stainless Steel Round Bar Details
Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel strip or as required
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
5. Mill TEST Certificate of 316L
