| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | TISCO ,BAOSTEEL |
| Certification: | ISO,BV |
| Model Number: | 2507/1.4410 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement. |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Name: | Welded Stainless Steel Pipe | Technology: | Cold And Hot Rolled |
|---|---|---|---|
| Type: | Welded Stainless Steel Tubes | Item: | Stainless Steel |
| Color: | Natural | ||
| High Light: | welded stainless steel pipe,duplex stainless steel pipe |
||

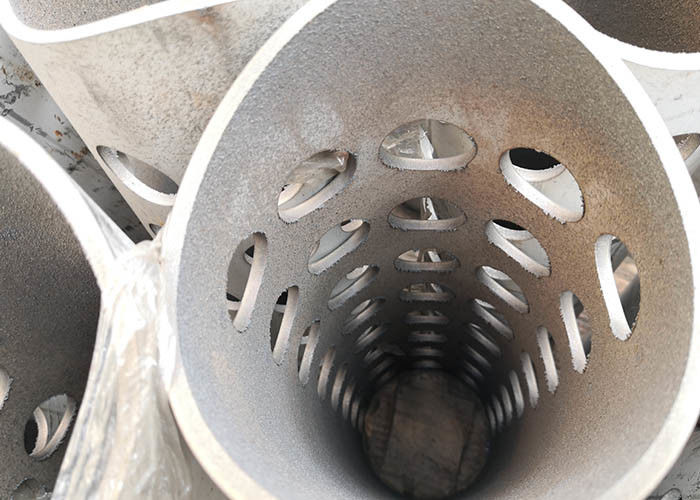

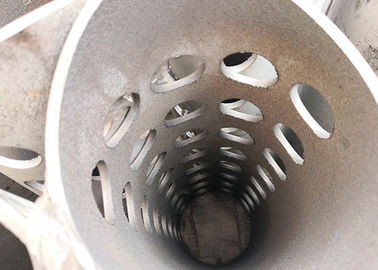

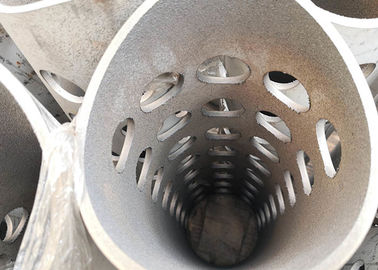

Duplex Welded Stainless Steel Pipe / Welded Stainless Steel Tubes 2507/1.4410
Duplex 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum, and nickel levels provide excellent resistance to pitting, crevice, and general corrosion.
Surface :
2B:
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.
Medical equipment, Food industry, Construction material, Kitchen utensils etc.
BA(NO.6)
Those processed with bright heat treatment after cold rolling
Kitchen utensils, Electric equipment,Building construction etc
Mirror(No.8)
Shinning like a mirror
Building construction, decoration etc.
NO.3
Those finished by polishing with No.100 toNo.120 abrasives specified in JIS R6001.
Kitchen utensils, Building construction etc.
NO.4
Those finished by polishing with No.150 toNo.180 abrasives specified in JIS R6001
Kitchen utensils, Building construction, Medical equipment etc
Hairline
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size
Building Construction etc.
Chemical Properties
| C | Cr | Ni | Mo | N | Others |
|---|---|---|---|---|---|
| 0.020 | 25 | 7 | 4.0 | .27 | S=0.001 |
Mechanical Properties
1.2507 duplex stainless steel pipe mechanical properties at room temperature
Pipe: thickness≤20mm ；δb/MPa:800-1000 ,δ0.2/MPa:≥550 ,δ5/%:≥25 ,(HV):290
2.2507 duplex stainless steel plate in the mechanical properties of room temperature of -200 ℃ :
/℃ δb/MPa
Room Temperature ≥530
Sheet 100 ≥450
200 ≥400
3.Mechanical properties of 2507 large-diameter seamless tube
Dia*thickness δb/MPa δ0.2/MPa δ5/% (HV)
273.0mm×4.19mm 894 644 40 284
323.9mm×4.57mm 858 662 45 270
406.4mm×4.74mm 854 657 41 272
Payment ,Shipping
| MOQ | 1 Ton |
| Price Term | FOB |
| Payment | L/C at sight or 30% TT as deposit |
| Delivery Time | 20-30 days after receiving deposit by T/T or L/C. |
| Sample | Samples free and express charges bear by you |
Shipping:
Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel strip or as required
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
