Product Details:

Place of Origin: WUXI,WENZHOU
Brand Name: XINFUTIAN
Certification: BV,SGS
Model Number: F60

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Plastic bags
Delivery Time: 5-7 working days
Payment Terms: D/A, L/C, T/T
Supply Ability: 1000 ton/Month
Contact Now
Detailed Product Description
Name: Welded Stainless Steel Pipe Type: Welded
Outer Diameter: Custom Made Certification: ISO / SGS
Surface: Polished Thickness: 0.4-30mm

Polished Welded Stainless Steel Pipe , Thick Wall Stainless Steel Tube





Welded Stainless Steel Pipe Surface :

2B:

Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.

Medical equipment, Food industry, Construction material, Kitchen utensils etc.



BA(NO.6)

Those processed with bright heat treatment after cold rolling

Kitchen utensils, Electric equipment,Building construction etc



Mirror(No.8)

Shinning like a mirror

Building construction, decoration etc.



NO.3

Those finished by polishing with No.100 toNo.120 abrasives specified in JIS R6001.

Kitchen utensils, Building construction etc.



NO.4

Those finished by polishing with No.150 toNo.180 abrasives specified in JIS R6001

Kitchen utensils, Building construction, Medical equipment etc



Welded Stainless Steel Pipe Details

2205 is a Ni-Cr based superalloy that possesses high strength properties and resistance to elevated temperatures. It also demonstrates remarkable protection against corrosion and oxidation. Its ability to withstand high stress and a wide range of temperatures, both in and
out of water, as well as being able to resist corrosion while being exposed to highly acidic  environments makes it a fitting choice for nuclear and marine applications.

Inconel 2205 was developed in the 1960s with the purpose of creating a material that could be used for steam-line piping. Some modifications were made to its original composition that have enabled it to be even more creep-resistant and weldable.

Chemistry

Some chemical properties of Inconel 2205 include:
China Supply F60 ( S32205 ) 1.4462 tube Duplex stainless steel 2205 welded pipe price

Heat Treatment

Heat Treatment 2205 is usually strengthened by cold work, with annealing at temperatures between 1,700 and 1,900F as required to remove the effects of cold work. Although nominally a solid-solution alloy containing intergranular and intragranular carbide precipitates, 2205 is not responsive to strengthening heat treatments. Solution heat treating at 2000 to 2200F dissolves almost all of the secondary carbides. The major effects of short-time annealing of hot-rolled bar of standard composition are to affect reductions in tensile strength and hardness.Typically, the annealing heat treatment most utilized for 2205 is at 1800F.


type

C

Si

Mn

P

S

Cr

Ni

Mo

N

Cu

W

S31803
(F51)

≤0.03

≤1.0

≤2.0

≤0.03

≤0.02

21.0~23.0

4.5~6.5

2.5~3.5

0.08~0.2





S32205
(F60)

≤0.03

≤1.0

≤2.0

≤0.03

≤0.02

22.0~23.0

4.5~6.5

3.0~3.5

0.14~0.2





S32750
(F53)

≤0.03

≤0.8

≤1.2

≤0.035

≤0.02

24.0~26.0

6.0~8.0

3.0~5.0

0.24~0.32

0.5



S32760
(F55)

≤0.03

≤1.0

≤1.0

≤0.03

≤0.01

24.0~26.0

6.0~8.0

3.0~4.0

0.2~0.3

0.5~1.0

0.5~1.0

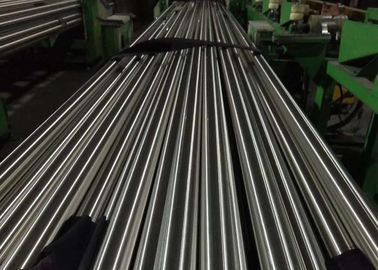

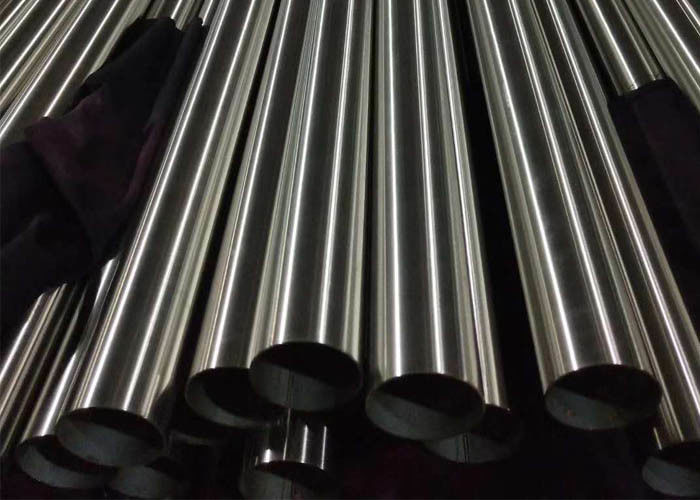

 Welded Stainless Steel Pipe Pictures


Polished Welded Stainless Steel Pipe , Thick Wall Stainless Steel Tube
