| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,LISCO |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 316 |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 ton/Month |
| Feature: | Marine Grade | Finish: | 2B ,Hairilne,BA,NO6,N0 8 |
|---|---|---|---|
| Width: | 5-150mm | Name: | Stainless Steel Strip Coil |
| Standard: | Astm A276 | Length: | As Customized |
| High Light: | A276 aisi 316 stainless steel,1.4401 316l stainless steel |
||

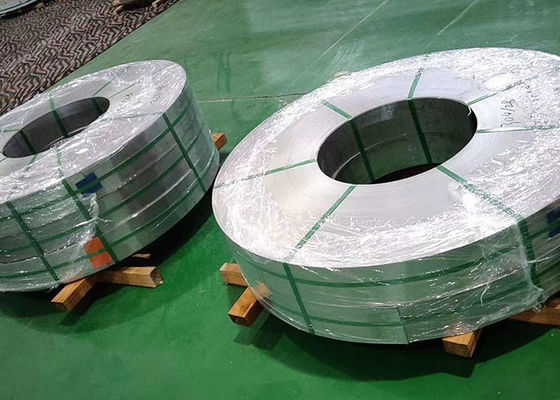

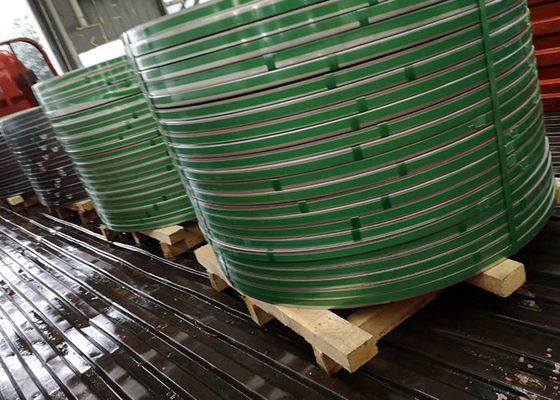

Astm A276 SUS316 DIN 1.4401 Stainless Steel Strip Coil Marine Grade
Stainless steel plate is an alloy steel with smooth surface, high weldability, corrosion resistance, polishability, heat resistance, corrosion resistance and other characteristics. It is widely used in various industries and is an important material in modern industry. Stainless steel is divided into austenitic stainless steel, ferritic stainless steel, martensitic stainless steel, and duplex stainless steel according to the structure state.
1. Products Details
| Commodity | Astm A276 SUS316 DIN 1.4401 Stainless Steel Strip Coil Marine Grade |
| Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.3mm-25mm |
| Width | 1000,1219,1250,1500mm, or as your requirements |
| Length | 2000,2438,2500,3000,6000mm, or as your requirements |
| Surface | No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film. |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery | 5-7 days after confirming the order |
| MOQ | 1 Ton |
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
316 standards
CHINA:06Cr17Ni12Mo2
ASTM/ASME: UNS S31600
AFNOR: Z 6 CND 17-11
DIN: 1.4401
3. Resistance
Corrosion Resistance:
1) Generally more resistant than 304 in range of atmospheric environments and many corrosive media due to the increased chromium and molybdenum content.
2) Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 122°F (50°C).
3) Usually regarded as the “marine grade stainless steel” – but is not resistant to warm sea water.
4. Applications:
Food preparation equipment, especially in chloride environments,Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery ,Pollution control equipment
Boat fittings, value and pump trim,Heat exchangers,Pharmaceutical and textile industries
5. Sales points and Advantages:
