2B Brushed Finish 80mm 2000mm 316 Stainless Steel Sheet

Basic Information
Place of Origin: Shanghai ,Shanxi
Brand Name: BAOSTEEL , TISCO ,HONGWANG ,LISCO
Certification: ISO ,SGS,BV
Model Number: 300 Series 316 316L
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Export Package
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 T/Month
Detail Information
Name: Cold Rolled Stainless Steel Sheet Stainless Steel Sheet: 316/316L
Color: Natual Color Thickness: 0.3mm-80mm
Width: 4 - 2000mm Length: 500 - 12000 Mm / Coil
High Light:

80mm 316 Stainless Steel Sheet

,

2B Brushed Finish Stainless Sheet

,

2000mm 316 Stainless Steel Sheet


Product Description

Custom 316 316l Cold Rolled Stainless Steel Sheets / Plates 2B Brushed Finish



Description:

The stainles steel 316/316L is molybdenum-bearing austenitic stainless steel. The higher nickel and molybdenum content in this grade allows it to demonstrate better overall corrosion resistant properties than 304, especially with regard to pitting and crevice corrosion in chloride environments. In addition, Alloy 316/ 316L provides excellent elevated temperature tensile, creep and stress-rupture strengths, as well as outstanding formability and weldability. 316L is the lower carbon version of 316 and is immune from sensitization; therefore, it is very frequently used in heavy gauge welded components.



Chemical Properties:

Grade

Element

C Mn Si P S Cr Mo Ni

N

316
(S31600)
0.08
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max
316L
(S31603)
0.03
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max



Mechanical Properties:

Grade Tensile Strength
MPa (min)
Yield Strength
0.2% MPa (min)

Elongation

%

Hardness

(HB) MAX

Hardness
(HRB) MAX
316
(S31600)
515 205 40 217 95
316L
(S31603)
485 170 40 217 95



Corrosion Resistance:

Generally more resistant than 304 in range of atmospheric environments and many corrosive media due to the increased chromium and molybdenum content.

Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 122°F (50°C).

Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 140°F (60°C).

Usually regarded as the “marine grade stainless steel” – but is not resistant to warm sea water.



Heat Resistance:

Good oxidation resistance in intermittent service to 1600°F (870°C) and in continuous service to 1700°F (925°C). Grade 316L is more resistant to carbide precipitation.



Machineability:

Type 316/316L is somewhat more difficult to machine than Type 304 because of its toughness.

316/316L machines with chip characteristics that are tough and strong.

Chip breakers and curlers are advised.

As large a tool as possible and great amounts of cutting fluid should be used.

Heavy positive feeds at low speeds should be considered since 316/316L work hardens rapidly.



Applications:

Food preparation equipment, especially in chloride environments

Chemical processing, equipment

Laboratory benches and equipment

Rubber, plastics, pulp & paper machinery

Pollution control equipment

Boat fittings, value and pump trim

Heat exchangers

Pharmaceutical and textile industries

Condensers, evaporators and tanks


FAQ
Q Are you a factory or a trading company?
A We are a factory with 20 years of experience, specializing in the production of stainless steel belt, stainless steel plate, good quality, competitive price, thoughtful service.

Q what is the minimum order quantity?
A Generally speaking, the minimum order quantity per yard is 5 metric tons. If your quantity is small, we can supply it from stock.

Q I need samples. Can you support me?
A We can provide you samples free of charge, but the cost of delivery is borne by our customers. To avoid misunderstandings, please provide an international express account for receipt. You can also come to visit us.

Q how to understand quality assurance?
A We have ISO900 certification, and 20 years of stainless steel production experience, as well as a set of quality inspection system, our product qualification rate of 99.5%.

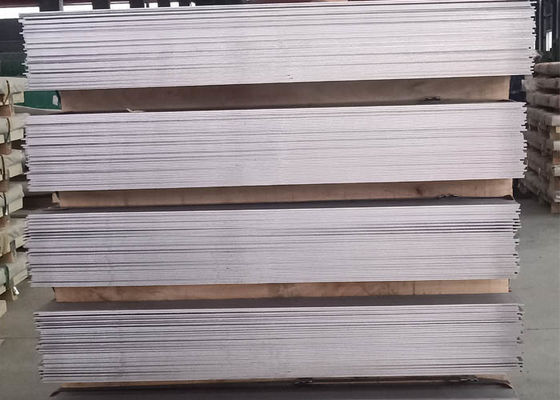

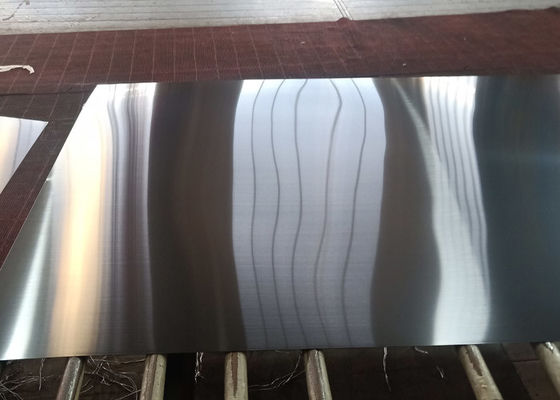

2B Brushed Finish 80mm 2000mm 316 Stainless Steel Sheet 02B Brushed Finish 80mm 2000mm 316 Stainless Steel Sheet 1
