| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 309S |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Name: | Seamless Stainless Steel Pipe | Tolerance: | ±1% |
|---|---|---|---|
| Steel Grade: | 300 Series/400series/600Series | Type: | Seamless |
| Shape: | Round Pipe Tube | Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| High Light: | pickling surface seamless ss pipe,od10mm seamless ss pipe,seamless ss TP321 pipe |
||

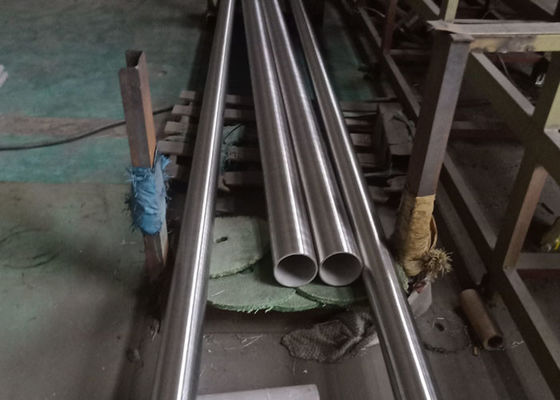

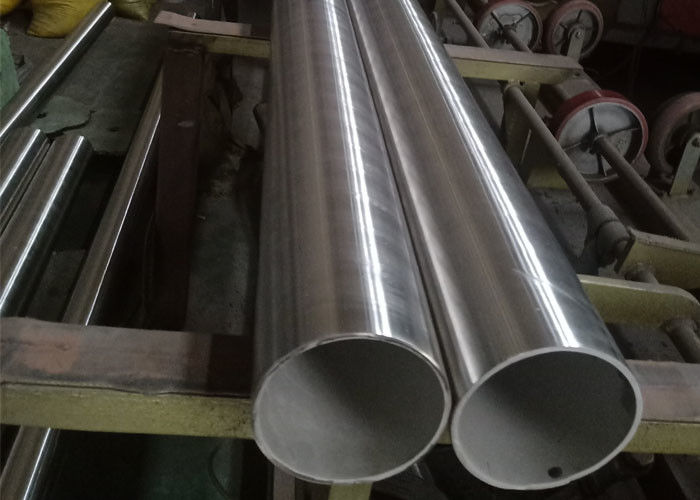

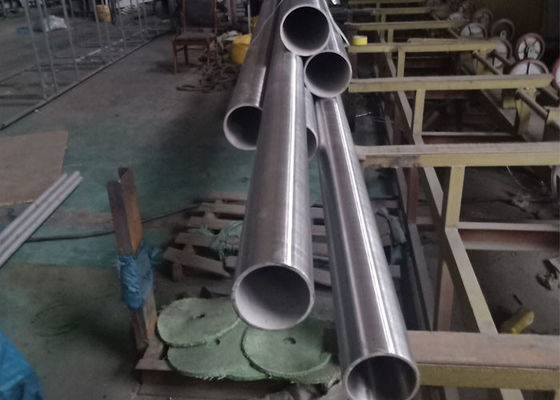

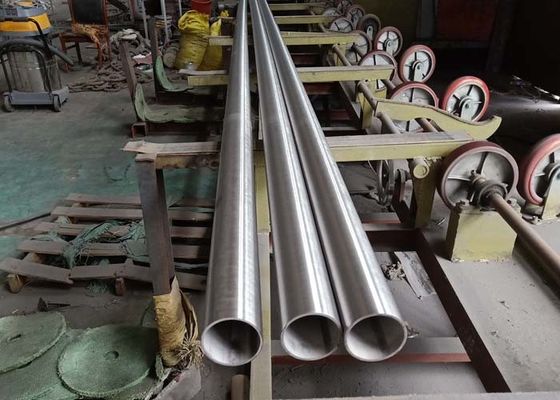

304 316 Customized Length Seamless stainless steel tube With Pickling Surface
Applications And Advantages :
Stainless steel seamless pipes can be used in fluid and gas transport industry , structure and machining industry etc . And our seamless pipes is produced by advanced technology of cold draw machine , advanced annealing machine etc . So our pipes have better machanical property , more precise dimension etc . And we will do perfect inspection use inspection equipment .
Product Description:
| Description | Stainless Steel Pipe |
| Supply Capacity | 10000 tons/year |
| Process Method | cold drawn and cold rolled |
| Out Diameter | 0.2mm-10mm |
| Wall Thickness | 0.01mm-2mm |
| Length | 10mm -6000mm |
|
Steel Grade
|
200 (Ni : 0.8%), 201B (Ni : 3%), 201H (Ni : 5%) |
| 301 (Ni : 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L, 316L, 316Ti | |
| 317, 317L, 309S, 310S(2520), 347, Duplex 2205, Duplex 2207, etc. | |
| Standards | ASTM / ASME, GB, DIN, JIS, T14975, etc. |
| Application | Surgical instruments,Water and sewage treatment,Sensor pipe,etc. |
|
|
1.with plastic cap to protect both ends |
| 2.plastic bag wrapped outside the pipe | |
|
3.bundles to be covered by polythene & strapped securely .
|
|
| 4.if require ,then pack into wooden box. | |
| Certification | ISO 9001:2008 |
Mechanical Requirement
| Grade: | TP405 | TP410 | TP249 | TP430 | TP443 | TP446-1 | TP446-2 | … | TP409 |
| UNS | S40500 | S41000 | S42900 | S43000 | S44300 | S44600 | S44600 | S40800 | S40900 |
| C, max | 0.08 | 0.15 | 0.12 | 0.12 | 0.20 | 0.20 | 0.12 | 0.08 | 0.08 |
| Mn,max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.50 | 1.50 | 1.00 | 1.00 |
| P, max | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.045 | 0.045 |
| S, max | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.045 | 0.045 |
| Si, max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Ni | 0.50max | … | … | … | 0.75max | 0.75max | 0.50max | 0.80max | 0.50max |
Cr |
11.5-14.5 | 11.5-13.5 | 14.0-16.0 | 16.0-18.0 | 18.0-23.0 | 23.0-27.0 | 23.0-27.0 | 11.5-13.0 | 10.5-11.7 |
| Mo | … | … | … | … | … | … | … | … | … |
| Al | 0.10-0.30 | … | … | … | … | … | … | … | … |
| Cu | … | … | … | … | 0.90-1.25 | … | … | … | … |
| N | … | … | … | … | … | 0.25 | 0.25 | 12xCmin | 6xCmin |
| Ti | … | … | … | … | … | … | … | 1.10max | 0.75max |
FAQ
Value added services such as slitting, cut-to-length, edge conditioning & oscillate winding.
Near 100% on time deliveries.
Extensive experience in the core production/leadership team areas
Sure! Before that ,please kindly send us the following:size,quantity,surface,grade,the more detailed ,the better can we further our business.
Yes, we could offer the sample for free charge but do not pay the cost of freight.
