| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 309S |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Name: | 316L Stainless Steel Pipe | Thickness: | 0.25mm-3.0mm |
|---|---|---|---|
| Steel Grade: | 304 304L 316L | Technique: | Cold Rolled, Hot Rolled |
| Type: | Welded | Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| High Light: | 0.25mm Seamless Stainless Steel Pipe,0.25mm seamless welded pipe,Sanitary 316l seamless pipe |
||

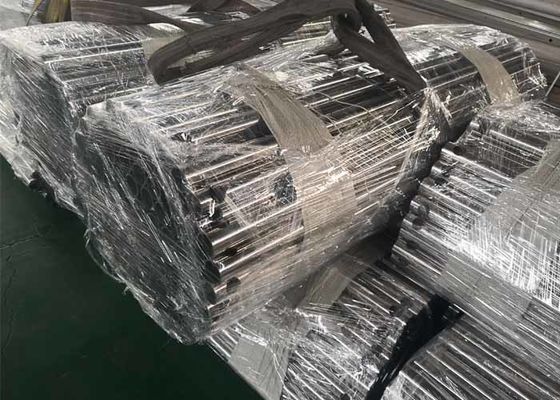

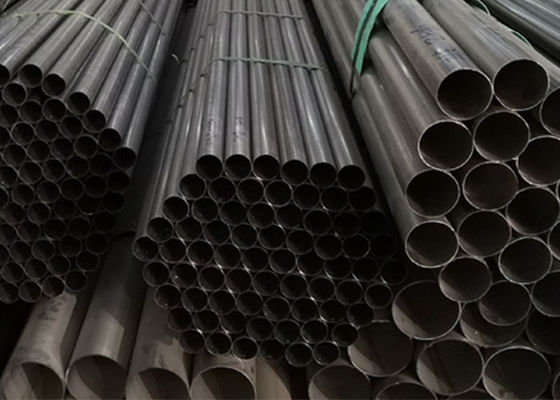

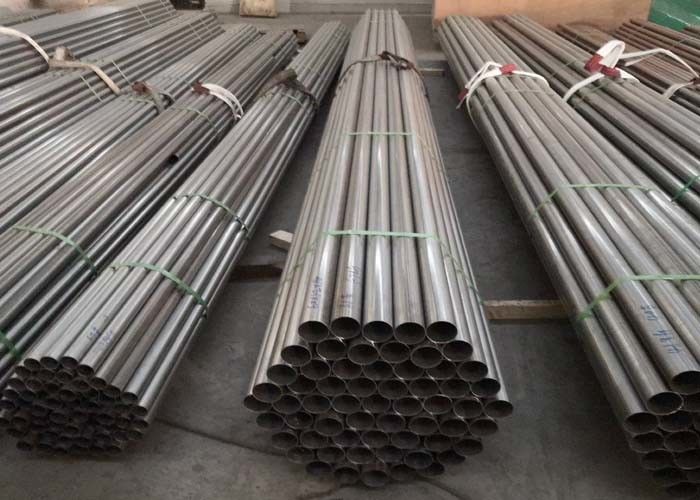

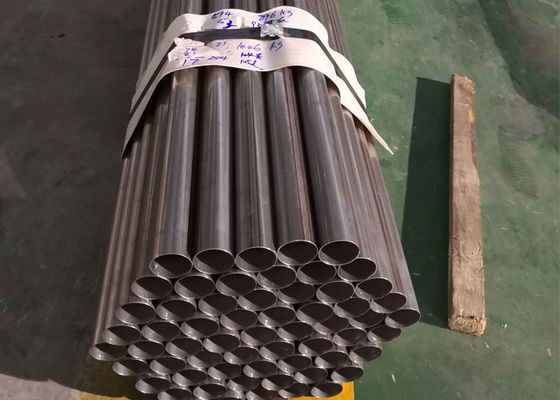

Mirror Polished Stainless Steel Pipe Sanitary Piping 316L Stainless Steel Pipe
316 and 316L stainless steels are molybdenum-containing stainless steels. The content of molybdenum in 316L stainless steel is slightly higher than that of 316 stainless steel. Because of the molybdenum in steel, the overall performance of this steel is better than 310 and 304 stainless steel. Stainless steel has a wide range of uses. 316 stainless steel also has good resistance to chloride attack, so it is usually used in the marine environment. 316L stainless steel has a maximum carbon content of 0.03, which can be used in applications that cannot be annealed after welding and require maximum corrosion resistance.
| Item | mirror polished stainless steel pipe sanitary piping |
| Standard | ASTM, AISI, GB, JIS, as customers' request |
| Technique | cold drawn |
| Size | OD: 6-114mm |
| TH: 0.25mm-3.0mm | |
| Length: 3-6m or customize | |
| Sample | Free sample is available |
| Tolerance | Outer diameter:±0.1mm |
| Thickness:±0.02mm | |
| Length:±1cm | |
| Quality test | we offer MTC( mill test certificate) |
| Package | Standard Seaworthy Package |
| Stock or not | enough stock |
| Payment terms | L/C T/T (30%DEPOSIT) |
| Delivery time | 7-15 dyas,or according to the order quantity or upon negotiation |
| Application | Railings, Balustrade, Furniture, Fence, Decorations, Constructions, Food industry, etc |
Chemical Composition Compared:
| Material | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10.0~14.0 | 16.0~18.5 | 2.00~3.00 | ≤0.10 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | ≤0.10 |
| Grade | UNS | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Brinell Hardness (HB) max | Rockwell Hardness (HRB)max |
|---|---|---|---|---|---|---|
| 316 | S31600 | 515 | 205 | 40 | 217 | 95 |
| 316L | S31603 | 485 | 170 | 40 | 217 | 95 |
