| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 309S |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Name: | 316 316L Stainless Steel Pipe | Thickness: | 0.1mm-1.2mm |
|---|---|---|---|
| Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D | Grade: | 316 316L |
| Technique: | Cold Drawn | Standard: | JIS, AiSi, ASTM, GB, DIN, EN |
| High Light: | 1.2mm stainless steel 304l pipes,304L Seamless Stainless Steel Pipe,1.4306 304l stainless steel pipe |
||

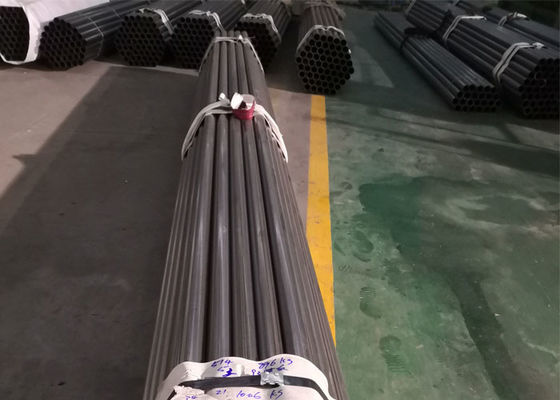

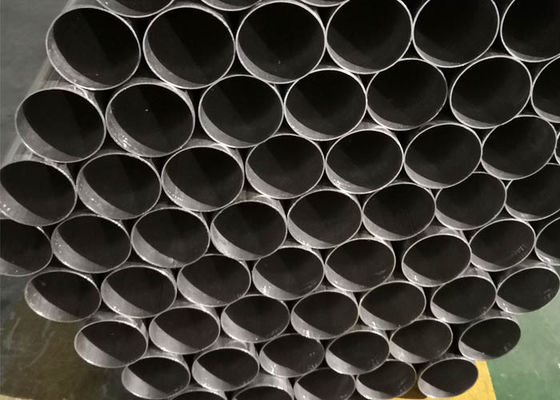

High quality 304L stainless steel seamless pipe stainless steel pipe made
304L stainless steel seamless pipe is commonly used in many industrial applications involving processing chemicals and is as well used in high-saline environments such as coastal regions and outdoor areas where de-icing salts are common. The carbon content in SS 304L Tubes is held to 0.08 percent maximum, while the nickel content is increased slightly. Due to its non-reactive qualities,is also used in the manufacture of medical surgical instruments. These items have chemical and mechanical properties complying with Grade 304L Tubes specifications. Heavy welded sections in Grade 304L Tubes require post-weld annealing for maximum corrosion resistance.
|
Material (ASTM)
|
201 304 304L 309s 310s 316 316L 316TI 317L 321 904L S32205
|
|
Material (DIN)
|
1.4301 1.4306 1.4541 1.4401 1.4404 1.4571 1.4539 1.44621.4410 1.4833 1.4845
|
|
Type
|
Seamless or Welded
|
|
Surface Finished
|
No.1 No.3 No.4 HL 2B BA 4K 8K 1D 2D
|
|
Delivery Time
|
7-15 days or according to the order's quantity
|
|
Application
|
Construction, Industry, decoration and foodstuff etc.
|
|
Container
|
1*40ft container load Max. 25 Ton, Max. Length 11.8m
1*20ft container load Max. 25 Ton, Max. length 5.8m
|
|
Loading Port
|
Tianjin, Xingang Port, Qingdao,Shanghai, Ningbo, or any China Seaport
|
|
Bulk Size
|
Any size
|
|
Package
|
Standard export seaworthy package,suit for all kinds of transport, or as required.(Water-proof Paper + Edge protection + Wooden Pallets)
|
Chemical Composition (% by weight)
| Element | Min | Max |
| C | - | 0.03 |
| Cr | 24 | 26 |
| Cu | 0.5 | 1 |
| Mn | - | 2 |
| Mo | 3 | 5 |
| N | 0.24 | 0.35 |
| Ni | 6 | 8 |
| P | - | 0.35 |
| S | - | 0.015 |
| Si | - | 1 |
Appearance requirements:
The inner and outer surface of the steel pipe shall be free from visible cracks, scabs and deformation caused by bumping bow,
and the surface roughness Ra<32um.
The outer end shall be free from deformation, elliptical notch and other defects, and the pipe body shall be free from pits
(pits deeper than 0.1mm are not allowed on the inner wall of the steel pipe),inclusions and other defects. There shall be no scratch (0.1mm).
Dirt on the inner hole: there shall be no oil pollution inside and outside the steel pipe or dirt and rust that can not be removed by fine sandpaper
WUXI XINFUTIAN business is covering full range of stainless steel flat and long products, includes all series of (300 series, 400 series, 200 series, duplex) stainless steel coils, plates, strips, sheets, bars, pipes ,tubes, wire rods, etc. Benefit from our ready stock in warehouses and professional processing facilities, we can provide prompt delivery of the materials and customized products to meet the diversified demands of the market.
