| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 309S |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Name: | Seamless Stainless Steel Pipe | Type: | Seamless |
|---|---|---|---|
| Shape: | Round Pipe Tube | Surface: | Pickled,Polishing |
| Technique: | Cold Drawn | Steel Grade: | 300 Series |
| High Light: | ASTM A249 boiler steel pipe,Cold Drawn boiler steel pipe,ASTM A249 stainless steel boiler tubes |
||

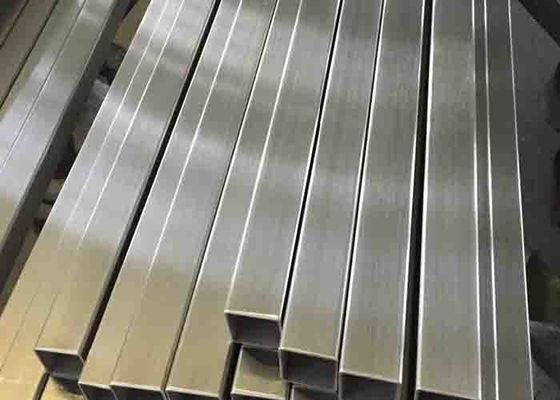

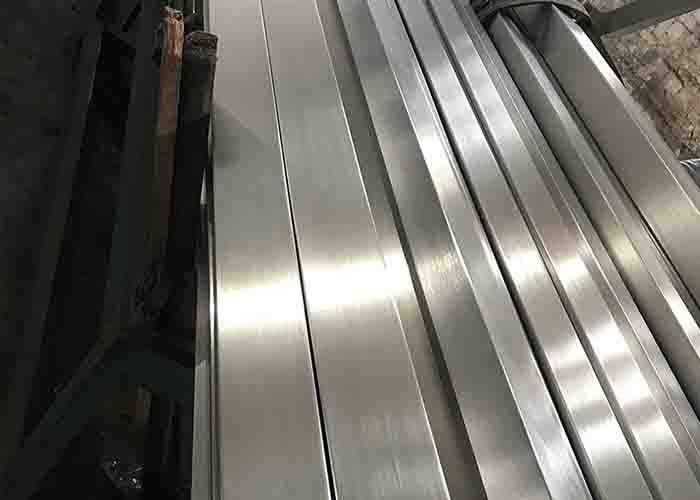

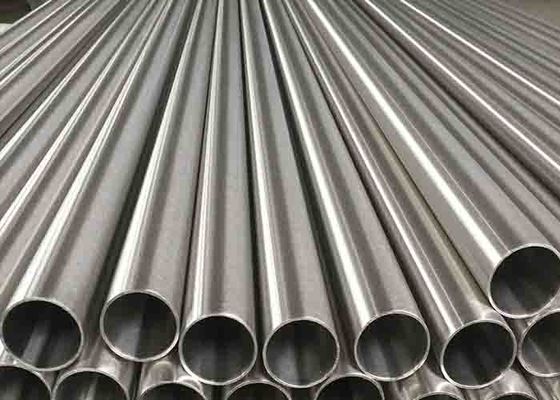

Astm A269 Tp316l Astm A249 Small Diameter Stainless Steel Boiler Round Or Square Pipe And Tube
XFT METAL heat exchanger tube in stainless steels are suitable for all types of heat exchangers for conveying all types of gases and liquid with extreme low and high temperature requirements, such as sea water coolers, condensers, evaporators, heaters and reheaters.They are used for heating, re-heating or cooling of gases, air or fluids in an extensive range of industries like chemical processing, aerospace and nuclear power generation, hydro carbon processing and oil refining.Our heat exchanger tubes are appreciated for the feature such as dimensional accuracy, corrosion resistance, easy installation and smooth finishing.
Specification:
| Product name | stainless steel tube/pipe |
| Shape | Round Square Rectangle |
| material | 201,202,303, 303Cu,304,304L,316,316L,310S,316Ti,321,430,904L,2205,2507,317L,310S,ETC |
| Thickness | 0.25-30mm or as customized |
| Outer Diameter | 3-500mm or as customized |
| Length | 3000mm-6000mm or as customized |
| Stainless Steel Mechanical Properties | ||||||||
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Soluction Annealing | |||
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ℃ | ||||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) | 1040℃-1150℃ Water Quenching |
||
| TP 304L | ≥50 (485) | ≥17 (170) | ||||||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||||
| TP 316l | ≥50 (485) | ≥17 (170) | ||||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) | 1010℃-1150℃ Water Quenching |
||||
| SUS 304L | ≥49 (480) | ≥18 (175) | ||||||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (205) | 1010℃-1150℃ Water Quenching |
||||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | ||||||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (205) | ||||||
| 022Cr17Ni12Mo2 | ≥49 (480) | ≥18 (180) | ||||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 | 1000℃-1100℃ Water Quenching |
|||
| 1.4307 | (470-670) | ≥18 (180) | ||||||
| 1.4401 | (510-710) | ≥21 (205) | 1020℃-1120℃ Water Quenching |
|||||
Products Application:
For boiler ,tube heat exchanger ,condenser,evaporator,super heater and so on,Used in oil indusrty ,petrochemical industry,ice factory ,light manufcaturing ,energy industry and so on
