| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 309S |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Name: | Seamless Stainless Steel Pipe | Tolerance: | ±1% |
|---|---|---|---|
| Steel Grade: | 300 Series/400series/600Series | Surface: | Polishing |
| Type: | Welded/seamless | Technique: | Hot Rolled , Cold Rolled , Extrusion |
| High Light: | TP316L stainless steel heat exchanger tube,ASTM A269 plate heat exchanger tube,TP316L plate heat exchanger tube |
||

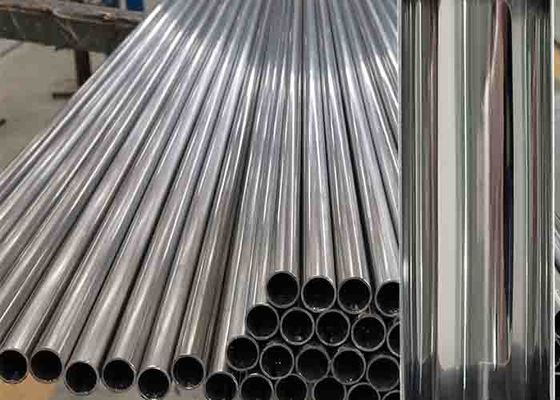

Astm A269 A312 Tp316l Astm A249 Small Diameter Stainless Steel Heat Exchanger Tube
WUXI XINFUTIAN METAL PRODUCTS CO., LTD is one of the most professional manufacturers and suppliers of 304 304L 316 316L 317 317L 310S 2205 2507 904L 321 301 410 430 stainless steel Tube. Stainless steel tubes can be divided into seamless tube and welded tube according to production mode. The seamless tube can be divided into hot-rolled tube, cold rolled tube, cold drawn pipe, and extruded tube. The welded pipe is divided into straight welded pipe and spiral welded tube.
Description:
Our heat exchanger tube in stainless steels are suitable for all types of heat exchangers for conveying all types of gases and liquid with extreme low and high temperature requirements, such as sea water coolers, condensers, evaporators, heaters and reheaters.They are used for heating, re-heating or cooling of gases, air or fluids in an extensive range of industries like chemical processing, aerospace and nuclear power generation, hydro carbon processing and oil refining.Our heat exchanger tubes are appreciated for the feature such as dimensional accuracy, corrosion resistance, easy installation and smooth finishing.
| HG 20537.2 | ASTM A249 (A1016) | GB / T 24593 | ||||||
| Outside Diameter (mm) | Ⅰ | Ⅱ | < 25.4 | ± 0.10 | ≤ 25 | ± 0.10 | ||
| <25 | ± 0.10 | >10~30 | ± 0.20 | ≥25.4~<38.1 | ± 0.15 | >25~40 | ± 0.15 | |
| ≥25~38 | ± 0.15 | >30~50 | ± 0.30 | ≥38.1~<50.8 | ± 0.20 | >40~50 | ± 0.20 | |
| >35~51 | ± 0.20 | >50 | ± 0.8% | ≥50.8~<63.5 | ± 0.25 | >50~65 | ± 0.25 | |
| >51~63 | ± 0.25 | >63.5~<76.2 | ± 0.31 | >65~75 | ± 0.30 | |||
| >63~76 | ± 0.30 | >75~100 | ± 0.38 | |||||
| Thickness (mm) | ± 10%S | ± 10%S | ± 10%S | |||||
| Length (mm) | +5 -0 |
D<50.8 | +3 -0 |
+5 -0 |
||||
| D ≥ 50.8 | +5 -0 |
|||||||
| Trade Name |
Grade
|
UNS #
|
Heater Tubes
(Seamless) |
Heater Tubes
( Heater / Condenser ) (without Filler Metal) |
Heater Tubes
( General Service ) (Seamless/Welded) |
| 304 |
TP304
|
S30400
|
A213 / SA213
|
A249 / SA249
|
A269
|
| 304L |
TP304L
|
S30403
|
A213 / SA213
|
A249 / SA249
|
A269
|
| 304H |
TP304H
|
S30409
|
A213 / SA213
|
A249 / SA249
|
-----
|
| 316 |
TP316
|
S31600
|
A213 / SA213
|
A249 / SA249
|
A269
|
| 316L |
TP316L
|
S31603
|
A213 / SA213
|
A249 / SA249
|
A269
|
| 316H |
TP316H
|
S31609
|
A213 / SA213
|
A249 / SA249
|
-----
|
| 321 |
TP321
|
S32100
|
A213 / SA213
|
A249 / SA249
|
A269
|
| 321H |
TP321H
|
S32109
|
A213 / SA213
|
A249 / SA249
|
-----
|
| 347 |
TP347
|
S34700
|
A213 / SA213
|
A249 / SA249
|
A269
|
| 347H |
TP347H
|
S34709
|
A213 / SA213
|
A249 / SA249
|
-----
|
| 317L |
TP317L
|
S31703
|
A213 / SA213
|
A249 / SA249
|
-----
|
Q: Are you trading company or manufacturer?
A: We are the manufacturer with 3 factories. Specializing in producing welded stainless steel pipe / tube, stainless steel bollard for over 10 years.
Q: How long is your delivery time?
A: It is according to quantity. Generally it is 30 days.
Q: Can you provide us sample, is it free or need to pay?
A: If you don’t need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like Fedex, DHL, TNT. If you don’t have, we need to charge Express fee properly.
Q: Can I get your best price?
A: Our goal is to provide you the best price with great quality assured in a long run. Please leave your contact information for the best quotations, we will get back to you with the best solutions as soon as we can.
