Model Number: | Monel K500 | Customized: | OEM, ODM, OBM |
---|---|---|---|
THICKNESS: | 0.05-2.0mm | Shape:: | STRIP |
Port:: | Shanghai,Ningbo,Shenzhen | Flux Content: | 0.03% |
High Light: | Monel 400 Nickel Alloy Strip,2.0mm Nickel Alloy Strip,Acid Resistance Nickel Alloy Strip |

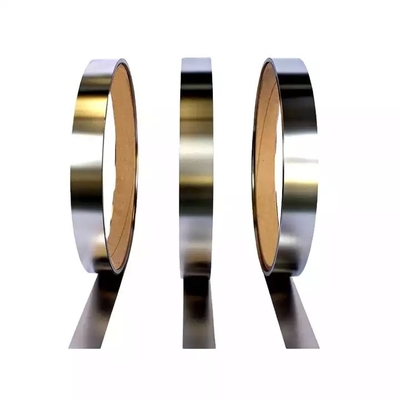

Monel 400 Nickel Alloy Strip Prices For Hydrofluoric Acid Resistance
Item
|
Ni%
|
Cu%
|
Fe%
|
Mn%
|
C%
|
Si%
|
S%
|
Monel 400
|
Min 63
|
28-34
|
Max 2.5
|
max 2.0
|
Max 0.3
|
Max 0.5
|
Max 0.024
|
Item
|
Density
|
Melting Point
|
Tensile Strength
(Rm N/mm2)
|
Yield strength
(RP0.2N/mm2)
|
Elongation
(A5%)
|
HB
|
Monel 400
|
8.83 g/cm3
|
1300℃-1390℃
|
480
|
170
|
35
|
≥331
|
Monel 400
|
Bar
|
Forging
|
Pipe
|
Sheet/strip
|
Welding wire
|
Standard
|
ASTM B164
|
ASTM B564
|
ASTM B165
|
ASTM B127
|
ERNiCu-7
|
Size Range
|
|
Wire
|
dia 0.025-10mm
|
Ribbon
|
(0.05-0.2)*(0.5-6.0)mm
|
Strip
|
(0.05-0.5)*(5-200)mm
|
Bar
|
8.00-200.00mm
|
Plate
|
custom made
|
Density
|
8.9 g/cm3
|
Tensile Strength ksi (min)
|
462
|
Yield Strength 0.2% ksi (min)
|
148
|
Elongation δ5 (%)
|
40
|
Melting point
|
1435-1446°C
|
Applications
Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
* Flue gas desulfurization systems
* Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
* Sour gas wells
* Pulp and paper production
* Waste treatment
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.
Incoloy alloy: Incoloy 800,800H,800HT,825,925.
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.
Monel Alloy: Monel 400,K500.
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
