| Place of Origin: | jiangsu |
|---|---|
| Brand Name: | XFT |
| Certification: | SGS CO Form E |
| Model Number: | 316 201 316L 304 410 |
| Minimum Order Quantity: | 100ton |
| Packaging Details: | Kraft paper, wooden case, packaging according to customer requirments |
| Payment Terms: | L/C, D/P, T/T |
| Name: | Stainless Steel Welded Pipe | Shape: | Round, Square, Rectangle |
|---|---|---|---|
| Length: | Customized | Thickness: | 0.3-30mm |
| Type: | Seamless/Welded | Tolerance: | ±0.02mm |
| Size: | Customized | Standard: | ASTM, AISI, GB, JIS, DIN, EN |
| Processing Service: | Bending, Welding, Punching, Cutting, Moulding | ||
| High Light: | ASTM stainless seamless steel pipe,stainless seamless steel pipe 304,round 304 stainless steel seamless pipe |
||

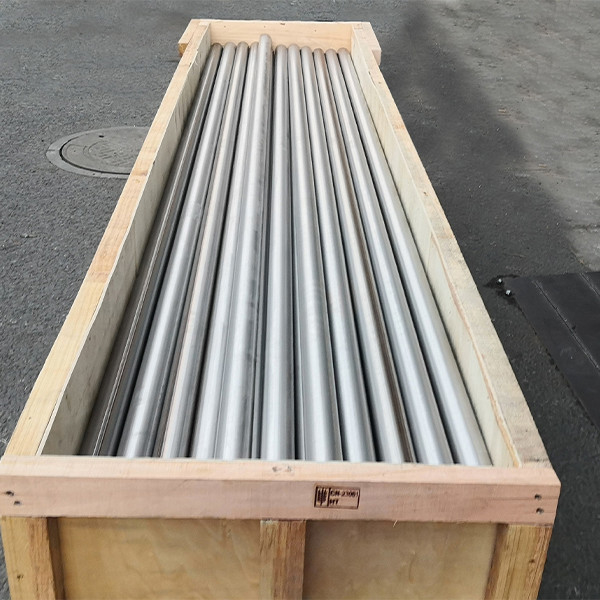

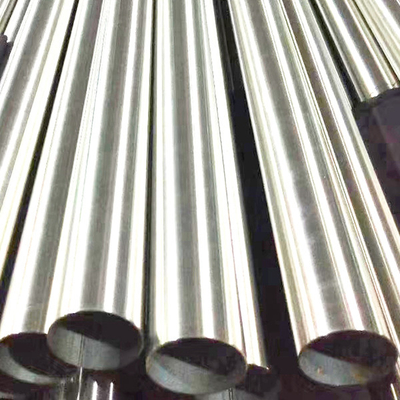

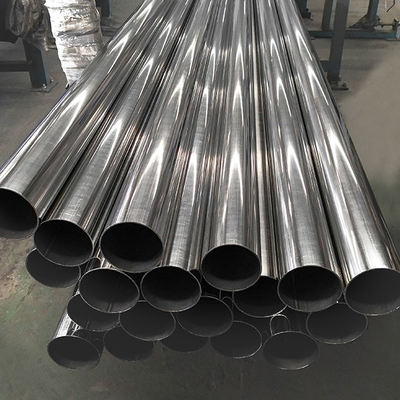

304 Round Stainless Steel Pipe seamless Stainless Steel Pipe/Tube
|
Description
|
||
|
Type:
|
tube
|
|
|
Outer Diameter
|
6-2500mm, (3/8"-100")
|
|
|
Thickness
|
0.3-150mm,(SCH10-XXS)
|
|
|
Length:
|
2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc
|
|
|
Standard:
|
ASTM,AISI,JIS,,GB, DIN,,EN
|
|
|
Surface:
|
BA,2B,NO.1,NO.4,4K,HL,8K
|
|
|
Application:
|
It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture,and ship components.It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts,springs, and screen mesh etc.
|
|
|
Certification:
|
ISO, SGS,BV
|
|
|
Technique:
|
Cold Drawn Seamless Tube / Welded pipe
|
|
|
Edge:
|
Mill Edge Slit Edge
|
|
|
Quality:
|
SGS Inspection
|
|
|
Grade (ASTM UNS)
|
201,304,304L,321,316,316L,317L,347H,309S,310S,904L,
S32205,2507,254SMOS,32760,253MA,N08926 |
|
|
Grade (EN)
|
1.4301,1.4307,1.4541,1.4401,1.4404,1.4571,1.4438,1.4539,1.4547,
1.4529,1.4562,1.4410,1.4878,1.4845,1.4828,1.4876,2.4858,2.4819 |
|
|
Main market:
|
Asia/Europe/ South America
|
|
|
Supply Ability:
|
5000 Ton/Tons per Month
|
|
|
Packaging & Delivery
Packaging Details in bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands |
||
|
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
||
|
Spezifikation
|
|
|
DN15
|
1,8mm 2mm 2,2mm 2,5mm 2,75mm
|
|
DN20
|
1,8mm 2mm 2,2mm 2,5mm 2,75mm
|
|
DN25
|
1,8mm 2mm 2,2mm 2,5mm 2,75mm 3mm 3,25mm
|
|
DN32
|
1,8mm 2mm 2,2mm 2,5mm 2,75mm 3mm 3,25mm
|
|
DN40
|
1,8mm 2mm 2,2mm 2,5mm 2,75mm 3mm 3,25mm 3,5mm
|
|
DN50
|
1,8mm 2mm 2,2mm 2,5mm 2,75mm 3mm 3,25mm 3,5mm
|
|
DN65
|
2,2mm 2,5mm 2,75mm 3mm 3,25mm 3,5mm 3,75mm
|
|
DN80
|
2,2mm 2,5mm 2,75mm 3mm 3,25mm 3,5mm 3,74mm 4mm
|
|
DN150
|
2,5mm 2,75mm 3mm 3,25mm 3,5mm 3,75mm 4mm 4,25mm
|
|
DN200
|
3mm 3,25mm 3,5mm 3,75mm 4mm 4,25mm 4,5mm 4,75mm 5mm 5,5mm 5,75mm 6mm
|
|
Outside Diameter
|
Thickness
|
Length
|
|
|
<25.4mm
|
±0.10mm
|
±10%
|
OD＜50.8mm+3.0mm-0.mm
|
|
≥25.4~38.1mm
|
±0.15mm
|
||
|
≥38.1~50.8mm
|
±0.20mm
|
||
|
≥50.8~63.5mm
|
±0.25mm
|
||
|
≥63.5~76.2mm
|
±0.30mm
|
OD＜50.8mm+5.0mm-0.mm
|
|
|
≥76.2~101.6mm
|
±0.38mm
|
||
|
≥101.6~190.5mm
|
+0.38mm —0.64mm
|
||
|
≥190.5~228.6mm
|
+0.38mm —1.14mm
|
||
|
Outside Diameter
|
Thickness
|
Length
|
|
|
<38.1mm
|
±0.13mm
|
OD=12.7mm+15%
|
OD>38.1mm+3.2mm-0mm
|
|
≥38.1mm~88.9mm
|
±0.25mm
|
||
|
≥88.9mm~139.7mm
|
±0.38mm
|
||
|
≥139.7mm~203.2mm
|
±0.76mm
|
OD=12.7mm+10%
|
OD>38.1mm+4.8mm-0mm
|
|
≥2032mm~304.8mm
|
±1.01mm
|
||
|
≥304.8mm~355.6mm
|
±1.26mm
|
||
|
Outside Diameter
|
Thickness
|
Length
|
|
|
< 25.40mm
|
±0.13mm
|
±10.00%
|
OD>101.60mm+3.20mm -0mm
|
|
≥25.40mm~50.80mm
|
±0.20mm
|
||
|
≥50.80mm~76.20mm
|
±0.25mm
|
||
|
≥76.20mm~101.60mm
|
±0.38mm
|
OD>101.60mm+4.80mm -0mm
|
|
|
≥101.60mm~139.70mm
|
±0.38mm
|
||
|
≥139.70mm~203.20mm
|
±0.76mm
|
||
|
≥203.20mm~304.80mm
|
±1.27mm
|
||
Application
FAQ
Q1. Where is your factory ?
A1: Our company’s processing center is located in Wuxi, Jiangsu, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,
India, etc.
