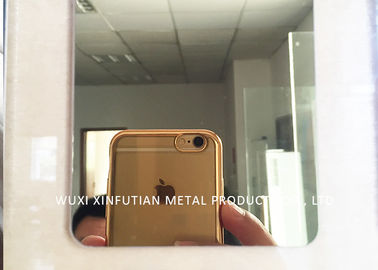

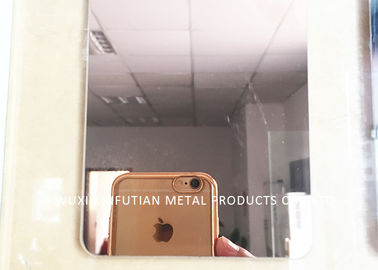

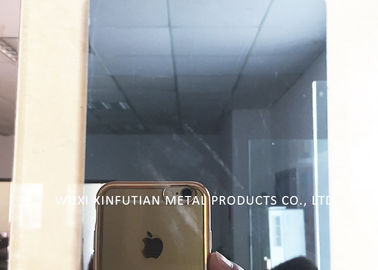

Laser Cutting 316 Stainless Steel Sheet Customized 8K Mirror Finish Surface

Basic Information
Place of Origin: NINGBO CHINA
Brand Name: TISCO, BAOSTEEL, JISCO, ZPSS
Certification: MTC BV SGS ISO
Model Number: 316 316l Stainless Steel Sheet
Minimum Order Quantity: 1 TON
Price: Negotiation
Packaging Details: Standard Seaworthy package or as the customer's requirement
Delivery Time: 7-15 Working days
Payment Terms: T/T L/C at sight
Supply Ability: 1000 Ton per Month
Detail Information
Material: 316 Stainless Steel Sheet Color: Bright 2B Finshed
Surface: 2B BA No.4 6k 8k Hairline Embossed Etched, Size: 4(1219MM)X8 (2438MM) Or As Request
Type: Sheet,plate Technology: Clod Rolled
High Light:

316 stainless steel plate

,

316l stainless steel plate


Product Description

Laser Cutting Customized BA Finish316 316L 316Ti Stainless Steel Sheet



Type 316L is a variant of Type 316 and differs by having a lower Carbon content as well as slightly lower yield and tensile strengths. Type 316L offers improved weldability and also reduces the possibility of lower corrosion resistance around welded areas.



1. Products Details



Commodity 300 Series 316 Stainless Steel Plate
Grade 301,302,304,304L,316,316L,310S,309S,321,301,310
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.3mm-3.0mm
Width 1000,1219,1250,1500mm, or as your requirements
Length 2000,2438,2500,3000,6000mm, or as your requirements
Surface No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film.
Standard ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery 5-7 days after confirming the order
MOQ 1 Ton

2. Chemical Properties:

  C Mn Si P S Cr Mo Ni N
316
(S31600)
0.08
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max
316L
(S31603)
0.03
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max

Mechanical Properties:

Grade Tensile Strength
ksi (min)
Yield Strength
0.2% ksi (min)
Elongation % Hardness (Brinell) MAX Hardness
(Rockwell B) MAX
316
(S31600)
75 30 40 217 95
316L
(S31603)
70 25 40 217 95




3. 316L  316  316Ti PROCESSING  OF Laser Cutting



And compared to traditional oxygen acetylene, such as plasma cutting technology, laser cutting speed, narrow kerf width, small heat affected zone, vertical degree good, trimming smooth kerf edge, at the same time can be variety of laser cutting materials, including carbon steel, stainless steel, alloy steel, wood, plastic, rubber, cloth, quartz, ceramic, glass, composite materials, etc.With the rapid development of market economy and the progress of science and technology, laser cutting technology has been widely used in automobile, machinery, electricity, hardware and electrical appliances and other fields.



Laser Cutting 316 Stainless Steel Sheet Customized 8K Mirror Finish Surface 0
