| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO |
| Model Number: | 200,300 Series |
| Minimum Order Quantity: | 1 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 5-10 working days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 1000 ton/Month |
| Finish: | Bright | Use: | Industry,Construction |
|---|---|---|---|
| Type: | H,U,T,flat | Length: | 6m Or As Customized |
| Technology: | Hot Rolled | Dimension: | 5-500mm |
| High Light: | stainless steel angle bar,stainless steel channel |
||

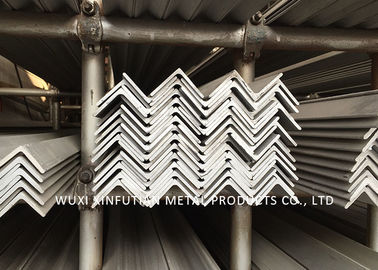

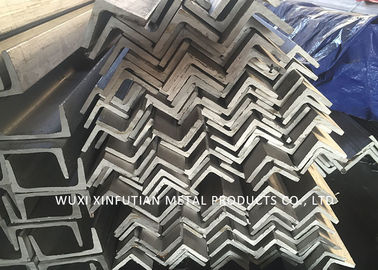

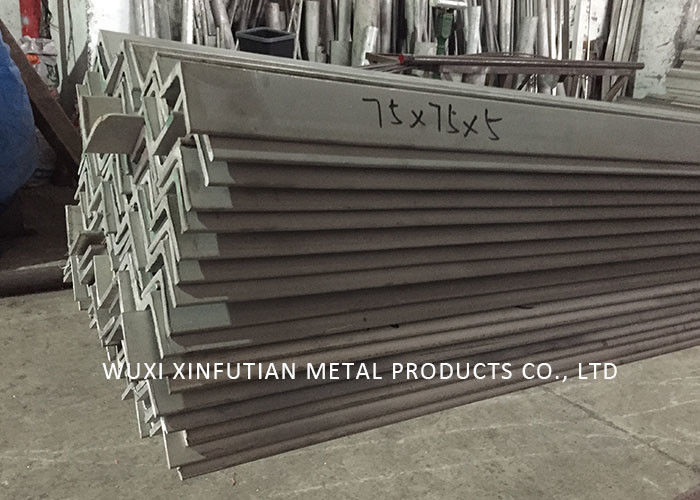

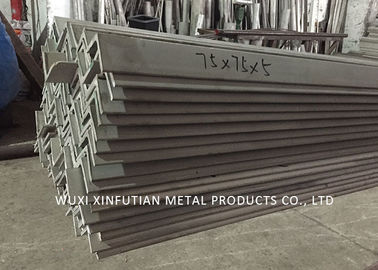

201 Pickled Stainless Steel Angle Bar ASTM A479 For Industry Use
Specification
| Standard |
ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5,DIN 17440,GB/T 1220 |
|
| Related Material |
304,304L,309S,310S,316,316L,316Ti,317,317L,321,347H,201,202, 410,420,430,etc |
|
| Type | Round,square,hexagonal,flat,angle | |
| Surface | Pickled,Black,Bright,Polishing,Blasting,etc | |
| Specifications | Round bar | Diameter: 3mm~800mm |
| Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
| Square bar | Size: 4mm*4mm~100mm*100mm | |
| Flat bar | Thickness: 2mm~100mm | |
| Width: 10mm~500mm | ||
| Hexagonal | Size: 2mm~100mm | |
| Length | 6m,5.8m,12m or as required | |
| Price Term |
EX-Work, FOB, CFR, CIF,CNF |
|
201/202/304/321/316 etc Stainless Steel Angle In Stock And Theoretical Weight Table
| Specifications | Thickness(mm) | |||||||
| Amm*Bmm | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| 20*20 | 0.894 | 1.13 | 1.38 | |||||
| 25*25 | 1.13 | 1.45 | 1.77 | 2.06 | ||||
| 30*30 | 1.37 | 1.77 | 2.17 | 2.53 | ||||
| 35*35 | 1.61 | 2.09 | 2.97 | 3.01 | ||||
| 40*40 | 1.85 | 2.41 | 3.40 | 3.49 | ||||
| 45*45 | 2.12 | 2.76 | 3.79 | 4.00 | ||||
| 50*50 | 2.36 | 3.07 | 4.58 | 4.46 | 5.13 | 5.76 | 6.42 | 7.06. |
| 60*60 | 5.03 | 5.42 | 6.24 | 7.03 | ||||
| 63*63 | 5.42 | 5.95 | 6.84 | 7.71 | 8.60 | 9.48 | ||
| 70*70 | 5.82 | 6.42 | 7.39 | 8.34 | 9.31 | 10.3 | ||
| 75*75 | 6.89 | 7.95 | 8.97 | 10.0 | 11.1 | |||
| 80*80 | 7.37 | 8.50 | 9.61 | 10.7 | 11.8 | |||
Application:
Food processing equipment, particularly in beer brewing, milk processing & wine making.
Kitchen benches, sinks, troughs, equipment and appliances
Architectural panelling, railings & trim
Chemical containers, including for transport
Heat Exchangers
Woven or welded screens for mining, quarrying & water filtration
Threaded fasteners
Springs
