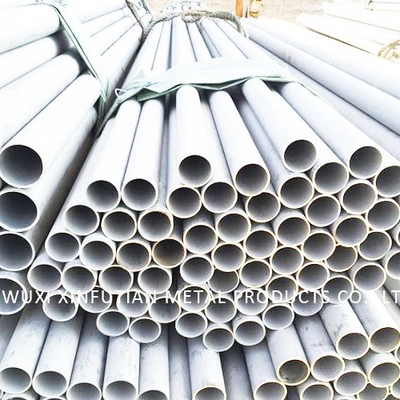

2507 Duplex Stainless Steel Pipe / Stainless Steel Seamless Tube Free Sample

Duplex Stainless Steel Seamless Industrial Pipe Diameter 3.0-500mm 2507

Standards

ASTM/ASME:A240 - UNS S32750
EURONORM:1.4410 - X2 Cr Ni MoN 25.7.4
AFNOR:Z3 CN 25.06 Az
DIN/EN 1.4410,ASME SA-240

Duplex 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum, and nickel levels provide excellent resistance to pitting, crevice, and general corrosion.

1. Products Details

WUXI AOXIANG METAL PRODUCTS CO., LTD inventory now includes Duplex 2507, which is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel. This alloy is designed for applications which require exceptional strength and corrosion resistance; examples include applications in chemical processing, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity and a low coefficient of thermal expansion. The high chromium, molybdenum, and nickel levels provide excellent resistance to pitting, crevice, and general corrosion.

Chemical Properties

Mechanical Properties

1.2507 duplex stainless steel pipe mechanical properties at room temperature

Pipe:thickness≤20mm ；δb/MPa:800-1000 ,δ0.2/MPa:≥550 ,δ5/%:≥25 ,(HV):290

2.2507 duplex stainless steel plate in the mechanical properties of room temperature of -200 ℃ :

/℃ δb/MPa
Room Temperature ≥530
Sheet 100 ≥450
200 ≥400

3.Mechanical properties of 2507 large-diameter seamless tube

Dia*thickness       δb/MPa  δ0.2/MPa   δ5/% (HV)
273.0mm×4.19mm   894      644          40      284
323.9mm×4.57mm   858      662          45       270
406.4mm×4.74mm   854      657          41       272


2. Corrosion

General Corrosion
1). high chromium and molybdenum content of 2507 makes it extremely resistant to uniform corrosion by organic acids like formic and acetic acid.
2). provides excellent resistance to inorganic acids, especially those containing chlorides.
3). can be used in dilute hydrochloric acid.
4). Pitting need not be a risk in the zone below the borderline in this figure, but crevices must be avoided.
Intergranural Corrosion
1). Low carbon content greatly lowers the risk of carbide precipitation at the grain boundaries during heat treatment.
2). Is highly resistant to carbide-related intergranular corrosion.
Stress Corrosion Cracking
1). Duplex structure of 2507 provides excellent resistance to chloride stress corrosion cracking (SCC).
2). Superior to 2205 in corrosion resistance and strength.
3). 2507 is especially useful in offshore oil and gas applications and in wells with either naturally high brine levels or where brine has been injected to enhance recovery.
Pitting Corrosion
1). Different testing methods can be used to establish the pitting resistance of steels in chloride-containing solutions.
Crevice Corrosion
1). Highly resistant to crevice corrosion.

3. Payment ,Shipping


Packing: with bundles, seaworthy packing for sea transportation ( big order in bulk; small order packed by strips or as the customers' requirement); wooden pallet or iron pallet is prerequisite for stainless products;

In terms of stainless products, we will use wooden pallet or iron pallet which has the polyethylene partition to isolate products which could protect the moisture.

Delivery: 7-15days after receiving unfront payment.
