UNS S41000 Stainless Steel Strip Coil 410 12Cr13 4.0mm Width 500mm china stainless steel strip
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Construction, Decoration, Industry | Type | Plate, Coil, Sheet & Coil |
|---|---|---|---|
| Standard | ASTM, AISI, JIS, DIN, GB | Surface | 2B, BA, No.4, 8K, HL,NO1 |
| Edge | Mill Edge/ Slitting Edge Stainless Steel | Product Name | Stainless Steel Coil/strip/pipe Best Selling Stainless Steel Products |
| Service | Good After-sale Service, ODM/OEM,, Free Sample Third Party Test | Price Term | CIF CFR FOB EX-WORK, CIF, FOB, CFR, EX-WORK |
| High Light | 12Cr13 410 Stainless Steel Strip Coil,UNS S41000 Stainless Steel Strip Coil,Width 500mm Stainless Steel Strip Coil |
||
Product Description
Stainless Steel Grade 410 (UNS S41000) 12Cr13 Strip 4.0mm Width Less Than 500mm
Description
Grade 410 stainless steels are general-purpose martensitic stainless steels containing 11.5% chromium, which provide good corrosion resistance properties. However, the corrosion resistance of grade 410 steels can be further enhanced by a series of processes such as hardening, tempering and polishing. Quenching and tempering can harden grade 410 steels. They are generally used for applications involving mild corrosion, heat resistance and high strength.
Martensitic stainless steels are fabricated using techniques that require final heat treatment. These grades are less resistant to corrosion when compared to that of austenitic grades. Their operating temperatures are often affected by their loss of strength at high temperatures, due to over-tempering and loss of ductility at sub-zero temperatures.
Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | |
|---|---|---|---|---|---|---|---|---|
| 410 | min. max. |
- 0.15 |
- 1 |
- 1 |
- 0.04 |
- 0.03 |
11.5 13.5 |
0.75 |
Mechanical Properties
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50 mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 480 min | 275 min | 16 min | - | - |
| 204 | 1475 | 1005 | 11 | 400 | 30 |
| 316 | 1470 | 961 | 18 | 400 | 36 |
| 427 | 1340 | 920 | 18.5 | 405 | # |
| 538 | 985 | 730 | 16 | 321 | # |
| 593 | 870 | 675 | 20 | 255 | 39 |
| 650 | 300 | 270 | 29.5 | 225 | 80 |
Possible Alternative Grades
The table below provides the suitable alternative grades to 410 stainless steels:
| Grade | Reasons for choosing the grade |
|---|---|
| 416 | High machinability is required, and the lower corrosion resistance of 416 is acceptable. |
| 420 | A higher hardened strength or hardness than can be obtained from 410 is needed. |
| 440C | A higher hardened strength or hardness than can be obtained even from 420 is needed. |

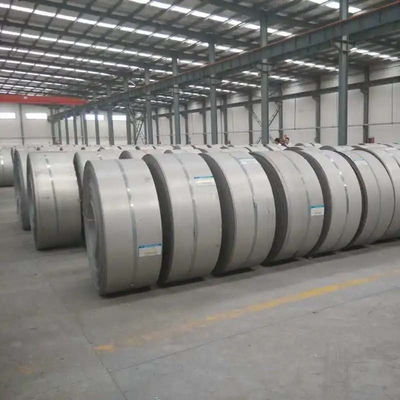

Workshop

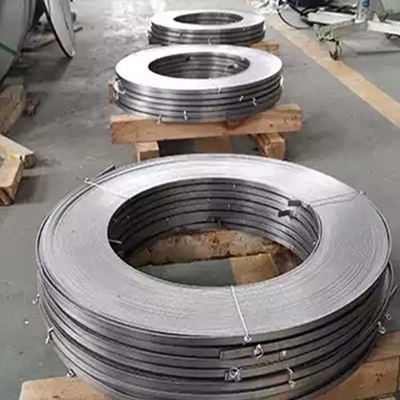

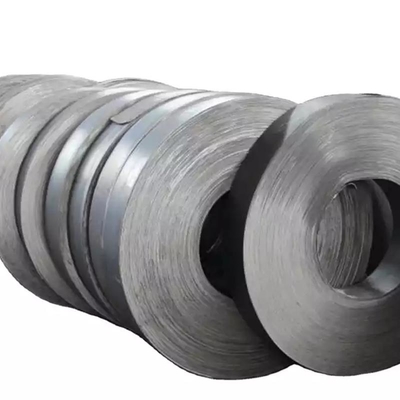

Product Display
Packing and transportation
Our company have professional team who can adopt developed packaging technology to assure no any damages of products during transportation.
- Standard export packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
- Eye to wall and eye to sky are both available;
- By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.
Applications
Grade 410 stainless steels find applications in the following:
Bolts, screws, bushings and nuts
Petroleum fractionating structures
Shafts, pumps and valves
Mine ladder rungs
Gas turbines
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 7-15 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
