| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 309S |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Name: | Stainless Steel Pipe | Color: | Natural Surface |
|---|---|---|---|
| Thickness: | 0.01mm-2mm | Steel Grade: | 304 304L 316L |
| Stocks Or Not: | Enough Stocks | Tolerance: | ±1% |
| High Light: | 320 grit stainless steel dairy pipe,304 stainless steel dairy pipe,320 grit food grade stainless steel tube |
||

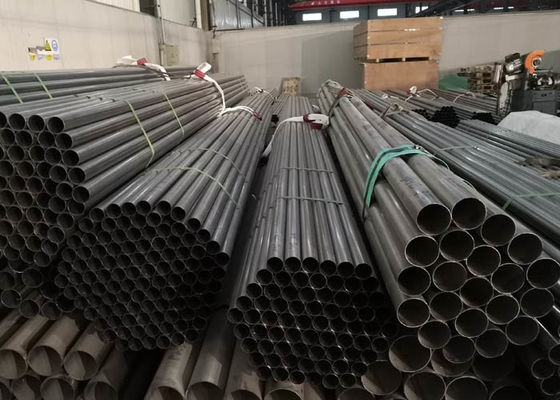

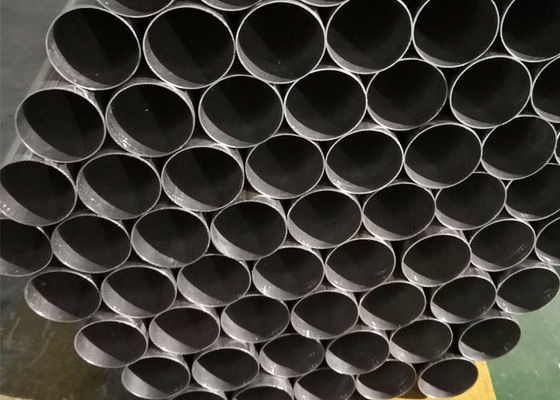

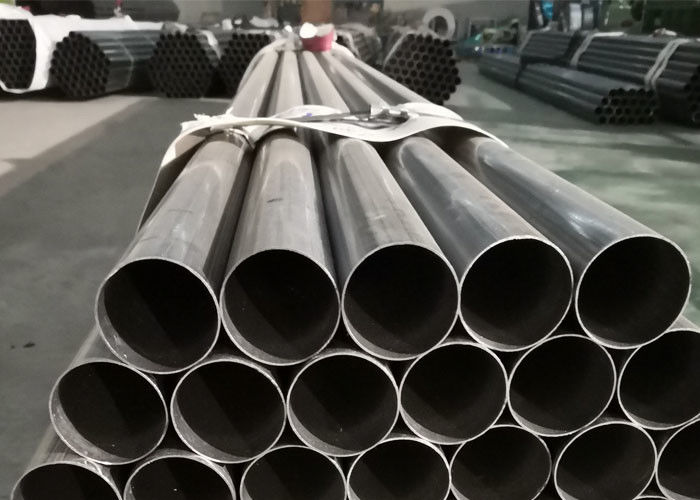

304 316 Food Hygiene Grade Stainless Steel Pipe 0.01mm-2mm Thickness
other further info description

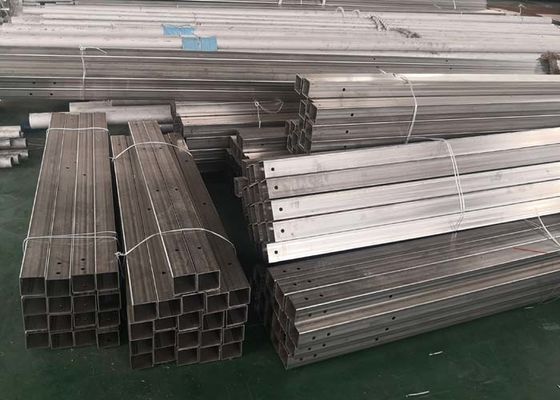

| shape | round/square/rectangular/oval/specia section |
| tolerance | outer diameter: +/- 0.2mm |
| thickness: +/- 0.02mm | |
| length: +/- 5mm | |
| inner packing | plastic bag(every pipe/ tube is sleeved in plastic bag individually) |
| outer packing | woven packaging (standard woven packed for each bundle, around 50-500kgs per, as customers' request) |
| wooden box (custom-made strong wooden box ,each box can load 300-1000kg) | |
| carton packaging(be used for short pipe/ tube) | |
| surface | 320grit , 240 grit,180grit, satin/hairline 600 grit , 400 grit, mirror finish embossing |
| term of payment | t / t or l/c at sight |
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 201 | 0.12 | 0.75 | 7.00 | 0.045 | 0.045 | 1.00-1.28 | 13.70-15.70 |
| 202 | 0.15 | 1 | 2.25 | 0.045 | 0.045 | 4.07-4.17 | 14.00-16.00 |
| 304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
| 309 | 0.15 | 0.75 | 2 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310S | 0.08 | 1.5 | 2 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 10.00-15.00 | 16.00-18.00 |
| 321 | 0.04-0.10 | 0.75 | 2 | 0.045 | 0.03 | 9.00-13.00 | 17.00-20.00 |
| 405 | 0.08 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 11.5-13.5 |
| 409 | 0.089 | 1 | 1 | 0.045 | 0.05 | 0.06 | 10.50-11.75 |
| 410 | 0.15 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 11.5-13.5 |
| 420 | 0.16-0.25 | 1 | 1 | 0.04 | 0.03 | 0.06 | 12.00-14.00 |
| 430 | 0.12 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 16.00-18.00 |
| 904L | 0.02 | 1 | 2 | 0.045 | 0.03 | 23.00-28.00 | 19.00-23.00 |
Advantages :Our products are heavily favored for their standard material , excellent finish, optimum strength, long life, corrosion resistance , competitive price and reliable services .
We have exported to Ecuador, Singapore, Australia, Vietnam, Indonesia, Malaysia, Turkey, South Africa, Chile, Mexico, Brazil, Peru, Ghana, Bahrain etc. So we are rich in export experience and specialize in stainless steel .
