Heat Resistance 2205 Duplex Stainless Steel Plate Thickness 0.6 - 60mm

China Heat Resistance 2205 Duplex Stainless Steel Plate Thickness 0.6 - 60mm supplier

Large Image :  Heat Resistance 2205 Duplex Stainless Steel Plate Thickness 0.6 - 60mm

Product Details:

Place of Origin: Shanghai
Brand Name: TISCO ,BAOSTEEL
Certification: ISO,BV
Model Number: 2205/1.4462/UNS S32205/S31803

Payment & Shipping Terms:

Minimum Order Quantity: 2 ton
Price: Negotiation
Packaging Details: Standard Seaworthy package or as the customer's requirement.
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 1000 ton /Month
Contact Now
Detailed Product Description
Technology: Cold And Hot Rolled Type: Sheet,Rod,Pipe,Coil
Item: Stainless Steel Color: Natural
Shipping: Air,Sea Thickness: 0.3-4.0mm

Thickness 0.6 - 60mm 2205 1.4462 Duplex Stainless Steel Sheet UNS S32205/S31803

Standards

ASTM/ASME ................A240 UNS S32205/S31803

EURONORM ................1.4462 X2CrNiMoN 22.5.3

AFNOR..........................Z3 CrNi 22.05 AZ

DIN ..............................W.Nr 1.4462

WUXI AOIXANG METAL PRODUCTS CO., LTD now includes Duplex 2205 (UNS S32205 / S31803), in sheet, sheet coil, plate, plate coil, round bar, processed flat bar and tubular products. Duplex 2205 is ideally suited for high-pressure and highly corrosive environments.

Products Details

Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades. It also demonstrates good fatigue strength, as well as outstanding resistance to stress corrosion cracking, crevice, pitting, erosion, and general corrosion in severe environments.

Chemical Properties



  C Mn Si P S Cr Mo Ni N
2205
(S31803)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 21.0
max: 23.0
min: 2.5
max: 3.5
min: 4.5
max: 6.5
min: 0.08
max: 0.20
2205
(S32205)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 22.0
max: 23.0
min: 3.0
max: 3.5
min: 4.5
max: 6.5
min: 0.14
max: 0.20


Mechanical Properties



Grade Tensile Strength
ksi (min)
Yield Strength
0.2% ksi (min)
Elongation % ​Hardness (HB) MAX
2205 90 65 25 217


Corrosion Resistance


1. Due to its high chromium, molybdenum, and nitrogen content, Duplex 2205 demonstrates superior corrosion resistant properties to 316 and 316L in most environments
2. Chromium, molybdenum, and nitrogen content also provide high resistance to pitting and crevice corrosion, even in oxidizing and acidic solutions
3. Resistant to chloride stress corrosion cracking and temperatures of up to about 302°F (150°C)
4. The presence of ferrite provides for good performance of Duplex 2205 in caustic environments

Heat Resistance


1. Similar to other duplex stainless steels, Duplex 2205 has good oxidation resistance at high temperatures
2. Subject to embrittlement when exposed to temperatures above 572°F (300°C) even when exposed for short periods of time; Duplex 2205 is therefore not recommended for use above 572°F (300°C)

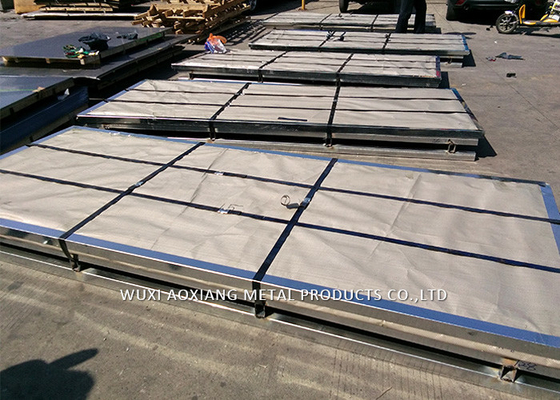

Shipping:



Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel strip or as required

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS



Applications


1). Chemical processing, transport and storage – pressure vessels, tanks, piping, and heat exchangers
2). Oil and gas exploration and processing equipment – piping, tubing, and heat exchangers
3). Marine and other high chloride environments
4). Effluent scrubbing systems
5). Pulp and paper industry – digesters, bleaching equipment, and stock-handling systems
6). Cargo tanks for ships and trucks
7). Food processing equipment
8). Biofuels plants
