NO.1 Finish Duplex Steel Plate 2205 / Stainless Steel Duplex S31803 Sample Free

China NO.1 Finish Duplex Steel Plate 2205 / Stainless Steel Duplex S31803 Sample Free supplier
NO.1 Finish Duplex Steel Plate 2205 / Stainless Steel Duplex S31803 Sample Free supplier NO.1 Finish Duplex Steel Plate 2205 / Stainless Steel Duplex S31803 Sample Free supplier NO.1 Finish Duplex Steel Plate 2205 / Stainless Steel Duplex S31803 Sample Free supplier

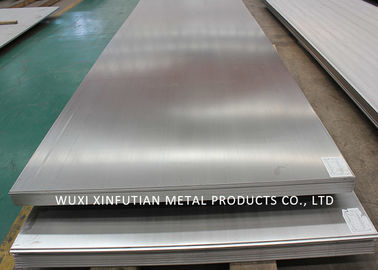

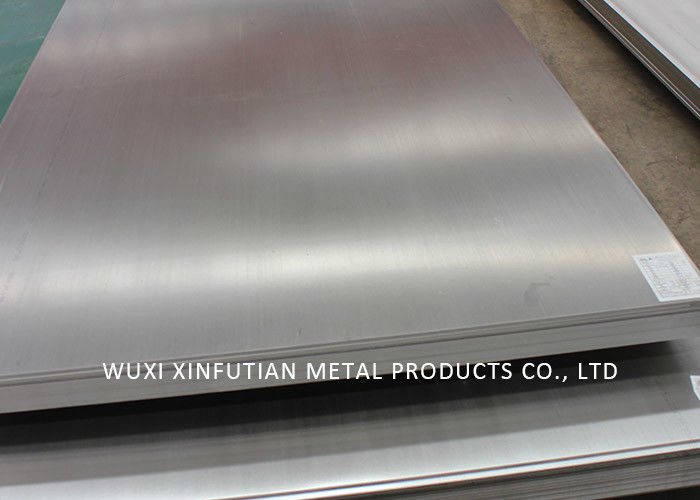

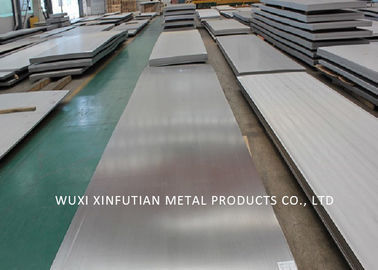

Large Image :  NO.1 Finish Duplex Steel Plate 2205 / Stainless Steel Duplex S31803 Sample Free

Product Details:

Place of Origin: Shanghai
Brand Name: TISCO ,BAOSTEEL
Certification: ISO,BV
Model Number: 2205/1.4462/UNS S32205/S31803

Payment & Shipping Terms:

Minimum Order Quantity: 2 ton
Price: Negotiation
Packaging Details: Standard Seaworthy package or as the customer's requirement.
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 2000 Ton/Month
Contact Now
Detailed Product Description
Technology: Hot Rolled Type: Sheet,Rod,Pipe,Coil
Item: Stainless Steel Color: Natural
Shipping: Air,Sea Thickness: 3-120mm

NO.1 Finish Duplex Steel Plate 2205 / S31803 Duplex Stainless Steel Plate



Standards

ASTM/ASME ................A240 UNS S32205/S31803

EURONORM ................1.4462 X2CrNiMoN 22.5.3

AFNOR..........................Z3 CrNi 22.05 AZ

DIN ..............................W.Nr 1.4462

WUXI XINFUTIAN METAL PRODUCTS CO., LTD now includes Duplex 2205 (UNS S32205 / S31803), in sheet, sheet coil, plate, plate coil, round bar, pipe processed flat bar and tubular products. Duplex 2205 is ideally suited for high-pressure and highly corrosive environments.

1. Products Details

Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades. It also demonstrates good fatigue strength, as well as outstanding resistance to stress corrosion cracking, crevice, pitting, erosion, and general corrosion in severe environments.

Chemical Properties



  C Mn Si P S Cr Mo Ni N
2205
(S31803)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 21.0
max: 23.0
min: 2.5
max: 3.5
min: 4.5
max: 6.5
min: 0.08
max: 0.20
2205
(S32205)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 22.0
max: 23.0
min: 3.0
max: 3.5
min: 4.5
max: 6.5
min: 0.14
max: 0.20


Mechanical Properties



Grade Tensile Strength
ksi (min)
Yield Strength
0.2% ksi (min)
Elongation % ​Hardness (HB) MAX
2205 90 65 25 217


Applications


1). Chemical processing, transport and storage – pressure vessels, tanks, piping, and heat exchangers
2). Oil and gas exploration and processing equipment – piping, tubing, and heat exchangers
3). Marine and other high chloride environments
4). Effluent scrubbing systems
5). Pulp and paper industry – digesters, bleaching equipment, and stock-handling systems
6). Cargo tanks for ships and trucks
7). Food processing equipment
8). Biofuels plants

2. Process

Welding Characteristics
A. Possesses good weldability
B. Should not generally be welded without filler metal as this may result in excessive ferrite
Heat-Treatment
A. Annealing temperature range is 1868 to 2012°F (1020 to 1100°C)
B. Cannot be hardened by heat treatment – but Duplex 2205 does work-harden
C. Special consideration is needed to compensate for a higher coefficient of thermal expansion to avoid warping and distortion


Process -hot forming
Most Duplex 2205 producers recommend a maximum hot forming temperature between 2010 and 2100°F (1100 to 1150°C). If the shape of the work piece is not compact, the edges may be significantly cooler than the bulk, and there is risk of cracking in the cooler regions.


Process -Cold Forming
Duplex 2205 has shown good formability in a variety of fabrications. The high strength of Duplex 2205 can pose problems. Even when the equipment has sufficient power, allowance must be made for higher spring-back caused by the grade’s high strength.


Machinability
Duplex 2205 is somewhat more difficult to machine than the 300 series austenitic stainless steels. Higher cutting forces are required and more rapid tool wear is typical. Some guidelines for machining are: A) Use powerful, rigid machines with extremely strong rigid mounting of tools and work piece, B) Minimize vibration by keeping the tool extension as short as possible, C) Use a nose radius on the tool, no longer than necessary, for carbides that have a sharp edge while still providing adequate strength, D) Design machining sequences to always provide for a depth of cut below the work hardened layer resulting from the previous passes

3. Shipping:



MOQ 1 Ton
Price Term FOB
Payment L/C at sight or 30% TT as deposit
Delivery Time 20-30 days after receiving deposit by T/T or L/C.
Sample Samples free and express charges bear by you

Standard export package with water proof paper, and metal pallet, and angle bar protection, and steel strip or as required

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
NO.1 Finish Duplex Steel Plate 2205 / Stainless Steel Duplex S31803 Sample Free
