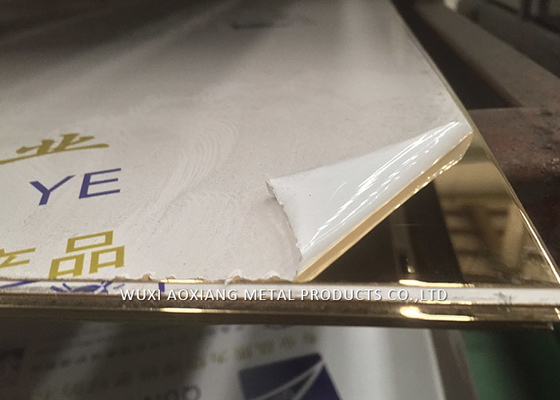

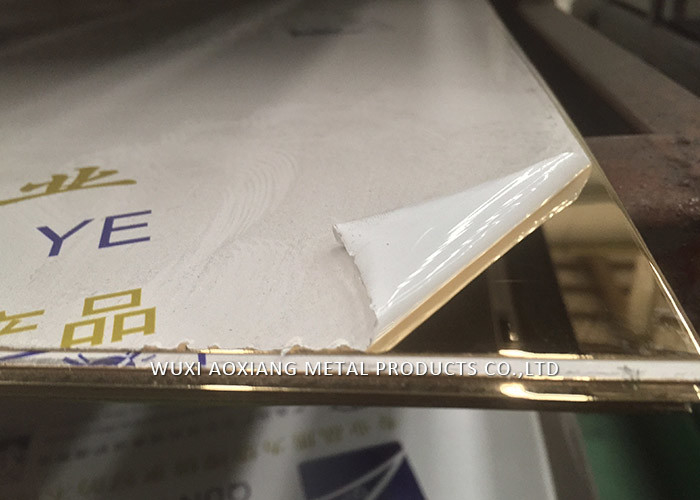

Yellow / Black Titanium Coated 316 SS Sheet 0.3 - 1.5mm Thickness For Decoration Film Protection
Place of Origin | Shanghai ,Shanxi |
---|---|
Brand Name | BAOSTEEL , TISCO ,HONGWANG ,LISCO |
Certification | ISO ,SGS,BV |
Model Number | 300 Series 316 |
Minimum Order Quantity | 1 ton according to products |
Price | Negotiation |
Packaging Details | Export Package |
Delivery Time | 5-10 working days |
Payment Terms | L/C, T/T, D/P, Western Union |
Supply Ability | 2000 ton/Month |
Thickness | 0.3-1.5mm | Finish | Yellow Black Titanium |
---|---|---|---|
Width | 1000mm,1219mm,1250mm,1500mm | Color | Natural Surface Or As Customized |
Market | USA ,the Middle East,South Africa | Length | 2500mm.6000mm |
High Light | 316 stainless steel sheet metal,316l stainless steel plate |
316 Industrial Yellow Black Titanium Coated Stainless Steel Sheet Decoratived Panel
WUXI AOXIANG METAL inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil, plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.
Products Details
Commodity | 300 Series 316 Stainless Steel Plate |
Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
Certification | SGS,BV,IQI,TUV,ISO,etc |
Thickness | 0.3mm-25mm |
Width | 1000,1219,1250,1500mm, or as your requirements |
Length | 2000,2438,2500,3000,6000mm, or as your requirements |
Surface | No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film. |
Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
Delivery | 5-7 days after confirming the order |
MOQ | 1 Ton |
Chemical Properties:
C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316 (S31600) | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | min: 16.0 max: 18.0 | min: 2.0 max: 3.0 | min: 10.0 max: 14.0 | 0.10 max |
316L (S31603) | 0.03 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | min: 16.0 max: 18.0 | min: 2.0 max: 3.0 | min: 10.0 max: 14.0 | 0.10 max |
Mechanical Properties:
Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
316 (S31600) | 75 | 30 | 40 | 217 | 95 |
316L (S31603) | 70 | 25 | 40 | 217 | 95 |
Equirements for Stainless Steel Surface Finish
1. No. 1 Finished by hot-rolling, annealing and pickling, characterized by white pickled surface
2. 2B Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface
3. BA Bright heat treatment after cold rolling
4. No. 4 Polishing with No. 150 to No.180 mesh abrasivesThe most popular finishes
5. HL Finished by continuous linear polishing
