Elliptical Rectangular 1inch Tubing Polished Colored 316 Stainless Steel Pipe

Place of Origin WUXI,WENZHOU
Brand Name XINFUTIAN
Certification BV,SGS
Model Number 304 316L
Minimum Order Quantity 2 ton
Price Negotiation
Packaging Details Plastic bags
Delivery Time 5-10 working days
Payment Terms D/A, L/C, T/T
Supply Ability 1500ton/Month
Product Details
Technolgy Welded Thickness 0.16-3.0mm
OD 8-140mm Length 6m OR As Customized
Grade 304 316l Finish Bright
High Light

stainless steel rectangular tubing

,

duplex stainless steel pipe

Leave a Message
Product Description

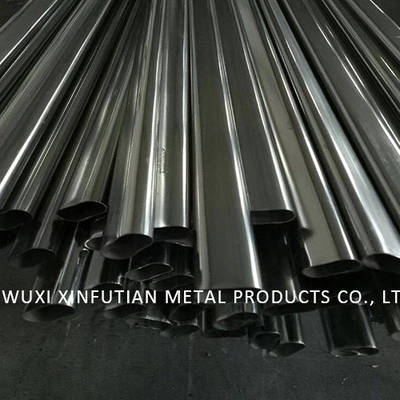

Stainless Steel Elliptical Rectangular Tubing / 316 Stainless Steel Pipe For Metal Tools



Material

304:0cr18ni9, 0cr17ni8

201:1cr17mn6ni5n,1cr13mn9ni1n

316:0cr17ni12 or as customer’s request

Size(round pipe)

9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6,

114.3, 127, 133, 159, 168, 219 mm or customized

Size (square pipe)

10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,36×23,

40×20,50×20,60×15,75×45,80×60,95×45,100×60,150×100 mm or customized

Size (oval pipe) 30×15,80×40 mm or customized
Thickness 0.24-3 mm
Length 6m or according to customer’s request
Outer diameter 6.35-219mm
Tolerance Outer diameter :±0.2mm
Thickness :±0.02mm
Length :±0.5mm





Chemical Composition
Material C Si Mn P S Cr Ni
201 ≤0.12 ≤0.75 9.5-12.5 ≤0.045 ≤0.03 13-16 0.8-1.5
304 ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤0.03 18-19 8-10
316 ≤0.08 ≤1.00 ≤2.0 ≤0.035 ≤0.03 10-14 16.0-18.5
430 ≤0.12 ≤0.75 ≤2.0 ≤0.04 ≤0.03 16-18 ≤0.6





























Application



Stainless steel pipe is an economical section steel, is an important product in the steel industry, can be widely used in life decoration and industry, many people on the market for the production of staircase handrails, window protection, railings, furniture and so on. Common are 201 and 304 two kinds of materials.
