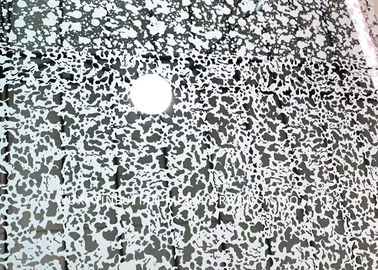

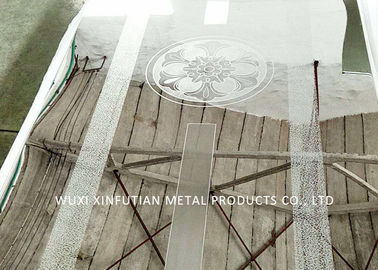

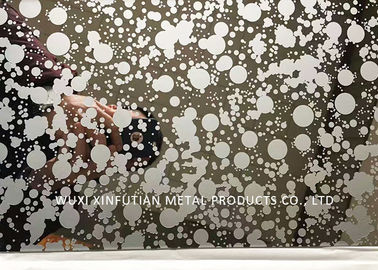

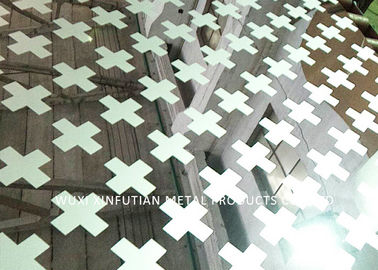

PVD Coating / Coloured Cold Rolled Stainless Steel Sheet 201 For Decoration

  • PVD Coating / Coloured Cold Rolled Stainless Steel Sheet 201 For Decoration
  • PVD Coating / Coloured Cold Rolled Stainless Steel Sheet 201 For Decoration
  • PVD Coating / Coloured Cold Rolled Stainless Steel Sheet 201 For Decoration
  • PVD Coating / Coloured Cold Rolled Stainless Steel Sheet 201 For Decoration
Place of Origin Jiangsu
Brand Name JISCOTISCO, BAOSTEEL, ZPSS, LISCO, ect
Certification ISO, SG, MTC
Model Number 304,201,202,316
Minimum Order Quantity 1 ton
Price Negotiation
Packaging Details Interlayer paper kraft paper Wooden pallet or according to customer's request.
Delivery Time 7-15 working days
Payment Terms L/C, T/T
Supply Ability 1000Ton Per Month
Product Details
Finish Mill Finish Material Cold Rolled Stainless Steel Sheet 446
Thickness 0.3-6mm Size 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm,
Sample Free Sample Color Brass Or Customer Requirements
Process Color Plating Process Pattern According To The Customer Request
High Light

cold rolled steel plate

,

cold rolled stainless steel
Leave a Message
Product Description



PVD Coating / Coloured Cold Rolled Stainless Steel Sheet 201 For Decoration

  • PVD coating is one of the best methods for enhancing thin film plating elements. The vacuum deposition method coats the product with a film of hard refractory material 1-2 microns thick.

    PVD coatings surpass traditional electroplated coatings, it has superior hardness and wears resistance. Here are the advantages of PVD coating:

    · PVD coating is harder and more corrosion resistant than coating applied by electroplating process.

    · PVD coatings do not discolor or tarnish, and have reasonably high corrosion resistance and do not suffer under UV radiation so easy.

    · More environmentally friendly than traditional coating processes such as electroplating or painting.

    · PVD coatings have excellent wear and abrasion resistance and it’s durable.



Detailed information



FINISH AND SPECIFICATION

No.1 A rough, dull surface, which results from hot rolling to the specified thickness, followed by annealing and descaling.
Range (mm) 1000 1219 1250 1500 1524
3.0-6.0 ◆ ◆ ◆ ◆ ◆
8.0~100.0   ◆     ◆
2D A dull finish which results from cold rolling followed by annealing and descaling, and may perhaps get a final light roll pass through unpolished rolls. A 2D finish is used where appearance is not a concern.
Range (mm) 1000 1219 1250 1500 1524
0.3-3.0 ◆ ◆ ◆ ◆ ◆
2B
(Mill Finish)		 A bright, cold-rolled finish resulting in the same manner as 2D finish, except that the annealed and descaled sheet received a final light roll pass through polished rolls. This is the general-purpose cold-rolled finish that can be used as is, or a preliminary step to polishing.
Range (mm) 1000 1219 1250 1500 1524
0.3-6.0 ◆ ◆ ◆ ◆ ◆
BA
(Bright Anneal)		 The bright annealed mill surface is obtained by annealing the material under an atmosphere, so that scale is not produced on the surface.
Range (mm) 1000 1219 1250 1500 1524
0.3-2.0 ◆ ◆ ◆
Brushed Finish
(No.3/No.4/No.5/No.6)		 This is a ground unidirectional finish obtained with 150/180/240/320 grit abrasive, which is characterized by parallel brushing lines, it is also known as Satin.
Range (mm) 1000 1219 1250 1500 1524
0.3-6.0 ◆ ◆ ◆ ◆ ◆
Scotch Brite It's a semi-dull finish with uniform grain, which is obtained using finer abrasives than No.4/NO.5/NO.6. This finish has smooth, soft and exquisite grains which has a low level of reflectivity and unidirectional texture.
Range (mm) 1000 1219 1250 1500 1524
0.3-3.0 ◆ ◆ ◆ ◆ ◆
Hairline Seemingly endless polishing lines extend uniformly along with the length of the coil give the hairline. It's a well-defined directional finish with long-grain and fine-line.
Range (mm) 1000 1219 1250 1500 1524
0.3-3.0 ◆ ◆ ◆ ◆ ◆


PACKING

  • Waterproof wrapping and wood board encase all the pack of the sheets, with metal edge protection for all top edges. The strap aligned from bottom bearer to the top, with edge protection on all top corners that meets the sheets
  • Wooden Pallets or customized Pallets are acceptable
  • Metal Pallets or customized Pallets are acceptable

PVD Coating / Coloured Cold Rolled Stainless Steel Sheet 201 For Decoration 0PVD Coating / Coloured Cold Rolled Stainless Steel Sheet 201 For Decoration 1
