| Place of Origin: | WUXI,WENZHOU |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | BV,SGS |
| Model Number: | 304 / 304L / 316 / 316L |
| Minimum Order Quantity: | 1 ton |
| Price: | Negotiation |
| Packaging Details: | Plastic bags |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T,D/A, L/C, MoneyGram |
| Supply Ability: | 1000 Ton/Month |
| Technolgy: | Welded | Thickness: | 0.16-3.0mm |
|---|---|---|---|
| OD: | 8-140mm | Length: | 6m Or As Customized |
| Grade: | 304 / 304L / 316 / 316L | Finish: | Bright |
| Quality: | High | ||
| High Light: | stainless steel rectangular tubing,duplex stainless steel pipe |
||

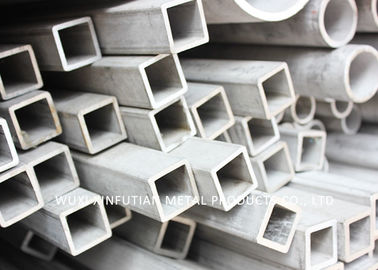

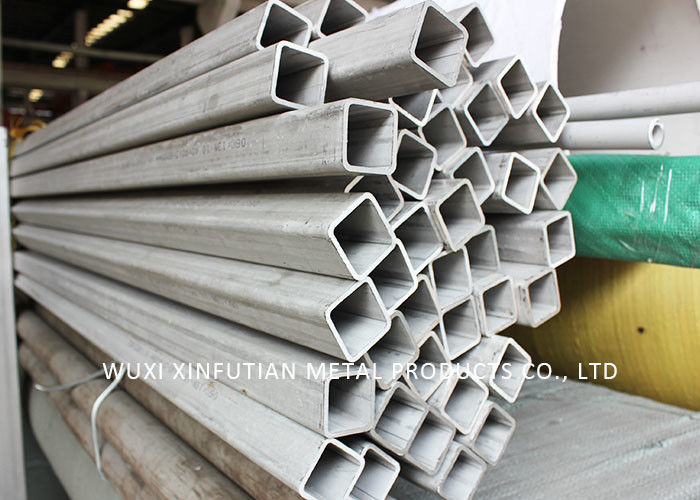

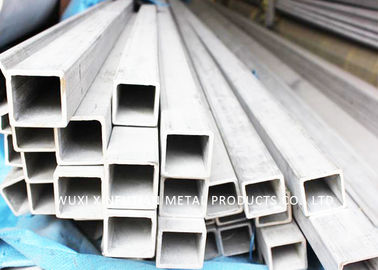

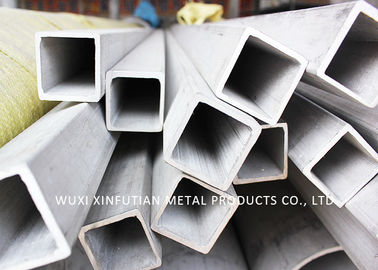

300 Series Industrial Stainless Steel Welded Tubes With 0.3-3MM Thickness
| Material |
304:0cr18ni9, 0cr17ni8 201:1cr17mn6ni5n,1cr13mn9ni1n 316:0cr17ni12 or as customer’s request |
| Size(round pipe) |
9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6, 114.3, 127, 133, 159, 168, 219 mm or customized |
| Size (square pipe) |
10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,36×23, 40×20,50×20,60×15,75×45,80×60,95×45,100×60,150×100 mm or customized |
| Size (oval pipe) | 30×15,80×40 mm or customized |
| Thickness | 0.24-3 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished |
| Finishing |
A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing for one pipe) |
| Chemical Composition | |||||||
| Material | C | Si | Mn | P | S | Cr | Ni |
| 201 | ≤0.12 | ≤0.75 | 9.5-12.5 | ≤0.045 | ≤0.03 | 13-16 | 0.8-1.5 |
| 304 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.03 | 18-19 | 8-10 |
| 316 | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.035 | ≤0.03 | 10-14 | 16.0-18.5 |
| 430 | ≤0.12 | ≤0.75 | ≤2.0 | ≤0.04 | ≤0.03 | 16-18 | ≤0.6 |
Application
Stainless steel pipe is an economical section steel, is an important product in the steel industry, can be widely used in life decoration and industry, many people on the market for the production of staircase handrails, window protection, railings, furniture and so on. Common are 201 and 304 two kinds of materials.
