| Place of Origin: | Shanxi |
|---|---|
| Brand Name: | TISCO ,BAOSTEEL |
| Certification: | ISO,BV |
| Model Number: | 304L |
| Minimum Order Quantity: | 1 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement. |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, D/A |
| Supply Ability: | 1000 TON/Month |
| Technology: | Cold And Hot Rolled | Type: | Sheet,Rod,Pipe,Coil |
|---|---|---|---|
| Item: | Stainless Steel | Color: | Natural |
| Shipping: | Air,Sea | Edge: | Slit Edge |
| High Light: | stainless steel sheet roll,cold rolled steel sheet in coil |
||

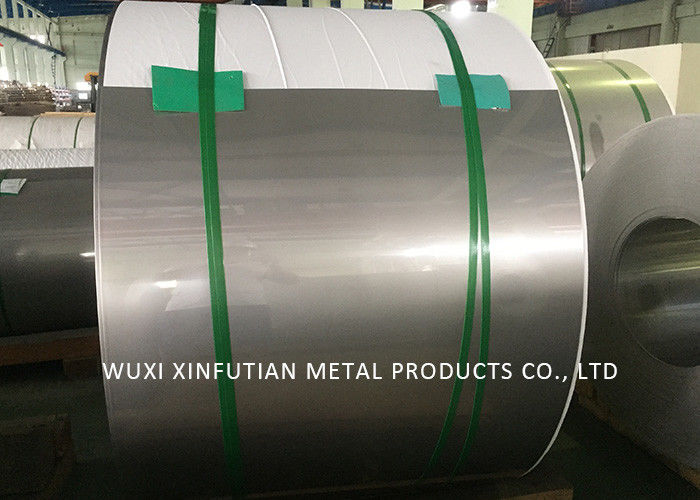

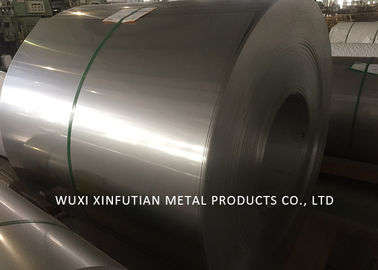

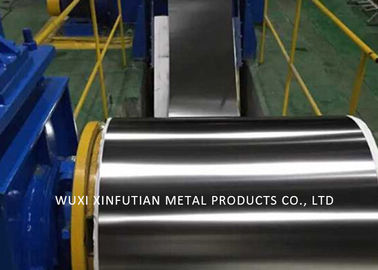

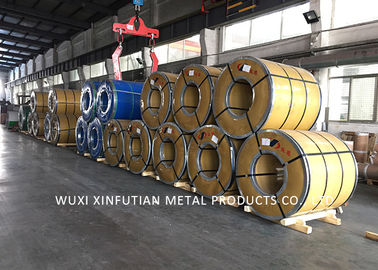

AISI Standard 304L Grade Stainless Steel Cold Rolled Coils 1.0mm Thickness
304L is the most versatile and widely used alloy in the stainless steel family. Ideal for a wide variety of home and commercial applications, Alloys 304L exhibits excellent corrosion resistance and has a high ease of fabrication, outstanding formability. The austenitic stainless steels are also considered to be the most weldable of the high-alloy steels and can be welded by all fusion and resistance welding processes.
Chemical Composition
| 304l | C | Si | Mn | P | S | Ni | Cr |
| ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~12.00 | 18.00~20.00 |
Pysical properties
| 304l | Tensile Strength: | σb (MPa)≥520 |
| Yield strength : | σ0.2 (MPa)≥205 | |
| Elongation: | δ5 (%)≥40 | |
| Hardness : | ≤187HB;≤90HRB;≤200HV | |
| Density : | 7.93g/cm3 | |
| specific heat capacity | c(20℃)0.502 J·(g·C)-1 | |
| heat conductivity | λ/W(m·℃)-1 | |
| melting point | 1398~1420℃ | |
| 304l | Tensile Strength: | σb (MPa)≥520 |
| Yield strength : | σ0.2 (MPa)≥205 | |
| Elongation: | δ5 (%)≥40 | |
| Hardness : | ≤187HB;≤90HRB;≤200HV |
Application
304L stainless steel, also known as ultra low carbon stainless steel, is a versatile stainless steel material that is widely used in the manufacture of equipment and components that require good overall performance (corrosion resistance and formability).
Surface of stainless steel coil
Finish |
Thickness |
Characteristics | Applications |
| No. 1 | 3.0mm~150.0mm | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface | Chemical industry equipment,Industrial tanks |
| 2B | 0.2mm~6.0mm | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface | General Application Medical Instruments,Tableware |
| BA | 0.5mm~30.0mm | Bright heat treatment after cold rolling | Kitchen utensil, kitchen ware,architectural purpose |
| No.4(Bright Annealed) | 0.4mm~3.0mm | Polishing with No. 150 to No.180 mesh abrasives The most popular finishes | Milk & Food processing acilities, Hospital Equipment, Bath-tub |
| HL(Hair Line) | 0.4mm~3.0mm | Finished by continuous linear polishing | Architectural purposes, escalators, kitchen ware vehicles |
| 8k | 0.5mm~30.0mm | Shinning like a mirror | Building construction |
· We ues the first grade material in China.”Quality is our culture”
· Good Services, adhere to the principle of customer first .
· Any special size can be customed ,and the price can be discussed.
· Good package, Pallets with waterproof or as customers' demands .
· Laser cutting, Water cutting and High accuracy are available.
· Surface finished: 2B, BA, mirror (8K), HL .
· Delivery fast , 5-7 working days after receiving the 30% deposit (at warehourse)
· Your problem is our probem.
