| Place of Origin: | NINGBO CHINA |
|---|---|
| Brand Name: | TISCO, BAOSTEEL, JISCO, ZPSS |
| Certification: | ISO BV SGS |
| Model Number: | 316 316l Stainless Steel Sheet |
| Minimum Order Quantity: | 1 TON |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 7-10 Working days |
| Payment Terms: | T/T L/C at sight |
| Supply Ability: | 500Ton per Month |
| Material: | 316 Stainless Steel Sheet | Color: | Bright 2B Finshed |
|---|---|---|---|
| Surface: | 2B BA No.4 6k 8k Hairline Embossed Etched, | Size: | 4(1219MM)X8 (2438MM) Or As Request |
| Type: | Sheet,plate | Technology: | Clod Rolled |
| Sample: | Free | ||
| High Light: | 316 stainless steel plate,316 stainless steel sheet metal |
||

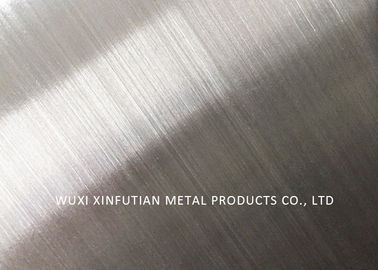

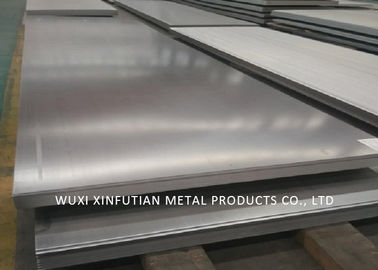

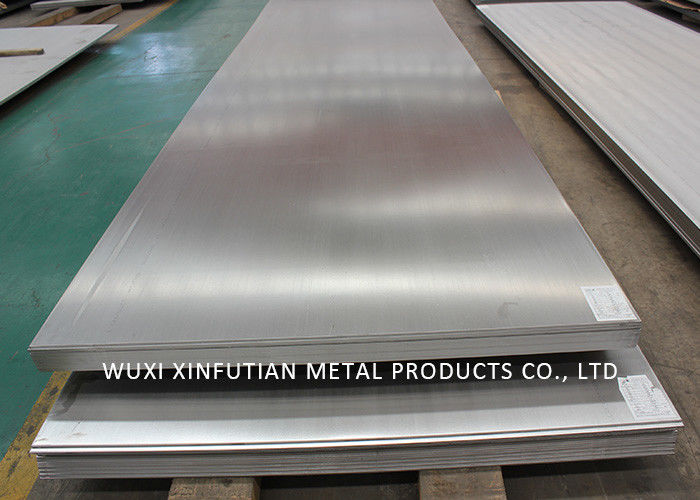

Bright Surface 316 Cold Rolled No4 Stainless Steel Sheet 4X8 Thickness 1.0
1. Products Details
| Commodity | 300 Series 316 Stainless Steel Plate |
| Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.3mm-3.0mm |
| Width | 1000,1219,1250,1500mm, or as your requirements |
| Length | 2000,2438,2500,3000,6000mm, or as your requirements |
| Surface | No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film. |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery | 5-7 days after confirming the order |
| MOQ | 1 Ton |
2. Chemical Properties:
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
4. Surface of stainless steel sheet
|
Finish
|
Thickness
|
Characteristics | Applications |
| No. 1 | 3.0mm~150.0mm | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface | Chemical industry equipment,Industrial tanks |
| 2B | 0.2mm~6.0mm | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface | General Application Medical Instruments,Tableware |
| BA | 0.5mm~30.0mm | Bright heat treatment after cold rolling | Kitchen utensil, kitchen ware,architectural purpose |
| No.4(Bright Annealed) | 0.4mm~3.0mm | Polishing with No. 150 to No.180 mesh abrasives The most popular finishes | Milk & Food processing acilities, Hospital Equipment, Bath-tub |
| HL(Hair Line) | 0.4mm~3.0mm | Finished by continuous linear polishing | Architectural purposes, escalators, kitchen ware vehicles |
| 8k | 0.5mm~30.0mm | Shinning like a mirror | Building construction |
Sample service
1: we can supply sample as your requirements, sample charge about USD10-50/pcs.
2: delivery time :after we receiving sample charge , we will send the sample to you within 3 days by
express (DHL,TNT).
Customized services
we can make other specification products according to your requirements.
