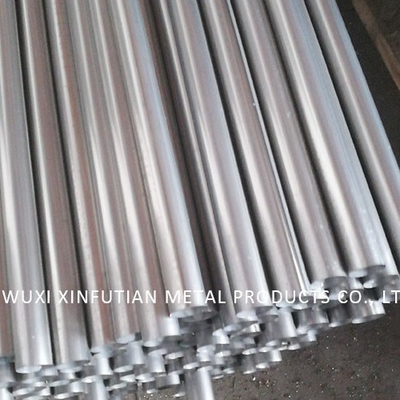

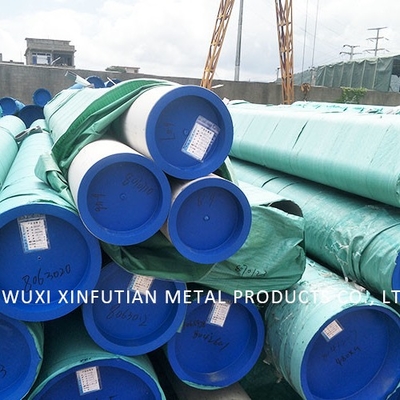

AISI Standard 304 Round Shaped Stainless Steel Welded Pipe Thickness 0.3 - 4.5MM

Brand Name:	XINFUTIAN
Model Number:	304
MOQ:	1 ton
Price:	Negotiation
Payment Terms:	L/C, D/A, T/T
Supply Ability:	1000 Ton/Month

Detail Information

Product Description

Detail Information

Place of Origin:

WUXI,WENZHOU

Certification:

BV,SGS

Technolgy:

Welded

Thickness:

0.16-3.0mm

OD:

8-140mm

Length:

6m Or As Customized

Grade:

304

Finish:

Bright

Packaging Details:

Plastic bags

Supply Ability:

1000 Ton/Month

Highlight:

stainless steel rectangular tubing

duplex stainless steel pipe

Product Description

AISI Standard 304 Round Shaped Stainless Steel Welded Pipe Thickness 0.3 - 4.5MM

Grade 304 is the standard "18/8" stainless; it is the most versatile and most widely used stainless steel, available in a wider range of products, forms and finishes than any other. It has excellent forming and welding characteristics. Grade 304 is readily brake or roll formed into a variety of components for applications in the industrial, architectural, and transportation fields. Grade 304 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

Products Details

Type	stainless steel pipe
Thinckness	0.3-4.5mm
Outer diameter	12-220mm
Length	6m or as customer's requirement
Finish	Polished, Pickled
Technology	welded
Standard	JIS, AISI, ASTM, GB, DIN, EN ,etc.
MOQ	1 Ton
Application	decoration, industry, etc.
Certificate	SGS
Packaging	Standard exporting packing
Trade terms	FOB,CFR,CIF,CNF
Delivery time	Within 10 working days after receiving your deposit
Payment terms	1. 30%T/T in advance, the balance against the B/L copy
	2. 30%T/T in advance, the balance against L/C original at sight
	3. 100%L/C at sight

DIMENSION

Specifications of stainless steel decorative pipe (mirror)
Standard		0.6	0.7	0.8	0.9	1.0	1.2	1.5	2.0	2.5	3.0	3.5	4.0	4.5
Actual		0.32	0.40	0.50	0.60	0.70	0.90	1.10	1.40	1.90	2.40	2.90	3.40	3.90
Φ	12.3	0.57	0.71	0.88	1.05	1.21	1.53	1.84
Φ	12.7	0.59	0.74	0.91	1.09	1.26	1.91	1.91
Φ	15.3	0.72	0.89	1.11	1.32	1.53	2.33	2.33
Φ	16.0	0.75	0.93	1.16	1.38	1.60	2.45	2.45	3.06
Φ	17.2	0.81	1.00	1.25	1.49	1.73	2.19	2.65	3.31
Φ	18	0.85	1.05	1.31	1.56	1.81	2.30	2.78	3.47
Φ	19	0.89	1.11	1.38	1.65	1.91	2.43	2.94	3.68	4.86
Φ	20.2	0.95	1.18	1.47	1.76	2.04	2.60	3.14	3.93	5.20
Φ	22	1.04	1.29	1.61	1.92	2.23	2.84	3.43	4.31	5.71
Φ	25	1.18	1.47	1.83	2.19	2.54	3.24	3.93	4.94	6.56
Φ	28	1.32	1.65	2.06	2.46	2.86	3.65	4.42	5.57	7.41
Φ	29.2	1.38	1.72	2.14	2.57	2.98	3.81	4.62	5.82	7.75
Φ	31.8	1.51	1.88	2.34	2.80	3.25	4.16	5.04	6.36	8.49	10.55	12.53
Φ	35.8	1.70	2.12	2.64	3.16	3.67	4.69	5.70	7.20	9.63	11.98	14.26
Φ	38	1.80	2.25	2.80	3.35	3.90	4.99	6.07	7.66	10.25	12.77	15.22
Φ	42		2.49	3.10	3.71	4.32	5.52	6.72	8.50	11.39	14.21	16.95
Φ	48		2.85	3.55	4.25	4.95	6.34	7.71	9.75	13.09	16.36	19.55
Φ	50.8		3.01	3.76	4.50	5.24	6.71	8.17	10.34	13.89	17.36	20.76	24.09
Φ	60		3.56	4.45	5.33	6.20	7.95	9.68	12.26	16.50	20.66	24.75	28.77
Φ	63			4.67	5.60	6.52	8.35	10.18	12.89	17.35	21.74	26.05	30.29
Φ	70				6.22	7.25	9.29	11.32	14.36	19.34	24.25	29.09	33.85
Φ	76				6.76	7.88	10.10	12.31	15.61	21.04	26.40	31.69	36.90	42.03
Φ	80				7.12	8.30	10.64	12.97	16.45	22.18	27.84	33.42	38.93	44.36
Φ	85				7.57	8.82	11.31	13.79	17.49	23.60	29.63	35.59	41.47	47.28
Φ	88.9				7.92	9.23	11.84	14.43	18.31	24.71	31.03	37.28	43.45	49.55
Φ	101.6				9.06	10.56	13.55	16.52	20.97	28.32	35.59	42.78	49.91	56.96
Φ	108					11.23	14.41	17.58	22.31	30.13	37.88	45.56	53.16	60.69
Φ	114					11.86	15.21	18.56	23.56	31.84	40.04	48.16	56.21	64.18
Φ	127						16.96	20.70	26.28	35.53	44.70	53.80	62.82	71.76
Φ	133						17.77	21.69	27.54	37.23	46.85	56.40	65.87	75.26
Φ	141						18.85	23.00	29.21	39.51	49.72	59.86	69.93	79.92
Φ	159							25.96	32.98	44.62	56.18	67.67	79.08	90.42
Φ	168								34.86	47.17	59.41	71.57	83.65	95.66
Φ	219								45.54	61.66	77.70	93.68	109.57	125.39
Standard		0.6	0.7	0.8	0.9	1.0	1.2	1.5	2.0	2.5	3.0	3.5	4.0	4.5
Actual		0.32	0.40	0.50	0.60	0.70	0.90	1.10	1.40	1.90	2.40	2.90	3.40	3.90

AISI Standard 304 Round Shaped Stainless Steel Welded Pipe Thickness 0.3 - 4.5MM 0
