Application: | Decoration | Welding Line Type: | Round Square |
---|---|---|---|
Steel Grade: | 201 316 | Type: | Welded |
Length: | 6 Meters Or According To Customer's Request | Material: | 200 Series/300 Series/400series |
High Light: | stainless steel rectangular tubing,duplex stainless steel pipe |

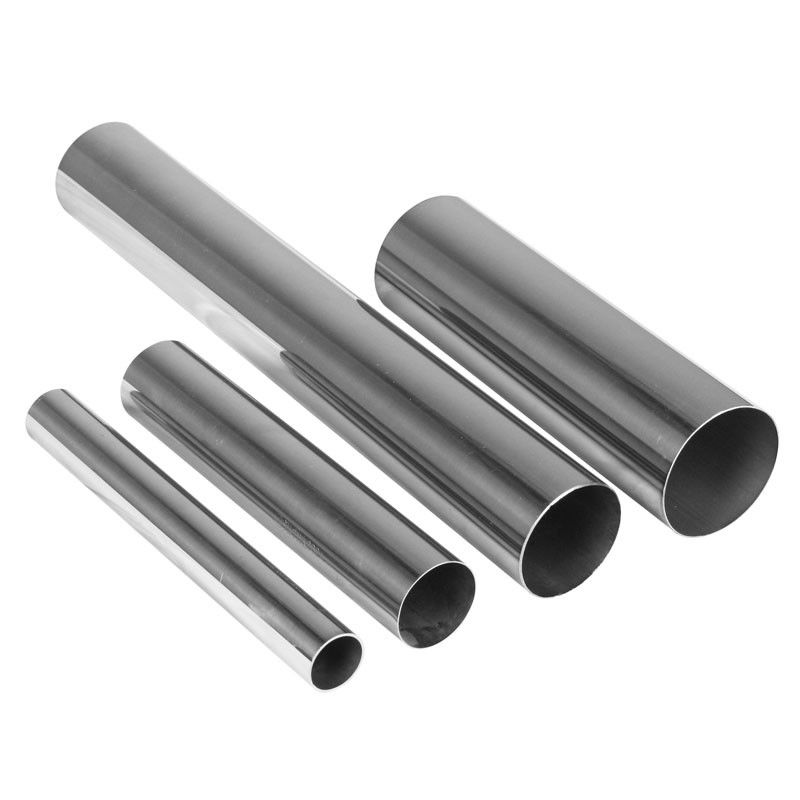

Mirror polished 201 stainless steel Welded Tube price astm a316 stainless steel pipe
Stainless steel welded pipe
1. Standard: ASTM A312/A778/A269/A249/A270/A554EN10217JIS G3459DIN
2. Grade: 304 ,304L, 304H,304N,316,316L 316Ti,317L,310S,321,321H,347H,S31803, S32750, 347,330,825,904L.
3. Size: Outside Diameter: 9.5mm-1200mm (NPS:1/8~48)
Wall Thickness: 0.5mm-20mm (Schedule 5S~40S according to ANSI B36.19)
4. Fixed Length: 12M.max;
5. Surface: Annealed/Pickled/Polished;
6. Ends: Plain ends or Bevel ends;
7. Packing: Standard Sea-worthy packing. Each in plastic bags, then by bundle/iron cage/wooden case or according to customers request;
8. Test: Eddy current/X-ray test/intergranular corrosion/universal tensile tester/spectrum analyzer/metallographic detector/roughness testing/impact inspection/hardness tester and so on;
9. Production capacity: 200 metric tons per month.
Feature: | A) OEM,ODM orders are accepted; | |||||
B) Best price; | ||||||
C) High quality; | ||||||
D) Prompt delivery; | ||||||
E) Manufacture according to the sizes and design of customers; | ||||||
F) Best service; | ||||||
Material: | Grade:201,202,304,316,430 | |||||
Different grade can meet different customer's requirement | ||||||
Product Specs: | A:Round pipe 12,13,14,16,19,25.4,31.8,44.5,50.8,63.5,76.2 | |||||
B:Rectangular pipe 10x30,10x40,10x50,10x75,10x80,10x90,10x100,20x40,20x80,20x100, | ||||||
25x38,25x50,25x75 etc. | ||||||
C:Single-slot pipe [external diameter X ( Slot depth X width )] | ||||||
25.4x(12x12),38.1x(15x15),42.4x(24x24),48.3x(27x30),50.8x(15x15) | ||||||
50.8x(32x19),50.8x(38x19),60.3x(34x34),63.5x(20x20),76.2x(25x25) | ||||||
D:Double-shot pipe [external diameter X ( Slot depth X width )] | ||||||
50.8x(15x15),63.5x(20x20),76.2x(25x25) | ||||||
E:Elliptical single slot pipe [external size X ( Slot depth X width )] | ||||||
40x80x(26x33),40x110x(26x33) | ||||||
F:Elliptical pipe | ||||||
20x38,23x38,20x40,28x46,38x62,42x75,40x80,40x110,50x100,60x120 | ||||||
Thickness: | 0.5mm-2.0mm | |||||
Length: | standard is 6M,special length can be customized | |||||
Chemical Composition | Composition | 201 | 202 | 304 | 316 | 430 |
C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.12 | |
Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
Ni | 0.8-1.0 | 4-6 | 8-10.5 | 10-14 | ||
Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 | |

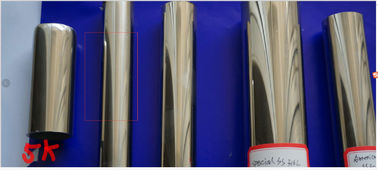

Finish: | 1.Satin 2.400# 3.600~1000# mirrorx 4.HL brushed 5.Brushed Mirror(two kinds of finishing for one pipe) | |||||
Application | decorative /industrial/building material | |||||
Min.bending radius: | A:38.1~50.8=RX1M | |||||
B:63.5~76.2=RX1.5-2.5M | ||||||
C:88.9~101.6=RX3-4.5M | ||||||
Production process: | Turn on the roll -- solder side-forming -- weld -- weld the seam inner&external --polishing&fix melting -- fix the diameter&to be straight -- vortex test -- cuted by saw -- press test -- final test -- package | |||||

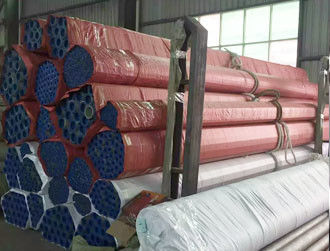

Packing: | Every tube is sleeved in plastic bag individually, and then 10pcs/bundle or 50 pcs/bundle.We can pack as clients' requirement. |
