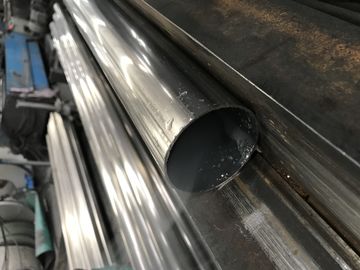

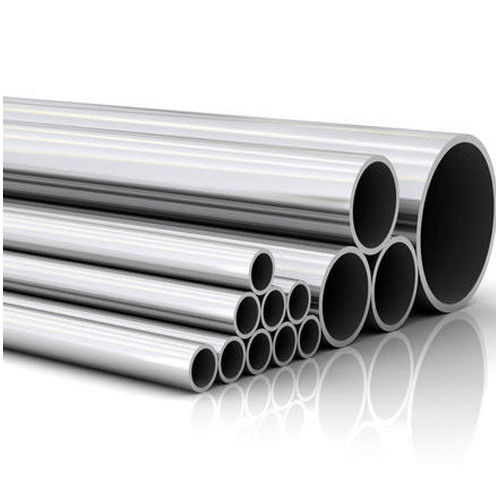

ASTM 201 Bright Sanitary Seamless Stainless Steel Pipe 3 Inch Diameter

Place of Origin Wuxi
Brand Name XINFUTIAN
Certification ISO ,SGS,BV
Model Number 201
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month
Product Details
Material 200 Series/300 Series/400series Surface Polishing Or Unpolishing
Finish Bright Standard ASTM,AISI,GB,DIN,JIS
Certification ISO,SGS,BV,ISO & SGS Thickness 0.6mm~2500mm
High Light

seamless stainless steel tubing

,

ss 304 seamless pipe

Leave a Message
Product Description





ASTM 201 Bright Sanitary Seamless Stainless Steel Pipe 3 inch diameter stainless steel tube​



Name Stainless steel sanitary pipe
Items

Square welded pipes, round welded pipes, oval welded pipes, special shaped welded pipes

empaistic welded pipes, fittings

Standard ASTM A554, A249, A269 and A270
Material Grade 201: Ni 0.8%~1%
304: Ni 8%, Cr 18%
316L: Ni10%~16%
Outer Diameter 6mm--159mm
Thickness 1.0mm - 4.0mm
Length 6m or as customers' request



Tolerance

a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
Surface

180G, 320G, 400G Satin / Hairline

400G, 500G, 600G or 800G Mirror finish

Application handrail,railing, weldmesh screen, staircase, door,window, balcony,fence,bench,furniture,etc
Test Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT









Chemical Composition of Material

Material



Composition

201 202 304 316L 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo       2.0-3.0



Mechanical Property

Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90





Usage: Milk and food industry, pharmaceutical industry, special inner surface requirements of the industry.
Process characteristics: inner bead leveling treatment, solution treatment, inner surface electropolishing
Performance characteristics: the internal surface roughness Ra is more than 0.2, the wall hanging residue is small, easy to clean, prevent bacterial growth, electrolytic polishing has a passivation effect, and the inner wall has good defense performance.
Testing methods: lateral, longitudinal flattening, reverse flattening, hydrostatic testing or eddy current testing, mechanical properties testing, internal surface roughness testing.
