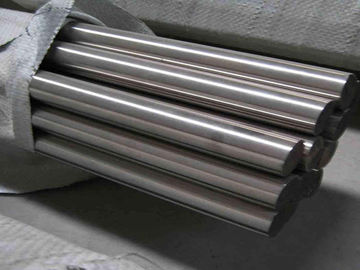

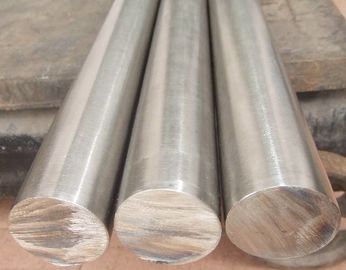

N08825 / Inconel 825 Hot Rolled Steel Round Bar Dia 60mm Length As Customzied

Place of Origin Jiangsu
Brand Name XINFUTIAN
Certification ISO
Model Number N08825 / Inconel 825
Minimum Order Quantity 1 ton
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement
Delivery Time 5-10 working days
Payment Terms Western Union, L/C, T/T
Supply Ability 1500 Ton/Month
Product Details
Finish Black Or Polished Type Round Square Hex Flat Angle
Process Finish Process Material N08825 / Inconel 825 /alloy 825
Diameter 6-630mm, 6-219mm, 6mm-660mm Or Customized, Customized Package Standard Seaworthy Package, Plywood Cases, PC Plastic Bage Package
High Light

u channel stainless steel

,

stainless steel channel

Leave a Message
Product Description



N08825 / Inconel 825 Stainless Steel Round Bar Dia 60mm length As Customzied



Incoloy 825 is a nickel-iron-chromium alloy with additions of molybdenum, copper and titanium. This nickel steel alloy’s chemical composition is designed to provide exceptional resistance to many corrosive environments. It is similar to alloy 800 but has improved resistance to aqueous corrosion. It has excellent resistance to both reducing and oxidizing acids, to stress-corrosion cracking, and to localized attack such as pitting and crevice corrosion.



Characteristics of Incoloy 825?



1.  Excellent resistance to reducing and oxidizing acids

2. Good resistance to stress-corrosion cracking

3. Satisfactory resistance to localized attack like pitting and crevice corrosion

4.  Very resistant to sulfuric and phosphoric acids

5.Good mechanical properties at both room and elevated temperatures up to approximately 1000°F

6. Permission for pressure-vessel use at wall temperatures up to 800°F


Alloy 825 (UNS N08825) Chemical Composition, %



GB/T UNS Trademark W.Nr JIS
NS142 N08825 Incoloy825 2.4858 NCF825
Chemical Composition:
Grade % Ni Cr C Mn Fe
Incoloy825 Min 38 19.5     Rest
Max 46 23.5 0.05 1
Si Cu Mo Al Ti P S
  1.5 2.5   0.6
0.5 3 3.5 0.2 1.2 0.03 0.03
Physical Performance:
Density 8.0 g/cm3
Smelt 1350-1400 ��
Heat Treatment T*S Y*S El Hardness
Rm N/mm2 RP0.2N/mm2 A5 % Hb
Solution 550 220 30 ≤200


Application of Incoloy 825 used?

 Chemical Processing,· Pollution-control, Oil and gas well piping,· Nuclear fuel reprocessing, Components in Pickling equipment like heating coils, tanks, baskets and chains,Acid production





With wide experience and expertise, XINFUTIAN is one of the leading incoloy825 manufacturers and suppliers. We have hundreds of high-qualified workers at your service. Please rest assured to get the competitive price incoloy825 for sale with us.
