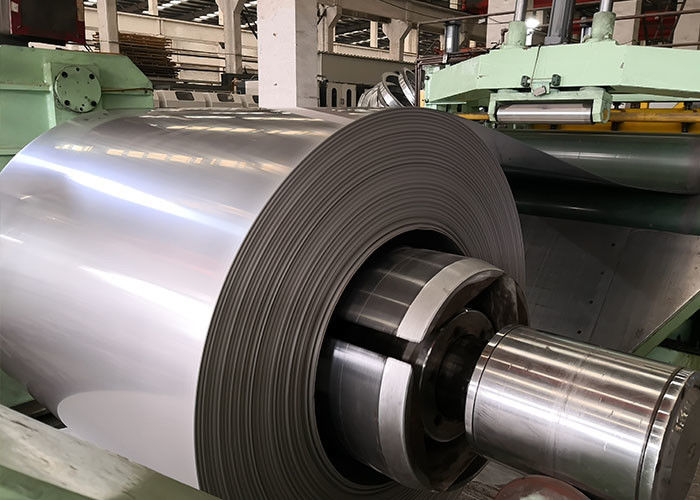

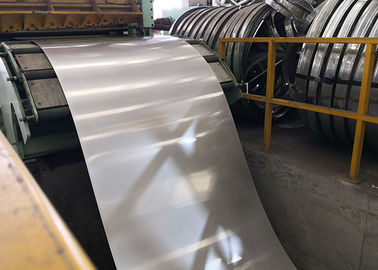

309s Stainless Steel Roll / 300 Series Stainless Steel 8K Mirror Surface

  • 309s Stainless Steel Roll / 300 Series Stainless Steel 8K Mirror Surface
  • 309s Stainless Steel Roll / 300 Series Stainless Steel 8K Mirror Surface
  • 309s Stainless Steel Roll / 300 Series Stainless Steel 8K Mirror Surface
Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO，
Certification ISO ,SGS,BV
Model Number 300 Series 309S
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 0.3-6mm Finish NO 1,2B ,BA
Width 6MM-600MM Color Natural Surface Or As Customized
Standard JIS/ASTM/BN Shape Coil
High Light

cold rolled steel sheet in coil

,

316 stainless steel coi
Leave a Message
Product Description

BA 2B Stainless Steel Sheet Coil Customized 300 Series 309S TISCO LISCO



1. Products Details



AISI 309s
UNS S30908
EN 1.4833



309S stainless steel is a highly alloyed austenitic stainless steel used for its excellent oxidation resistance, high-temperature strength, and creep resistance. The lower nickel content of Stainless Steel 309, compared to Stainless Steel 310, improves its resistance to hydrogen sulfide (H2S) attack at high temperatures.Stainless Steel 309S is used for its high-temperature oxidation resistance and/or resistance to H2S attack for applications such as furnace parts, firebox sheets, high-temperature containers, catalytic converters, and exhaust systems.



Grade 309S Stainless Steel Sheet Coil
Thinckness 0.3-6.0mm
Tolerance +/-0.02mm
Widthness 6mm-600mm
Length As coil
Brand name TISCO,L;ISCO,BAOSTEEL
Standard JIS, AISI, ASTM, GB, DIN, EN ,etc.
Finish 2B, NO1,Hairline, No.4, BA, 8K mirror, etc.
Certification SGS
Packaging Standard exporting packing; seaworthy package.
MOQ 1 Tons
Price time FOB, CFR, CIF, CNF
Delivery time Within 15-20 working days after receiving your deposit
Payment 30% T/T in advanced+70% balanced; irrevocable L/C at sight
Remarks Insurance is all risks and accept the third party test

 Chemical Properties: 309S

Specification Grade Chemical Composition(Wt%)
C Mn P Si Ni S Cr
GB/T1220-1992 309S ≤0.08 ≤2.00 ≤0.045 ≤1.00 12.0-15.0 ≤0.030 22.0-24.0



Specification Grade Mechanical Property

Y.S

(N/mm2)

T.S

(N/mm2)

EL

(%)

RE

(%)
GB/T1220-1992 309S ≥205 ≥515 ≥40 ≥50


2. Applications


Furnace parts,Muffles, Retorts,Firebox sheets,High temperature containers,Catalytic converters,Exhaust systems,Radiant Tubes,Fluidized bed coal combusters,Petroleum refineries

Thermowells,Carbon Saggers,Paper Mill Equipment,Power boiler tube hangers,

Anchor bolts,Gladd forming equipment,Food processing industry

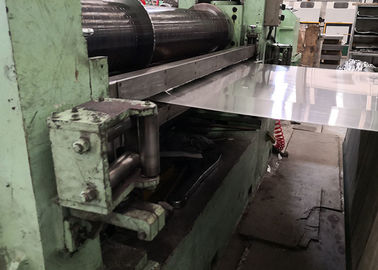

3. Processing of Stainless Steel Strip Coil



Stainless Steel Srtip Processsing

process parameters

Thickness: 0.1-14mm

Width: 5mm-600mm

No:18-30 pcs

Thickness: 6mm YS Strength:900 Mpa



201/304/321/316/316L/310S/309S/2205/2507/317L/904L In Stock
Surface T*W*L W*L W*L W*L
2B 0.4*1219*2438 1219*3048 1000*2000
2B 0.5*1219*2438 1219*3048 1000*2000
2B 0.6*1219*2438 1219*3048 1000*2000
2B 0.7*1219*2438 1219*3048 1000*2000
2B 0.8*1219*2438 1219*3048 1000*2000 1500*3000
2B 0.9*1219*2438 1219*3048 1000*2000 1500*3000
2B 1.0*1219*2438 1219*3048 1000*2000 1500*3000
2B 1.2*1219*2438 1219*3048 1000*2000 1500*3000
2B 1.5*1219*2438 1219*3048 1000*2000 1500*3000
2B 2.0*1219*2438 1219*3048 1000*2000 1500*3000
2B 3.0*1219*2438 1219*3048 1000*2000 1500*3000
2B 3.0*1500*3000
