Contact Person : Amy
Phone Number : 13327910097

Construction Steel Bar Profiles . 316 Stainless Steel Flat Bar 17-4PH Grade

Place of Origin Jiangsu
Brand Name XINFUTIAN
Certification ISO
Model Number 17-4PH
Minimum Order Quantity 1 ton
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement
Delivery Time 5-10 working days
Payment Terms Western Union, L/C, T/T
Supply Ability 1000 Ton/Month
Product Details
Name Steel Bar Profiles Application Construction
Type Seamless Steel Grade 17-4PH
Product Name 17-4ph Stainless Steel Bar Other Name 316 Stainless Steel Flat Bar
High Light

u channel stainless steel

,

stainless steel channel

Leave a Message
Product Description

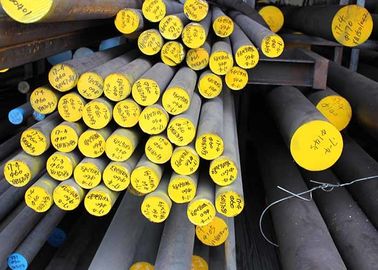

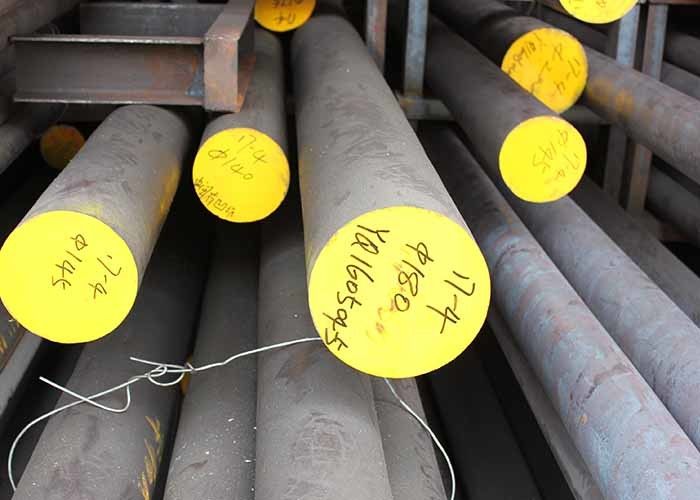

Construction Steel Bar Profiles . 316 Stainless Steel Flat Bar 17-4PH Grade



Steel Bar ProfilesGrades:



1.4542, X5CrNiCuNb14-5 630,17-4ph

Grade C Mn P S Si Cr Mo Ni Cu Nb
17-4PH ≤0.07 ≤1.50 ≤0.040 ≤0.03 ≤0.70 15.0-17 ≤0.6 3.0-5 3.0-5 5c-5.0



Steel Bar Profiles dimension:

Process: Cold drawn, hot rolled, forged

Diameter: 15-150mm, 160-300mm, 310mm-500mm

Length: max 8000mm

Surface:Black, turned, ground, peeled, polished

Tolerance: ISO h8, h9, h10, h11, h12



Solution treatment (Condition A):Grade 17-4PH stainless steels are heated at 1040°C for 0.5 h, then air-cooled to 30°C. Small sections of these grades can be oil quenched.



Cold Working: Alloy 17-4PH has limited cold forming properties. Cold forming can only be undertaken on plates in the fully annealed condition. Stress corrosion resistance is enhanced by re-aging at the precipitation hardening temperature after cold working.



Hot Forming:Heat uniformly at 1742–2192°F (950–1200°C). A full solution anneal, cooling lower than 76°F (25°C) and aging at the required temperature must occur after

hot forming. The post forming heat treatment should be a function of the desired mechanical properties.



Annealing: stainless steel is annealed at 843-871°C (1550-1600°F) followed by slowly cooling in the furnace.





Packing:

In seaworthy packing, as your requirement.
