300 Series 316 Stainless Steel Sheet Coil Natural Surface 1000,1500,1220mm

  • 300 Series 316 Stainless Steel Sheet Coil Natural Surface 1000,1500,1220mm
  • 300 Series 316 Stainless Steel Sheet Coil Natural Surface 1000,1500,1220mm
Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO
Certification ISO ,SGS,BV
Model Number 300 Series 316
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 ton/Month
Product Details
Name 316 Stainless Steel Sheet Coil Finish Hairilne,BA,NO6,N0 8
Width 1000,1500,1220mm Color Natural Surface Or As Customized
Market The Middle East,South Africa Length Customized
High Light

stainless steel sheet roll

,

cold rolled steel sheet in coil
Leave a Message
Product Description

300 Series 316 Stainless Steel Sheet Coil Natural Surface 1000,1500,1220mm



316 Stainless Steel Sheet Coil Application



It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture, ship components.
It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen.



316 Stainless Steel Sheet Coil Details



Commodity 300 Series 316 Stainless Steel Sheet Coil Natural Surface 1000,1500,1220mm
Grade 301,302,304,304L,316,316L,310S,309S,321,301,310
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.3mm-25mm
Width 1000,1219,1250,1500mm, or as your requirements
Length 2000,2438,2500,3000,6000mm, or as your requirements
Surface No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film.
Standard ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery 5-7 days after confirming the order
MOQ 1 Ton



316 Stainless Steel Sheet Coil Chemical Properties:



  C Mn Si P S Cr Mo Ni N
316
(S31600)		 0.08
max		 2.0
max		 0.75
max		 0.045
max		 0.03
max		 min: 16.0
max: 18.0		 min: 2.0
max: 3.0		 min: 10.0
max: 14.0		 0.10
max
316L
(S31603)		 0.03
max		 2.0
max		 0.75
max		 0.045
max		 0.03
max		 min: 16.0
max: 18.0		 min: 2.0
max: 3.0		 min: 10.0
max: 14.0		 0.10
max

316 Stainless Steel Sheet Coil Mechanical Properties:

Grade Tensile Strength
ksi (min)		 Yield Strength
0.2% ksi (min)		 Elongation % Hardness (Brinell) MAX Hardness
(Rockwell B) MAX
316
(S31600)		 75 30 40 217 95
316L
(S31603)		 70 25 40 217 95



316 Stainless Steel Sheet Coil standards



CHINA:06Cr17Ni12Mo2

ASTM/ASME: UNS S31600

AFNOR: Z 6 CND 17-11
DIN: 1.4401



316 Stainless Steel Sheet Coil Details

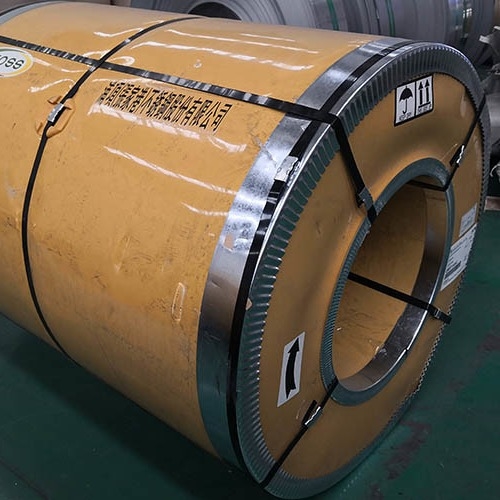

300 Series 316 Stainless Steel Sheet Coil Natural Surface 1000,1500,1220mm 0

3. Resistance



Corrosion Resistance:



1) Generally more resistant than 304 in range of atmospheric environments and many corrosive media due to the increased chromium and molybdenum content.
2) Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 122°F (50°C).
3) Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 140°F (60°C).
4) Usually regarded as the “marine grade stainless steel” – but is not resistant to warm sea water.



Heat Resistance:



1) Good oxidation resistance in intermittent service to 1600°F (870°C) and in continuous service to 1700°F (925°C)
2) Grade 316L is more resistant to carbide precipitation.

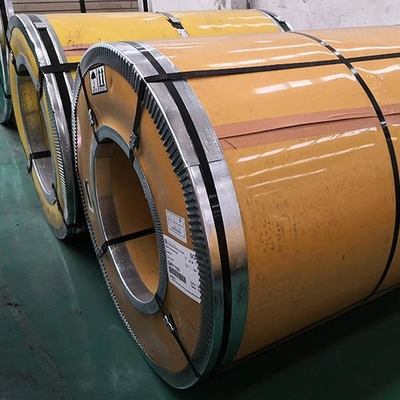

300 Series 316 Stainless Steel Sheet Coil Natural Surface 1000,1500,1220mm 1
