Polished Finish Stainless Steel Welded Tube Cold Rolled Anti Corrosion

Place of Origin WUXI,WENZHOU
Brand Name XINFUTIAN
Certification BV,SGS
Model Number 316L
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic bags
Delivery Time 5-10 working days
Payment Terms D/A, L/C, T/T
Supply Ability 1500ton/Month
Product Details
Name Stainless Steel Welded Tube Thickness 0.4-8.0mm
Dimension 7-150mm Feature Anti Corrosion
Grade 316L Surface Polished Finish
High Light

stainless steel rectangular tubing

,

duplex stainless steel pipe

Leave a Message
Product Description

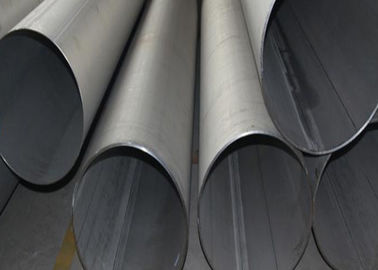

Polished Finish Stainless Steel Welded Tube Cold Rolled Anti Corrosion​



Stainless Steel Welded Tube Application



Sanitary tubing: for food processing industry, beverage industry, sugar mill and so on;


Heat exchanger tube: condenser, boiler, super heater, evaporator and so on;


Ornamental tube: handrail, railings, balustrade, hence and so on.



Stainless Steel Welded Tube Features:



TECHNIQUE:Cold Rolled Stainless Steel

STANDARDS: AISI,ASTM,DIN,JIS,GB,EN

GRADE :201, 202, 304, 304L, 316, 316L,409, 430…

SPECIFICATION:



1)  Square tube: 10x10mm to 150x150mm

2)  Rectangular tube: 10x20mm to 120x180mm

3) Thickness: 0.16mm to 6.0mm

4)  Width (coil):10-200mm

5)  Lenght:6000mm or Customer requirements

------------------------------------------------------------------------------------

SURFACE: 180G, 320G, 400G, 500G, 600G, Satin, hairline, 2B,BA, mirror,8K…

-------------------------------------------------------------------------------------

PACKAGE: Standard Export Packing or according to customer’s requests



Stainless Steel Welded Tube Chemical Composition











Chemical Composition of Material



Material





Composition

201 202 304 316L 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo       2.0-3.0



Mechanical Property

Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90

<90





Stainless Steel Welded Tube Application

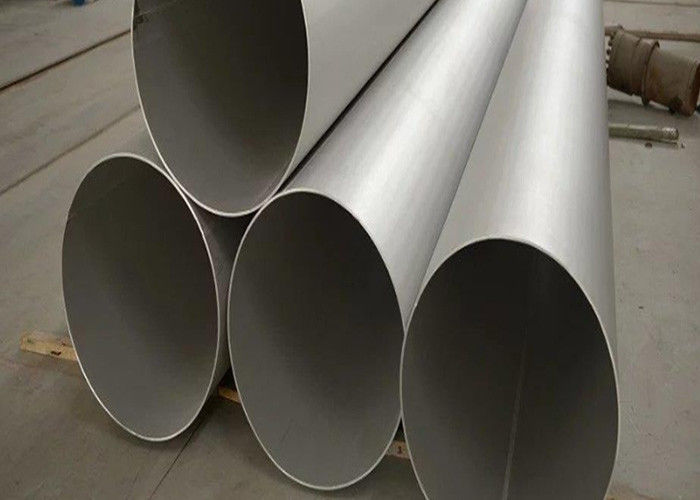

Polished Finish Stainless Steel Welded Tube Cold Rolled Anti Corrosion 0

Weld Pipe Progress

Polished Finish Stainless Steel Welded Tube Cold Rolled Anti Corrosion 1
