304 316l Welded Stainless Steel Pipe , SS Welded Pipe 0.16-3.0mm Thickness

Place of Origin WUXI,WENZHOU
Brand Name XINFUTIAN
Certification BV,SGS
Model Number 304 316L
Minimum Order Quantity Negotiate
Price Negotiation
Packaging Details Plastic bags
Delivery Time 5-10 working days
Payment Terms D/A, L/C, T/T
Supply Ability 1500ton/Month
Product Details
Name Welded Stainless Steel Pipe Thickness 0.16-3.0mm
OD 8-140mm Length 6m Or As Customized
Grade 304 316l Type SS Welded Pipe
High Light

welded stainless steel pipe

,

duplex stainless steel pipe

Leave a Message
Product Description

304 316l Welded Stainless Steel Pipe , SS Welded Pipe 0.16-3.0mm Thickness



Welded Stainless Steel Pipe Application



Construction / machinery / stamping parts / A variety of tools / band saw material / saw blade etc.



Welded Stainless Steel Pipe Parameters



Material

304:0cr18ni9, 0cr17ni8

201:1cr17mn6ni5n,1cr13mn9ni1n

316:0cr17ni12 or as customer’s request

Size(round pipe)

9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6,

114.3, 127, 133, 159, 168, 219 mm or customized

Size (square pipe)

10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,36×23,

40×20,50×20,60×15,75×45,80×60,95×45,100×60,150×100 mm or customized

Size (oval pipe) 30×15,80×40 mm or customized
Thickness 0.24-3 mm
Length 6m or according to customer’s request
Outer diameter 6.35-219mm
Tolerance Outer diameter :±0.2mm
Thickness :±0.02mm
Length :±0.5mm
Process method Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished
Finishing

A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum

E : HL brushed & mirror (two kinds of finishing for one pipe)





Chemical Composition
Material C Si Mn P S Cr Ni
201 ≤0.12 ≤0.75 9.5-12.5 ≤0.045 ≤0.03 13-16 0.8-1.5
304 ≤0.08 ≤0.75 ≤2.0 ≤0.045 ≤0.03 18-19 8-10
316 ≤0.08 ≤1.00 ≤2.0 ≤0.035 ≤0.03 10-14 16.0-18.5
430 ≤0.12 ≤0.75 ≤2.0 ≤0.04 ≤0.03 16-18 ≤0.6

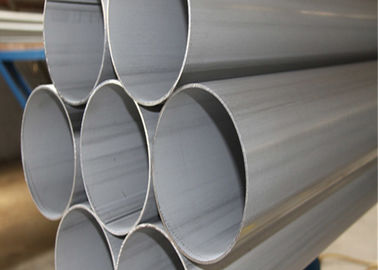

Welded Stainless Steel Pipe Details



304 316l Welded Stainless Steel Pipe , SS Welded Pipe 0.16-3.0mm Thickness 0

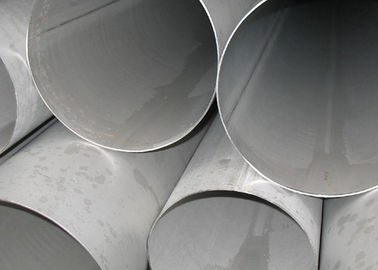

Welded Stainless Steel Pipe usage



304 316l Welded Stainless Steel Pipe , SS Welded Pipe 0.16-3.0mm Thickness 1
