| Place of Origin: | NINGBO CHINA |
|---|---|
| Brand Name: | TISCO, BAOSTEEL, JISCO, ZPSS |
| Certification: | MTC BV SGS ISO |
| Model Number: | 316 316l Stainless Steel Sheet |
| Minimum Order Quantity: | 1 TON |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 7-15 Working days |
| Payment Terms: | T/T L/C at sight |
| Supply Ability: | 1000 Ton per Month |
| Material: | 316 Stainless Steel Sheet | Color: | Bright 2B Finshed |
|---|---|---|---|
| Surface: | 2B BA No.4 6k 8k Hairline Embossed Etched, | Size: | 4(1219MM)X8 (2438MM) Or As Request |
| Type: | Sheet,plate | Technology: | Clod Rolled |
| High Light: | 316 stainless steel plate,316 stainless steel sheet metal |
||

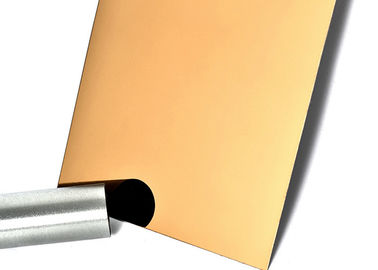

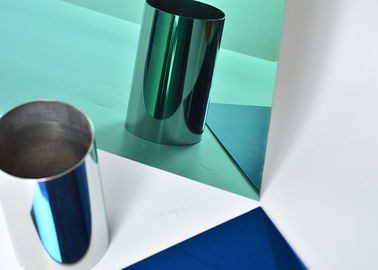

1.5mm Stainless Steel Plate 316 , Colored Stainless Steel Sheet
Type 316L is a variant of Type 316 and differs by having a lower Carbon content as well as slightly lower yield and tensile strengths. Type 316L offers improved weldability and also reduces the possibility of lower corrosion resistance around welded areas.
|
Type
|
Stainless steel sheet(cold rolled or hot rolled)
|
|
Thinckness
|
Cold rolled:0.15mm-10mm
Hot rolled: 3.0mm-180mm |
|
Widthness
|
8-3000mm
|
|
Length
|
Customer's Request
|
|
Finish
|
2B, BA, No.1,No.4,HL,No.8,Mirror etc
|
|
Standard
|
ASME, ASTM, EN, BS, GB, DIN, JIS etc
|
|
Material
|
Nickle alloy: 253MA,254SMo,nitronic 50,nitronic 60,nimonic 75,nimonic 80A,nimonic 90,inconel 600,inconel 601,inconel 625,inconel 718,inconel 725,alloy 20,alloy 28,incoloy 800,incoloy 825/H,hastelloy C22,hastelloy C276,hastelloy X,monel 400,monel k-500 etc.
Other: 1.4057,1.4313,1.4362,1.4372,1.4378,1.4418,1.4482,1.4597,1.4615,1.4662,1.4669, 1.4913,1.4923 etc 600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D, Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101,LDX2404,LDX4404,904L |
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
Application range
Escalator, Elevator, Doors
Furniture
Production tools, Kitchen appliances, freezers, cold rooms
Auto Parts
Machinery and Packaging
Equipment and Medical devices
Transport system
