| Place of Origin: | WUXI,WENZHOU |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | BV,SGS |
| Model Number: | 304 / 304L / 316 / 316L |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiation |
| Packaging Details: | Plastic bags |
| Delivery Time: | 5-10 working days |
| Payment Terms: | D/A, L/C, T/T |
| Supply Ability: | 1500 Ton/Month |
| Name: | Welded Stainless Steel Pipes | Diameter: | Large Diameter |
|---|---|---|---|
| OD: | 8-140mm | Length: | 6m Or As Customized |
| Grade: | 304 / 304L / 316 / 316L | Shape: | Square |
| High Light: | welded stainless steel pipe,stainless steel rectangular tubing |
||

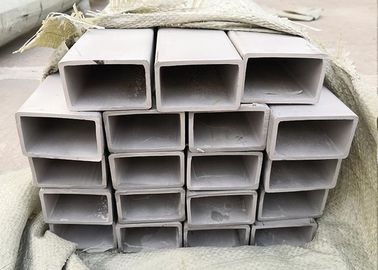

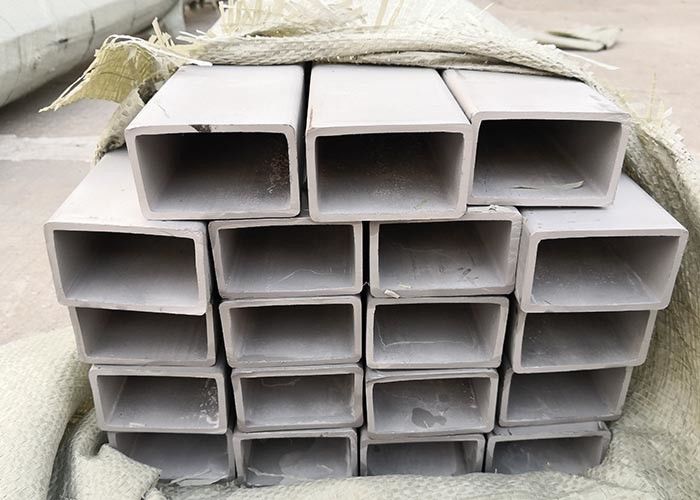

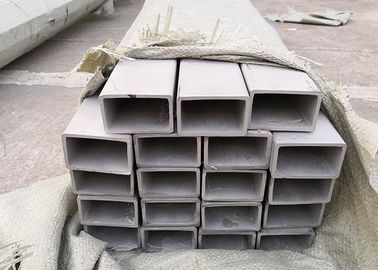

Large Diameter Thin Wall Stainless Steel Tube , Square Welded Stainless Steel Pipes
Welded Stainless Steel Pipes Introduction
Stainless steel is a production which not easy rust,acid resistance and corrosion resistance,so it is widely used in light industry,heavy industry,daily necessities and the decoration industry.My company long-term supply stainless steel products including:stainless steel tube&pipe, stainless steel bar, stainless steel plate&sheet, stainless steel wire etc.
| Material |
304:0cr18ni9, 0cr17ni8 201:1cr17mn6ni5n,1cr13mn9ni1n 316:0cr17ni12 or as customer’s request |
| Size(round pipe) |
9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6, 114.3, 127, 133, 159, 168, 219 mm or customized |
| Size (square pipe) |
10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,36×23, 40×20,50×20,60×15,75×45,80×60,95×45,100×60,150×100 mm or customized |
| Size (oval pipe) | 30×15,80×40 mm or customized |
| Thickness | 0.24-3 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished |
| Finishing |
A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing for one pipe) |
| Chemical Composition | |||||||
| Material | C | Si | Mn | P | S | Cr | Ni |
| 201 | ≤0.12 | ≤0.75 | 9.5-12.5 | ≤0.045 | ≤0.03 | 13-16 | 0.8-1.5 |
| 304 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.03 | 18-19 | 8-10 |
| 316 | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.035 | ≤0.03 | 10-14 | 16.0-18.5 |
| 430 | ≤0.12 | ≤0.75 | ≤2.0 | ≤0.04 | ≤0.03 | 16-18 | ≤0.6 |
Welded Stainless Steel Pipes Application
Stainless steel pipe is an economical section steel, is an important product in the steel industry, can be widely used in life decoration and industry, many people on the market for the production of staircase handrails, window protection, railings, furniture and so on. Common are 201 and 304 two kinds of materials.
