Place of Origin: | WUXI,WENZHOU |
---|---|
Brand Name: | XINFUTIAN |
Certification: | BV,SGS |
Model Number: | 304 316 316L 310S |
Minimum Order Quantity: | Negotiable |
Price: | Negotiation |
Packaging Details: | Plastic bags |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T, D/A, L/C, MoneyGram |
Supply Ability: | 1000 Ton/Month |
Name: | Stainless Steel Welded Tube | Thickness: | 0.16-3.0mm |
---|---|---|---|
Feature: | Excellent Forming | Grade: | 304 |
Finish: | Bright | Service: | Deliver Timely |
Application: | Decoration / Industry | ||
High Light: | stainless steel rectangular tubing,duplex stainless steel pipe |

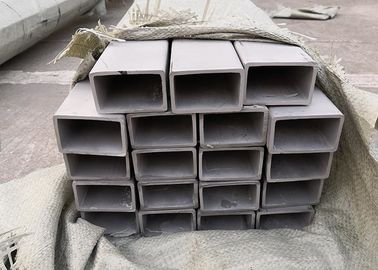

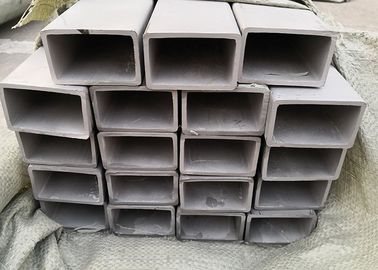

Excellent Forming Stainless Steel Welded Tube For Decoration / Industry
Stainless Steel Welded Tube Application
Widely used in petroleum, foodstuff, chemical industry, construction, electric power, nuclear, energy, machinery, biotechnology, paper making, shipbuilding, boiler fields.
Pipes also can be made according to the customer's required.
Stainless Steel Welded Tube Details
Type | stainless steel pipe |
Thinckness | 0.3-4.5mm |
Outer diameter | 12-220mm |
Length | 6m or as customer's requirement |
Finish | Polished, Pickled |
Technology | welded |
Standard | JIS, AISI, ASTM, GB, DIN, EN ,etc. |
MOQ | 1 Ton |
Application | decoration, industry, etc. |
Certificate | SGS |
Packaging | Standard exporting packing |
Trade terms | FOB,CFR,CIF,CNF |
Delivery time | Within 10 working days after receiving your deposit |
Payment terms | 1. 30%T/T in advance, the balance against the B/L copy |
2. 30%T/T in advance, the balance against L/C original at sight | |
3. 100%L/C at sight |
Stainless Steel Welded Tube DIMENSION
Specifications of stainless steel decorative pipe (mirror) | ||||||||||||||
Standard | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | |
Actual | 0.32 | 0.40 | 0.50 | 0.60 | 0.70 | 0.90 | 1.10 | 1.40 | 1.90 | 2.40 | 2.90 | 3.40 | 3.90 | |
Φ | 12.3 | 0.57 | 0.71 | 0.88 | 1.05 | 1.21 | 1.53 | 1.84 | ||||||
Φ | 12.7 | 0.59 | 0.74 | 0.91 | 1.09 | 1.26 | 1.91 | 1.91 | ||||||
Φ | 15.3 | 0.72 | 0.89 | 1.11 | 1.32 | 1.53 | 2.33 | 2.33 | ||||||
Φ | 16.0 | 0.75 | 0.93 | 1.16 | 1.38 | 1.60 | 2.45 | 2.45 | 3.06 | |||||
Φ | 17.2 | 0.81 | 1.00 | 1.25 | 1.49 | 1.73 | 2.19 | 2.65 | 3.31 | |||||
Φ | 18 | 0.85 | 1.05 | 1.31 | 1.56 | 1.81 | 2.30 | 2.78 | 3.47 | |||||
Φ | 19 | 0.89 | 1.11 | 1.38 | 1.65 | 1.91 | 2.43 | 2.94 | 3.68 | 4.86 | ||||
Φ | 20.2 | 0.95 | 1.18 | 1.47 | 1.76 | 2.04 | 2.60 | 3.14 | 3.93 | 5.20 | ||||
Φ | 22 | 1.04 | 1.29 | 1.61 | 1.92 | 2.23 | 2.84 | 3.43 | 4.31 | 5.71 | ||||
Φ | 25 | 1.18 | 1.47 | 1.83 | 2.19 | 2.54 | 3.24 | 3.93 | 4.94 | 6.56 | ||||
Φ | 28 | 1.32 | 1.65 | 2.06 | 2.46 | 2.86 | 3.65 | 4.42 | 5.57 | 7.41 | ||||
Φ | 29.2 | 1.38 | 1.72 | 2.14 | 2.57 | 2.98 | 3.81 | 4.62 | 5.82 | 7.75 | ||||
Φ | 31.8 | 1.51 | 1.88 | 2.34 | 2.80 | 3.25 | 4.16 | 5.04 | 6.36 | 8.49 | 10.55 | 12.53 | ||
Φ | 35.8 | 1.70 | 2.12 | 2.64 | 3.16 | 3.67 | 4.69 | 5.70 | 7.20 | 9.63 | 11.98 | 14.26 | ||
Φ | 38 | 1.80 | 2.25 | 2.80 | 3.35 | 3.90 | 4.99 | 6.07 | 7.66 | 10.25 | 12.77 | 15.22 | ||
Φ | 42 | 2.49 | 3.10 | 3.71 | 4.32 | 5.52 | 6.72 | 8.50 | 11.39 | 14.21 | 16.95 | |||
Φ | 48 | 2.85 | 3.55 | 4.25 | 4.95 | 6.34 | 7.71 | 9.75 | 13.09 | 16.36 | 19.55 | |||
Φ | 50.8 | 3.01 | 3.76 | 4.50 | 5.24 | 6.71 | 8.17 | 10.34 | 13.89 | 17.36 | 20.76 | 24.09 | ||
Φ | 60 | 3.56 | 4.45 | 5.33 | 6.20 | 7.95 | 9.68 | 12.26 | 16.50 | 20.66 | 24.75 | 28.77 | ||
Φ | 63 | 4.67 | 5.60 | 6.52 | 8.35 | 10.18 | 12.89 | 17.35 | 21.74 | 26.05 | 30.29 | |||
Φ | 70 | 6.22 | 7.25 | 9.29 | 11.32 | 14.36 | 19.34 | 24.25 | 29.09 | 33.85 | ||||
Φ | 76 | 6.76 | 7.88 | 10.10 | 12.31 | 15.61 | 21.04 | 26.40 | 31.69 | 36.90 | 42.03 | |||
Φ | 80 | 7.12 | 8.30 | 10.64 | 12.97 | 16.45 | 22.18 | 27.84 | 33.42 | 38.93 | 44.36 | |||
Φ | 85 | 7.57 | 8.82 | 11.31 | 13.79 | 17.49 | 23.60 | 29.63 | 35.59 | 41.47 | 47.28 | |||
Φ | 88.9 | 7.92 | 9.23 | 11.84 | 14.43 | 18.31 | 24.71 | 31.03 | 37.28 | 43.45 | 49.55 | |||
Φ | 101.6 | 9.06 | 10.56 | 13.55 | 16.52 | 20.97 | 28.32 | 35.59 | 42.78 | 49.91 | 56.96 | |||
Φ | 108 | 11.23 | 14.41 | 17.58 | 22.31 | 30.13 | 37.88 | 45.56 | 53.16 | 60.69 | ||||
Φ | 114 | 11.86 | 15.21 | 18.56 | 23.56 | 31.84 | 40.04 | 48.16 | 56.21 | 64.18 | ||||
Φ | 127 | 16.96 | 20.70 | 26.28 | 35.53 | 44.70 | 53.80 | 62.82 | 71.76 | |||||
Φ | 133 | 17.77 | 21.69 | 27.54 | 37.23 | 46.85 | 56.40 | 65.87 | 75.26 | |||||
Φ | 141 | 18.85 | 23.00 | 29.21 | 39.51 | 49.72 | 59.86 | 69.93 | 79.92 | |||||
Φ | 159 | 25.96 | 32.98 | 44.62 | 56.18 | 67.67 | 79.08 | 90.42 | ||||||
Φ | 168 | 34.86 | 47.17 | 59.41 | 71.57 | 83.65 | 95.66 | |||||||
Φ | 219 | 45.54 | 61.66 | 77.70 | 93.68 | 109.57 | 125.39 | |||||||
Standard | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | |
Actual | 0.32 | 0.40 | 0.50 | 0.60 | 0.70 | 0.90 | 1.10 | 1.40 | 1.90 | 2.40 | 2.90 | 3.40 | 3.90 |
