| Place of Origin: | WUXI,WENZHOU |
|---|---|
| Brand Name: | AOXIANG |
| Certification: | BV,SGS |
| Model Number: | 201 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiation |
| Packaging Details: | Plastic bags |
| Delivery Time: | 5-10 working days |
| Payment Terms: | D/A, L/C, T/T |
| Supply Ability: | 1500ton/Month |
| Name: | Stainless Steel Welded Tube | Thickness: | 0.16-3.0mm |
|---|---|---|---|
| OD: | 8-140mm | Length: | 6m Or As Customized |
| Grade: | 201 | Feature: | Acid Resistance |
| High Light: | welded stainless steel pipe,duplex stainless steel pipe |
||

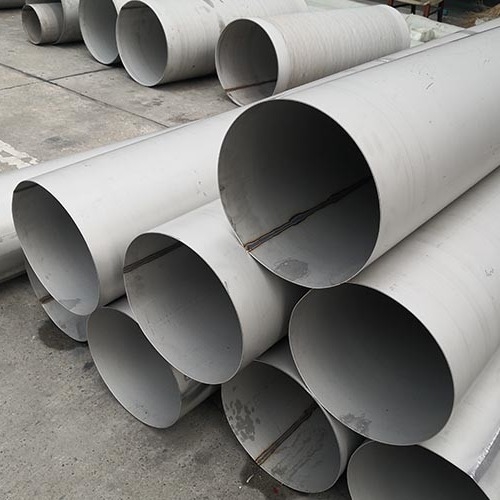

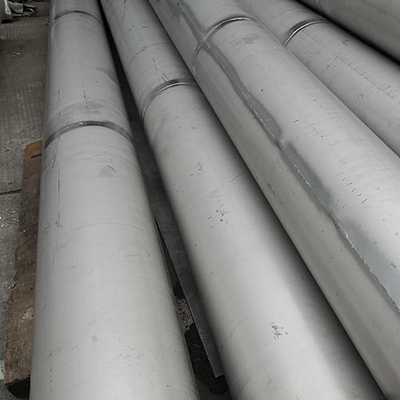

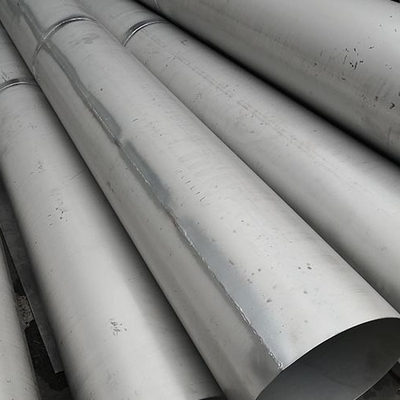

0.16-3.0mm 201 Stainless Steel Welded Tube Customized Acid Resistance
Stainless Steel Welded Tube Application
Liquid delivery,for food,dairy, and so on
Stainless Steel Welded Tube Details
Chemical composition(WT%)
(C):≤0.15 (Si):≤0.75 (Mn):5.5~7.50 (Cr):16.0~18.0 (N):≤0.25 (Ni):3.0~5.0 (P):≤0.060 (S) :≤0.030
physical property
strength of extension:100,000 to 180,000 psi;
yield strength:50,000 to 150,000 psi;
elongation :55 to 60%
modulus of elasticity:29,000,000 psi;
density :.280lbs/cubic inch(7.93g/cm3)
| Type | Stainless Steel Welded Tube |
| Thinckness | 0.3-4.5mm |
| Outer diameter | 12-220mm |
| Length | 6m or as customer's requirement |
| Finish | Polished, Pickled |
| Technology | welded |
| Standard | JIS, AISI, ASTM, GB, DIN, EN ,etc. |
| MOQ | 1 Ton |
| Application | decoration, industry, etc. |
| Certificate | SGS |
| Packaging | Standard exporting packing |
| Trade terms | FOB,CFR,CIF,CNF |
| Delivery time | Within 10 working days after receiving your deposit |
| Payment terms | 1. 30%T/T in advance, the balance against the B/L copy |
| 2. 30%T/T in advance, the balance against L/C original at sight | |
| 3. 100%L/C at sight |
Stainless Steel Welded Tube DIMENSION
| Specifications of stainless steel decorative pipe (mirror) | ||||||||||||||
| Standard | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | |
| Actual | 0.32 | 0.40 | 0.50 | 0.60 | 0.70 | 0.90 | 1.10 | 1.40 | 1.90 | 2.40 | 2.90 | 3.40 | 3.90 | |
| Φ | 12.3 | 0.57 | 0.71 | 0.88 | 1.05 | 1.21 | 1.53 | 1.84 | ||||||
| Φ | 12.7 | 0.59 | 0.74 | 0.91 | 1.09 | 1.26 | 1.91 | 1.91 | ||||||
| Φ | 15.3 | 0.72 | 0.89 | 1.11 | 1.32 | 1.53 | 2.33 | 2.33 | ||||||
| Φ | 16.0 | 0.75 | 0.93 | 1.16 | 1.38 | 1.60 | 2.45 | 2.45 | 3.06 | |||||
| Φ | 17.2 | 0.81 | 1.00 | 1.25 | 1.49 | 1.73 | 2.19 | 2.65 | 3.31 | |||||
| Φ | 18 | 0.85 | 1.05 | 1.31 | 1.56 | 1.81 | 2.30 | 2.78 | 3.47 | |||||
| Φ | 19 | 0.89 | 1.11 | 1.38 | 1.65 | 1.91 | 2.43 | 2.94 | 3.68 | 4.86 | ||||
| Φ | 20.2 | 0.95 | 1.18 | 1.47 | 1.76 | 2.04 | 2.60 | 3.14 | 3.93 | 5.20 | ||||
| Φ | 22 | 1.04 | 1.29 | 1.61 | 1.92 | 2.23 | 2.84 | 3.43 | 4.31 | 5.71 | ||||
| Φ | 25 | 1.18 | 1.47 | 1.83 | 2.19 | 2.54 | 3.24 | 3.93 | 4.94 | 6.56 | ||||
| Φ | 28 | 1.32 | 1.65 | 2.06 | 2.46 | 2.86 | 3.65 | 4.42 | 5.57 | 7.41 | ||||
| Φ | 29.2 | 1.38 | 1.72 | 2.14 | 2.57 | 2.98 | 3.81 | 4.62 | 5.82 | 7.75 | ||||
| Φ | 31.8 | 1.51 | 1.88 | 2.34 | 2.80 | 3.25 | 4.16 | 5.04 | 6.36 | 8.49 | 10.55 | 12.53 | ||
| Φ | 35.8 | 1.70 | 2.12 | 2.64 | 3.16 | 3.67 | 4.69 | 5.70 | 7.20 | 9.63 | 11.98 | 14.26 | ||
| Φ | 38 | 1.80 | 2.25 | 2.80 | 3.35 | 3.90 | 4.99 | 6.07 | 7.66 | 10.25 | 12.77 | 15.22 | ||
| Φ | 42 | 2.49 | 3.10 | 3.71 | 4.32 | 5.52 | 6.72 | 8.50 | 11.39 | 14.21 | 16.95 | |||
| Φ | 48 | 2.85 | 3.55 | 4.25 | 4.95 | 6.34 | 7.71 | 9.75 | 13.09 | 16.36 | 19.55 | |||
| Φ | 50.8 | 3.01 | 3.76 | 4.50 | 5.24 | 6.71 | 8.17 | 10.34 | 13.89 | 17.36 | 20.76 | 24.09 | ||
| Φ | 60 | 3.56 | 4.45 | 5.33 | 6.20 | 7.95 | 9.68 | 12.26 | 16.50 | 20.66 | 24.75 | 28.77 | ||
| Φ | 63 | 4.67 | 5.60 | 6.52 | 8.35 | 10.18 | 12.89 | 17.35 | 21.74 | 26.05 | 30.29 | |||
| Φ | 70 | 6.22 | 7.25 | 9.29 | 11.32 | 14.36 | 19.34 | 24.25 | 29.09 | 33.85 | ||||
| Φ | 76 | 6.76 | 7.88 | 10.10 | 12.31 | 15.61 | 21.04 | 26.40 | 31.69 | 36.90 | 42.03 | |||
| Φ | 80 | 7.12 | 8.30 | 10.64 | 12.97 | 16.45 | 22.18 | 27.84 | 33.42 | 38.93 | 44.36 | |||
| Φ | 85 | 7.57 | 8.82 | 11.31 | 13.79 | 17.49 | 23.60 | 29.63 | 35.59 | 41.47 | 47.28 | |||
| Φ | 88.9 | 7.92 | 9.23 | 11.84 | 14.43 | 18.31 | 24.71 | 31.03 | 37.28 | 43.45 | 49.55 | |||
| Φ | 101.6 | 9.06 | 10.56 | 13.55 | 16.52 | 20.97 | 28.32 | 35.59 | 42.78 | 49.91 | 56.96 | |||
| Φ | 108 | 11.23 | 14.41 | 17.58 | 22.31 | 30.13 | 37.88 | 45.56 | 53.16 | 60.69 | ||||
| Φ | 114 | 11.86 | 15.21 | 18.56 | 23.56 | 31.84 | 40.04 | 48.16 | 56.21 | 64.18 | ||||
| Φ | 127 | 16.96 | 20.70 | 26.28 | 35.53 | 44.70 | 53.80 | 62.82 | 71.76 | |||||
| Φ | 133 | 17.77 | 21.69 | 27.54 | 37.23 | 46.85 | 56.40 | 65.87 | 75.26 | |||||
| Φ | 141 | 18.85 | 23.00 | 29.21 | 39.51 | 49.72 | 59.86 | 69.93 | 79.92 | |||||
| Φ | 159 | 25.96 | 32.98 | 44.62 | 56.18 | 67.67 | 79.08 | 90.42 | ||||||
| Φ | 168 | 34.86 | 47.17 | 59.41 | 71.57 | 83.65 | 95.66 | |||||||
| Φ | 219 | 45.54 | 61.66 | 77.70 | 93.68 | 109.57 | 125.39 | |||||||
| Standard | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | |
| Actual | 0.32 | 0.40 | 0.50 | 0.60 | 0.70 | 0.90 | 1.10 | 1.40 | 1.90 | 2.40 | 2.90 | 3.40 | 3.90 | |
