2507/1.4410 Stainless Steel Sheet Coil ASTM/ASME A240 - UNS S32750

Place of Origin Shanghai
Brand Name TISCO ,BAOSTEEL
Certification ISO,BV
Model Number 2507/1.4410
Minimum Order Quantity Negotiable
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement.
Delivery Time 5-10 working days
Payment Terms L/C, T/T, Western Union, D/A
Supply Ability 2000 TON/Month
Product Details
Name Stainless Steel Sheet Coil Standard ASTM/ASME A240 - UNS S32750
Color Natural Shipping Air,Sea
Edge Slit Edge Feature Durable
High Light

stainless steel sheet roll

,

cold rolled steel sheet in coil

Leave a Message
Product Description

2507/1.4410 Stainless Steel Sheet Coil ASTM/ASME A240 - UNS S32750


Stainless Steel Sheet Coil Introduction


Duplex 2507 (UNS S32750) is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. The steel has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum, and nickel levels provide excellent resistance to pitting, crevice, and general corrosion.

1. Stainless Steel Sheet Coil Usage:


(1) Automotive:Automotive trim and molding/Difficult-to-form exhaust-system components, tubular manifolds, mufflers/Exhaust manifold and other exhaust-system components, catalytic converter shells

(2) Construction: Gutters and downspouts, roofing, siding

(3) Kitchenware: Cooking utensils, dishwashers, ovens, range hoods, refrigerators, skewers

(4) Chemical processing: Oil refinery equipment, oil burner and heater parts

(5) Appliances: Hot water tanks, residential furnaces



2. Stainless Steel Sheet Coil  Chemical Properties



C Cr Ni Mo N Others
0.020 25 7 4.0 .27 S=0.001


Mechanical Properties


1. 2507 duplex stainless steel pipe mechanical properties at room temperature

Pipe: thickness≤20mm ;δb/MPa:800-1000 ,δ0.2/MPa:≥550 ,δ5/%:≥25 ,(HV):290

2. 2507 duplex stainless steel plate in the mechanical properties of room temperature of -200 ℃ :

/℃ δb/MPa
Room Temperature ≥530
Sheet 100 ≥450
200 ≥400

3. Mechanical properties of 2507 large-diameter seamless tube


Dia*thickness       δb/MPa  δ0.2/MPa   δ5/% (HV)
273.0mm×4.19mm   894      644          40      284
323.9mm×4.57mm   858      662          45       270
406.4mm×4.74mm   854      657          41       272

3. Processing

Hot forming
2507 should be hot worked between 1875°F and 2250°F. This should be followed by a solution anneal at 1925°F minimum and a rapid air or water quench.



Cold Forming
Most of the common stainless steel forming methods can be used for cold working 2507. The alloy has a higher yield strength and lower ductility than the austenitic steels so fabricators may find that higher forming forces, increased radius of bending, and increased allowance for springback are necessary. Deep drawing, stretch forming, and similar processes are more difficult to perform on 2507 than on an austenitic stainless steel. When forming requires more than 10% cold deformation, a solution anneal and quench are recommended.



Heat Treatment
2507 should be solution annealed and quenched after either hot or cold forming. Solution annealing should be done at a minimum of 1925°F. Annealing should be followed immediately by a rapid air or water quench. To obtain maximum corrosion resistance, heat treated products should be pickled and rinsed.



Welding
2507 possesses good weldability and can be joined to itself or other materials by shielded metal arc welding (SMAW), gas tungsten arc welding (GTAW), plasma arc welding (PAW), flux cored wire (FCW), or submerged arc welding (SAW). 2507/P100 filler metal is suggested when welding 2507 because it will produce the appropriate duplex weld structure.

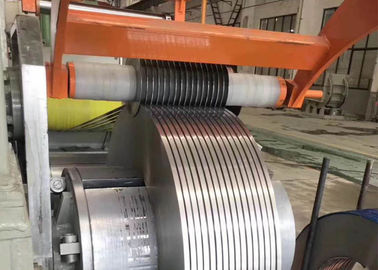

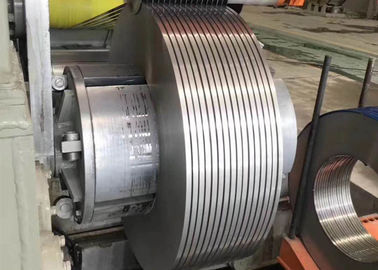

Stainless Steel Sheet Coil Pictures



2507/1.4410 Stainless Steel Sheet Coil ASTM/ASME A240 - UNS S32750 0
