| Place of Origin: | Jiangsu |
|---|---|
| Brand Name: | XINFUTIAN |
| Certification: | ISO,BV |
| Model Number: | 65#,70#,82b high carbon spring wire |
| Minimum Order Quantity: | 5 ton |
| Price: | Negotiation |
| Packaging Details: | Standard Seaworthy package or as the customer's requirement |
| Delivery Time: | 5-10 working days |
| Supply Ability: | 1000 Ton Per Month |
| Product Name: | Carbon Spring Steel Wires | Wire: | 0.01-10mm |
|---|---|---|---|
| Wire Gauge: | 0.05-20mm Or Customized | Tolerance: | ±1% |
| C Content (%): | Standard Level | Feature: | Acid-resisting, Heat-resisting |
| High Light: | 82b carbon spring steel wire,SGS carbon spring steel wire,10mm carbon spring steel wire |
||

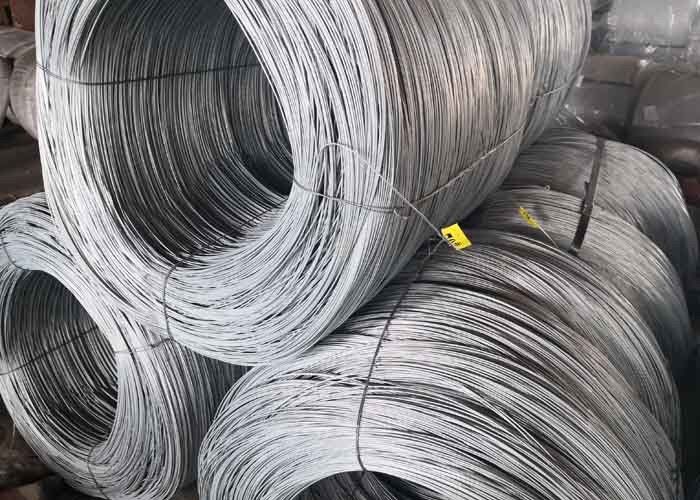

High tensile strength High Quality 82B Carbon spring steel wires
| Material | Inconel,Hastelloy,Monel,Incoloy,GH,Precision alloy,Stainless steel |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
| Grade |
Inconel:Inconel600(N06600 GH3600),Inconel601(N06601 GH3600),Inconel625(N06625 GH3625), InconelX-750(N07750 GH4145),Inconel 718(N07718 GH4169),Inconel690 |
|
Hastelloy:Hastelloy B-2,Hastelloy C,Hastelloy C-267(N10276),Hastelloy C-4, Hastelloy C-22(N06022),Hastelloy G30(N06030) |
|
| Monel:Monel 400(N04400),Monel K500(N05500) | |
|
Incoloy:Incoloy A-286(GH2132 N662),Incoloy800 800H 800HT,Incoloy725, Incoloy825,Incoloy925,Incoloy926(N08926 1.4529) |
|
|
GH:GH2132(N66286 A286 Gr6),GH3625(Inconel625 UNS N0), GH4169(Inconel718 UNS N0),GH3030,GH3039,GH4033,GH3128 |
|
| Precision alloy:4J36,4J29,1J79 | |
| Stainless steel:Alloy 20(N08020),904L(N08904),254SMo(F44 S31254) | |
| Other | |
| Specification | Wire: 0.01-10mm |
| Strip: 0.05*5.0-5.0*250mm | |
| Bar: φ4-50mm;Length 2000-5000mm | |
| Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm | |
| Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm | |
| Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. |
| 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. | |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
| Application |
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |
| Packaging | 1. cases packed in wooden cases |
| 2. paper packaging | |
| 3. plastic packing | |
| 4. foam packaging | |
| 5.Packaging according to customer requirements or products |
| Carbon spring steel wires | |||
| Suitable for using the springs in machinery | GB4357-1989 | ||
| Diameter mm | Tensile Strength ,MPa | ||
| B | C | D | |
| 0.22 | 2110-2500 | 2350-2750 | 2690-3090 |
| 0.25 | 2060-2450 | 2300-2700 | 2640-3040 |
| 0.28 | 2010-2400 | 2300-2700 | 2640-3040 |
| 0.30 | 2010-2400 | 2300-2700 | 2640-3040 |
| 0.32 | 1960-2350 | 2250-2650 | 2600-2990 |
| 0.35 | 1960-2350 | 2250-2650 | 2600-2990 |
| 0.40 | 1910-2300 | 2250-2650 | 2600-2990 |
| 0.45 | 1860-2260 | 2200-2600 | 2550-2940 |
| 0.50 | 1860-2260 | 2200-2600 | 2550-2940 |
| 0.55 | 1810-2210 | 2150-2550 | 2500-2890 |
| 0.60 | 1760-2160 | 2110-2500 | 2450-2840 |
| 0.63 | 1760-2160 | 2110-2500 | 2450-2840 |
| 0.70 | 1710-2110 | 2060-2450 | 2450-2840 |
| 0.80 | 1710-2060 | 2010-2400 | 2400-2840 |
| 0.90 | 1710-2060 | 2010-2350 | 2350-2750 |
| 1.00 | 1660-2010 | 1960-2300 | 2300-2690 |
| 1.20 | 1620-1960 | 1910-2250 | 2250-2550 |
| 1.40 | 1620-1910 | 1860-2210 | 2150-2450 |
| 1.60 | 1570-1860 | 1810-2160 | 2100-2400 |
| 1.80 | 1520-1810 | 1760-2110 | 2010-2300 |
| 2.00 | 1470-1760 | 1710-2010 | 1910-2200 |
| 2.20 | 1420-1710 | 1660-1960 | 1810-2110 |
| 2.50 | 1420-1710 | 1660-1960 | 1760-2060 |
| 2.80 | 1370-1670 | 1620-1910 | 1710-2010 |
| 3.00 | 1370-1670 | 1570-1860 | 1710-1960 |
| 3.20 | 1320-1620 | 1570-1810 | 1660-1910 |
| 3.50 | 1320-1620 | 1570-1810 | 1660-1910 |
| 4.00 | 1320-1620 | 1570-1760 | 1620-1860 |
| 4.50 | 1320-1570 | 1520-1760 | 1620-1860 |
| 5.00 | 1320-1570 | 1470-1710 | 1570-1810 |
| 5.50 | 1270-1520 | 1470-1710 | 1570-1810 |
| 6.00 | 1220-1470 | 1420-1660 | 1520-1760 |
Q1. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. or LC at sight.
Q2. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it within 30days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5: How do you make our business long-term and good relationship?
1. Timely, accurate and detailed inquiry reply 2. we patiently answer your questions
